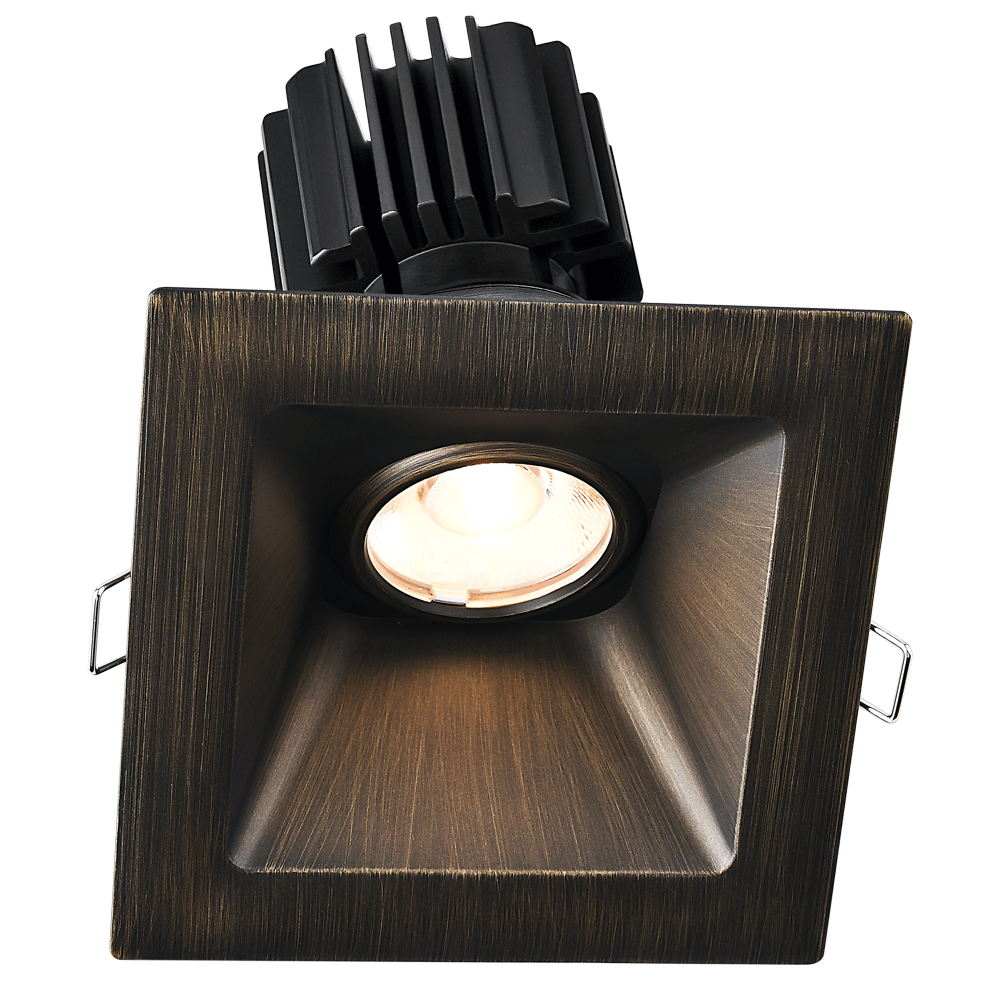

Tangra 4" Gimbal Square Sloped Wide Bronze Trim Reflector Clear glass 36° 30K CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-SSW-BR-RC36-3K98
Trim Type: Wide Bronze Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Clear glass
CRI: 98
Beam Angle: 36 Degree

See More Spec

$138.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SSW-BR-RC36-3K98

The Tangra 4" Gimbal Square Sloped Wide Downlight with 120V Commercial Driver is built for commercial environments that demand flexible lighting, wide coverage, and consistent performance.

Designed for sloped ceilings and complex layouts, this fixture features a wide beam spread combined with an adjustable gimbal, allowing for both broad illumination and precise directional control. It’s ideal for highlighting displays, improving workspace visibility, or delivering even lighting across open commercial areas.

Equipped with an integrated 120V commercial-grade driver, this downlight ensures stable output and reliable operation, making it a solid choice for retail, office, hospitality, and other high-traffic applications.

Built to meet professional standards:

Integrated 120V commercial driver for dependable performance
Wide beam angle for enhanced light distribution across larger spaces
Adjustable gimbal for targeted, directional lighting
Ultra-thin housing for easy installation in tight plenum spaces
Modern square trim for a clean, architectural finish

Ideal for commercial builds, tenant improvements, and lighting upgrades, the Tangra 4" Gimbal Square Downlight delivers the coverage, control, and durability professionals expect.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SSW-BR-RC36-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 4 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 36 Degree
Trim Type Wide Bronze Trim
Projected Life 70% Light Output at 50000 Hours
Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 4" Gimbal Square Sloped Wide Bronze Trim Reflector Clear glass 36° 30K CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
