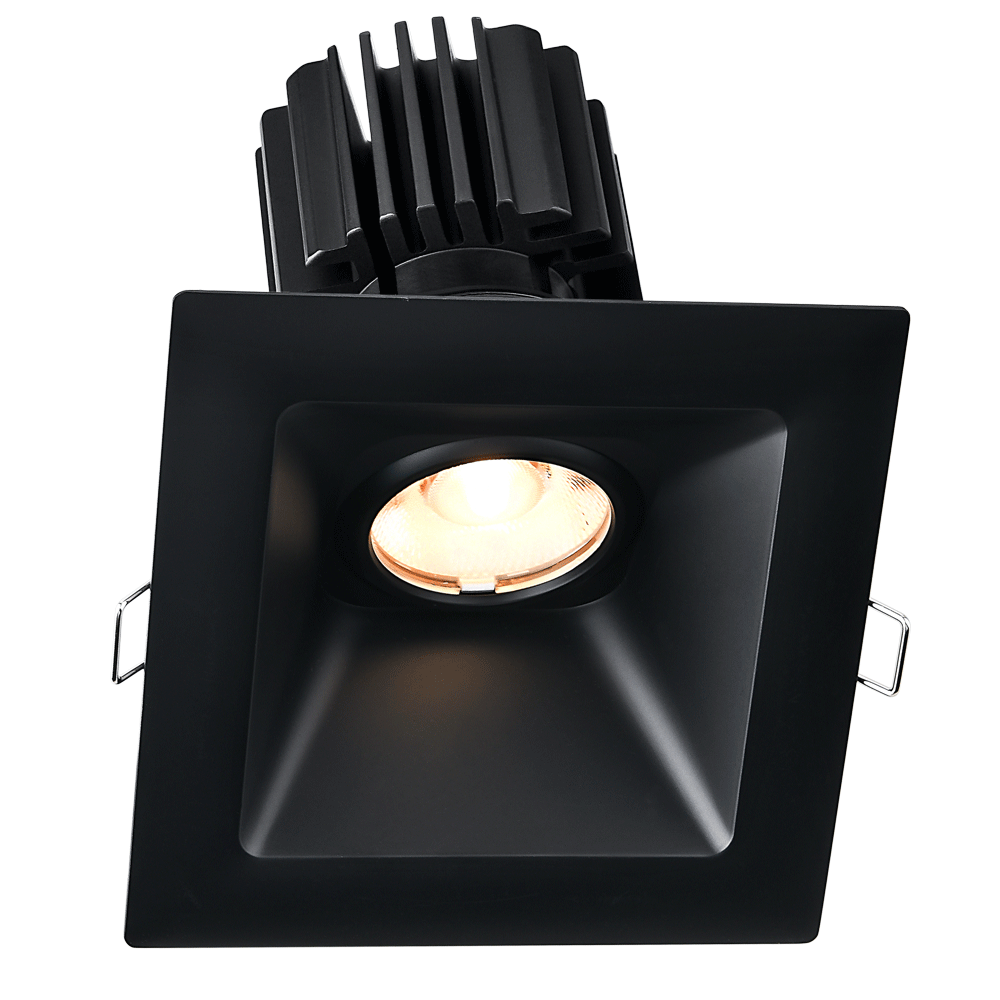

Tangra 4" Gimbal Square Sloped Wide Black Trim Reflector Frosted glass 60° 30K CRI98 with 120V Residential Driver
- Brand: Lotus LED Lights
- Item number: L3G-SSW-BK-RF60-3K98
- Trim Type: Wide Black Trim
- Driver: 120V Triac Dimmable Residential
- Color Temperature: 3000 Kelvin
- Lens/Glass Color: Frosted glass
- CRI: 98
- Beam Angle: 60 Degree
Model: L3G-SSW-BK-RF60-3K98
The Tangra 4" Gimbal Square Sloped Wide Downlight with 120V Residential Driver is designed for modern homes that need flexible, wide-angle lighting—especially in spaces where standard fixtures fall short.
Perfect for sloped ceilings and open layouts, this fixture combines a wide beam spread with an adjustable gimbal, giving you better light coverage while still allowing you to direct illumination exactly where it’s needed. Whether you’re upgrading a living room, kitchen, or hallway, it delivers balanced, comfortable lighting without overcomplicating the setup.
With its integrated 120V residential driver, installation is quick and straightforward, connecting directly to standard home electrical systems—no extra components, no unnecessary hassle.
Built for real residential use:
Integrated 120V residential driver for simple, direct installation
Wide beam design for broader, more even light distribution
Adjustable gimbal for directional lighting control
Ultra-thin housing fits tight ceiling spaces with ease
Modern square trim for a clean, architectural look
Ideal for homeowners, remodels, and residential contractors, the Tangra 4" Gimbal Square Downlight delivers reliable performance, wider coverage, and a design that fits seamlessly into any home.
Specification Document
Download Full Datasheet
- Brand Lotus LED Lights
- Item number L3G-SSW-BK-RF60-3K98
- Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
- Voltage 120 Volt
- Driver 120V Triac Dimmable Residential
- Power 11W / 15W user selectable with Lotus Tangra drivers
- Fixture input 20-40V DC Max 350 mA Constant Current
- Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
- J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
- Temperature -40°F (-40°C) to +113°F (+45°C)
- Downlight Size 4 Inch
- Lens/Glass Color Frosted glass
- Color Temperature 3000 Kelvin
- Lumen up to 1600 lm at 3000K CRI95
- CRI 98
- Beam Angle 60 Degree
- Trim Type Wide Black Trim
- Projected Life 70% Light Output at 50000 Hours
- Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing
- Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
- Wet Location Yes
- Safety Rating Air Tight
- Compliance FCC
- Shape Square
- Driver 120V Triac Dimmable Residential
Warranty
Manufacturer Warranty Information
Tangra 4" Gimbal Square Sloped Wide Black Trim Reflector Frosted glass 60° 30K CRI98 with 120V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
