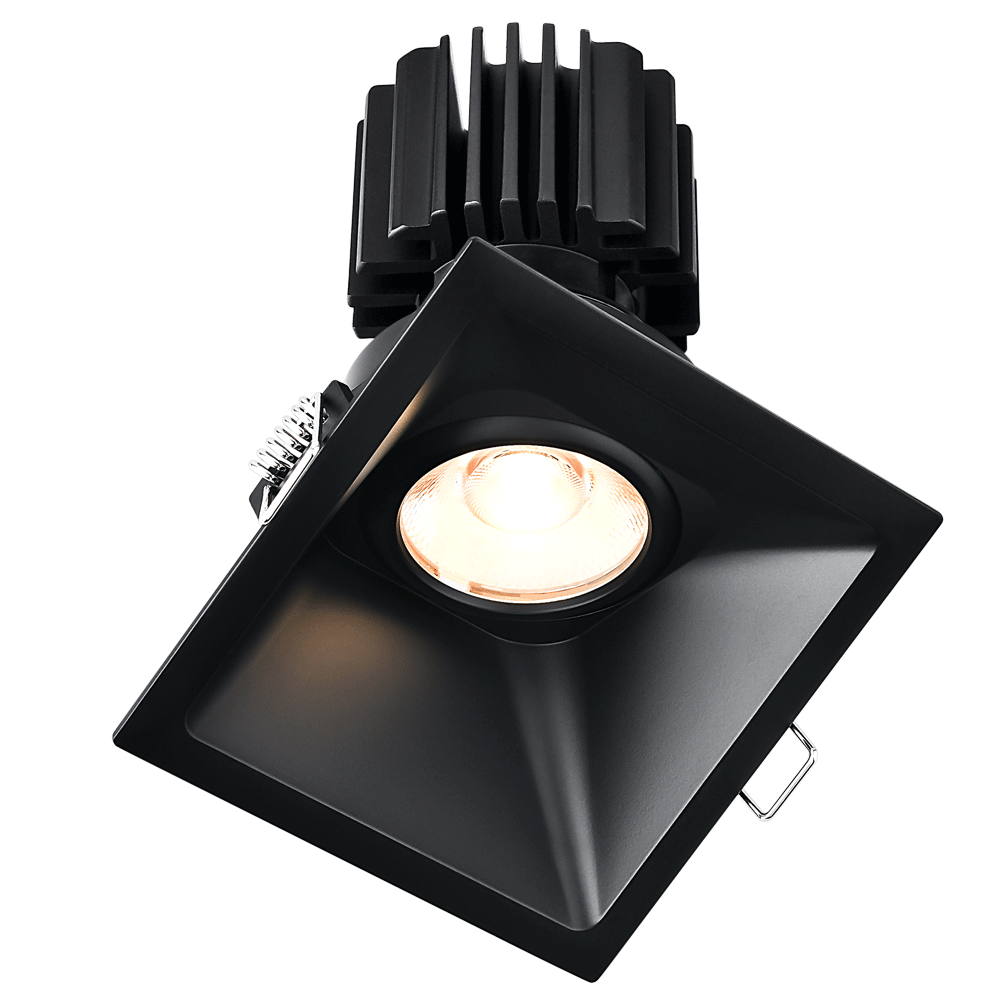

Tangra 4" Gimbal Square Sloped Thin Black Trim Reflector Frosted glass 50° 30K CRI98 with 120V Commercial Driver
- Brand: Lotus LED Lights
- Item number: L3G-SST-BK-RF50-3K98
- Trim Type: Thin Black Trim
- Driver: 120V Triac Dimmable Commercial
- Color Temperature: 3000 Kelvin
- Lens/Glass Color: Frosted glass
- CRI: 98
- Beam Angle: 50 Degree
Model: L3G-SST-BK-RF50-3K98
The Tangra 4" Gimbal Square Sloped Thin Downlight with 120V Commercial Driver is built for commercial spaces that demand precision lighting, clean design, and reliable performance—especially in tight or challenging ceiling conditions.
Designed for sloped ceilings and compact plenum spaces, this fixture features an ultra-thin profile that allows for installation where traditional recessed lighting won’t fit. The adjustable gimbal provides targeted, directional lighting, making it ideal for highlighting displays, work areas, and architectural features in retail, office, and hospitality environments.
Equipped with an integrated 120V commercial-grade driver, this downlight ensures consistent output and dependable operation across a wide range of professional applications.
Engineered for commercial performance:
Integrated 120V commercial driver for stable, reliable operation
Ultra-thin housing for installation in tight ceiling spaces
Adjustable gimbal for precise, directional illumination
Modern square trim for a clean, architectural finish
Designed for sloped ceilings and complex layouts
Ideal for commercial builds, tenant improvements, and lighting upgrades, the Tangra 4" Gimbal Square Thin Downlight delivers the performance, flexibility, and professional finish required for high-quality installations.
Specification Document
- Brand Lotus LED Lights
- Item number L3G-SST-BK-RF50-3K98
- Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
- Voltage 120 Volt
- Driver 120V Triac Dimmable Commercial
- Power 11W / 15W user selectable with Lotus Tangra drivers
- Fixture input 20-40V DC Max 350 mA Constant Current
- Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
- J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cabl
- Temperature -40°F (-40°C) to +113°F (+45°C)
- Downlight Size 4 Inch
- Lens/Glass Color Frosted glass
- Color Temperature 3000 Kelvin
- Lumen up to 1600 lm at 3000K CRI95
- CRI 98
- Beam Angle 50 Degree
- Trim Type Thin Black Trim
- Projected Life 70% Light Output at 50000 Hours
- Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing
- Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
- Wet Location Yes
- Safety Rating Air Tight
- Compliance FCC
- Shape Square
- Driver 120V Triac Dimmable Commercial
Warranty
Manufacturer Warranty Information
Tangra 4" Gimbal Square Sloped Thin Black Trim Reflector Frosted glass 50° 30K CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
