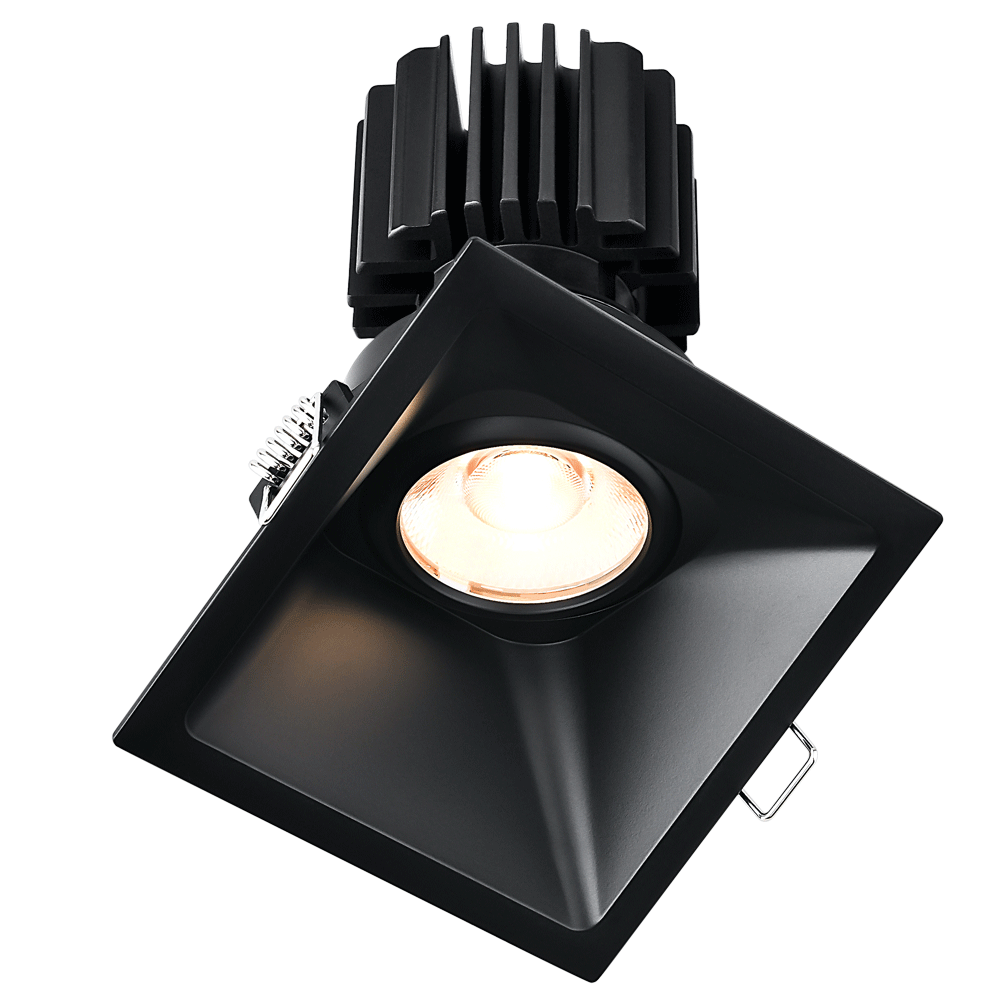

Tangra 4" Gimbal Square Sloped Thin Black Trim Lens Black 24° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver

  • Brand: Lotus LED Lights
  • Item number: L3G-SST-BK-LB24-4C90
  • Trim Type: Thin Black Trim
  • Driver: 120-347V 0-10V Dimmable Residential
  • Color Temperature: 3500 Kelvin to 2700 Kelvin
  • Bulb Color: CCT Switchable
  • Lens/Glass Color: Lens Black
  • CRI: 90
See More Spec
  • $138.60


Shipping: 4 to 5 business days.

  BUY BULK & SAVE!

Model: L3G-SST-BK-LB24-4C90

The Tangra 4" Gimbal Square Sloped Thin Downlight with 120–347V 0–10V Dimmable Residential Driver is designed for modern residential spaces that need flexibility, precision, and clean, low-profile lighting.

Perfect for sloped ceilings and tight ceiling clearances, this fixture features an ultra-thin design that fits where traditional recessed lights can’t. The adjustable gimbal allows you to direct light exactly where it’s needed—whether you’re brightening living spaces, kitchens, hallways, or highlighting key features in your home.

With its 120–347V input range, this downlight adapts easily to various residential and multi-unit electrical systems. The integrated 0–10V dimmable driver provides smooth, flicker-free dimming, giving you full control over brightness and ambiance throughout the day.

Built for real homes and real-life use:

120–347V wide voltage compatibility for flexible installation
0–10V dimmable residential driver for smooth, adjustable lighting
Ultra-thin housing ideal for tight ceiling spaces
Adjustable gimbal for precise, directional illumination
Modern square trim for a clean, architectural look
Designed for sloped ceilings and angled layouts

Ideal for residential upgrades, condos, and remodels, the Tangra 4" Gimbal Square Thin Downlight delivers reliable performance, modern style, and lighting control that fits your space perfectly.

Specification Document

Product Identity
  • Brand Lotus LED Lights
  • Item number L3G-SST-BK-LB24-4C90
  • Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
Electrical
  • Voltage 120-347 Volt
  • Driver 120-347V 0-10V Dimmable Residential
  • Power 11W / 15W user selectable with Lotus Tangra drivers
  • Fixture input 20-40V DC Max 350 mA Constant Current
  • Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
  • J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cabl
  • Temperature -40°F (-40°C) to +113°F (+45°C)
Size & Weight / Finish
  • Downlight Size 4 Inch
  • Lens/Glass Color Lens Black
Light Output & Performance
  • Color Temperature 3500 Kelvin to 2700 Kelvin
  • Bulb Color CCT Switchable
  • Lumen up to 1600 lm at 3000K CRI95
  • CRI 90
  • Beam Angle 24 Degree
  • Trim Type Thin Black Trim
  • Projected Life 70% Light Output at 50000 Hours
  • Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing
Certification
  • Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
  • Wet Location Yes
  • Safety Rating Air Tight
  • Compliance FCC
Wireless Connection
Type
  • Shape Square
Included
  • Driver 120-347V 0-10V Dimmable Residential
Suitable

Warranty

Manufacturer Warranty Information

Tangra 4" Gimbal Square Sloped Thin Black Trim Lens Black 24° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
