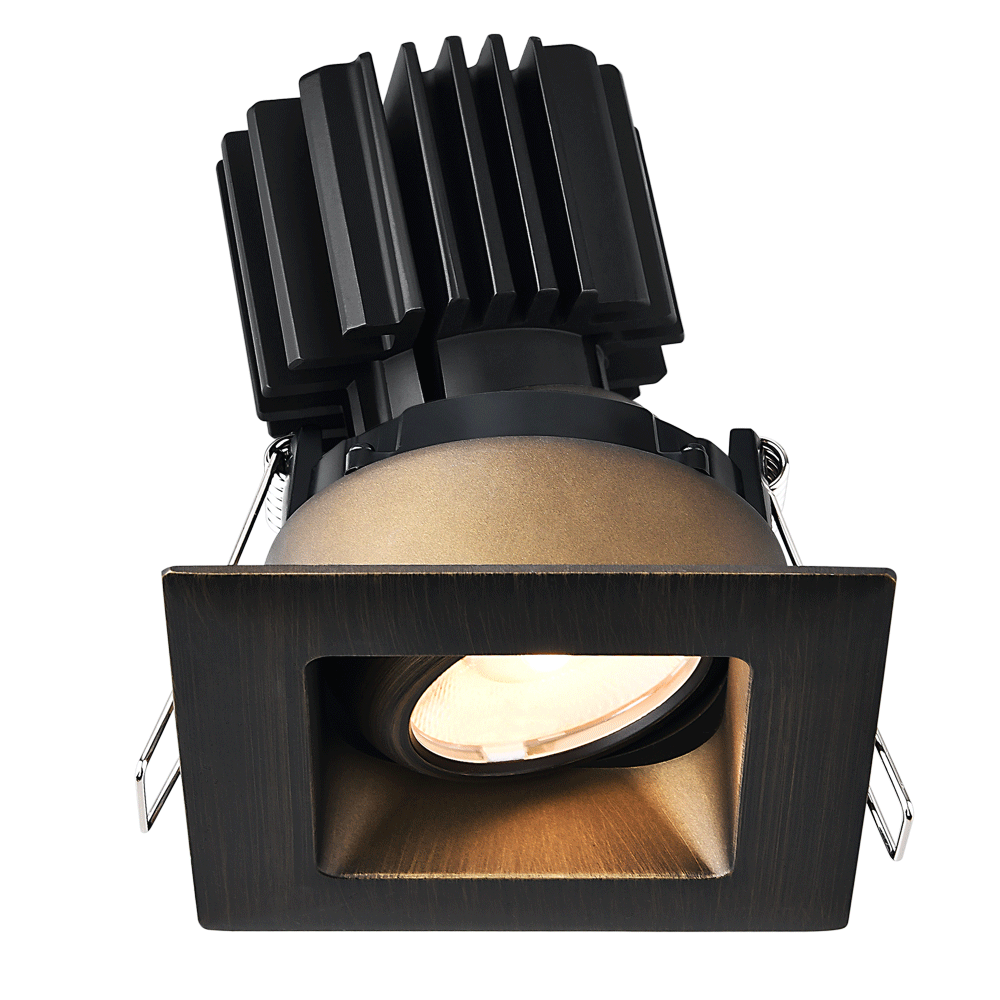

Tangra 3" Gimbal Square Recessed Wide Bronze Trim Reflector Semi-frosted glass 36° 30K CRI98 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3G-SRW-BR-RS36-3K98
Trim Type: Wide Bronze Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3000 Kelvin
Lens/Glass Color: Semi-frosted glass
CRI: 98
Beam Angle: 36 Degree

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SRW-BR-RS36-3K98

Equipped with a 120–347V universal input residential-grade driver, this fixture provides installation versatility across varying voltage requirements. The integrated 0–10V dimming capability ensures smooth, flicker-free performance and seamless compatibility with advanced home automation systems, lighting control panels, and dimming interfaces.

Ideal for luxury homes, condominiums, and multi-unit residential developments, the Tangra 3" Gimbal Square Recessed Wide Trim combines architectural styling, flexible voltage compatibility, and reliable dimming performance in a specification-ready residential lighting solution.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SRW-BR-RS36-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 36 Degree
Trim Type Wide Bronze Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Wide Bronze Trim Reflector Semi-frosted glass 36° 30K CRI98 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
