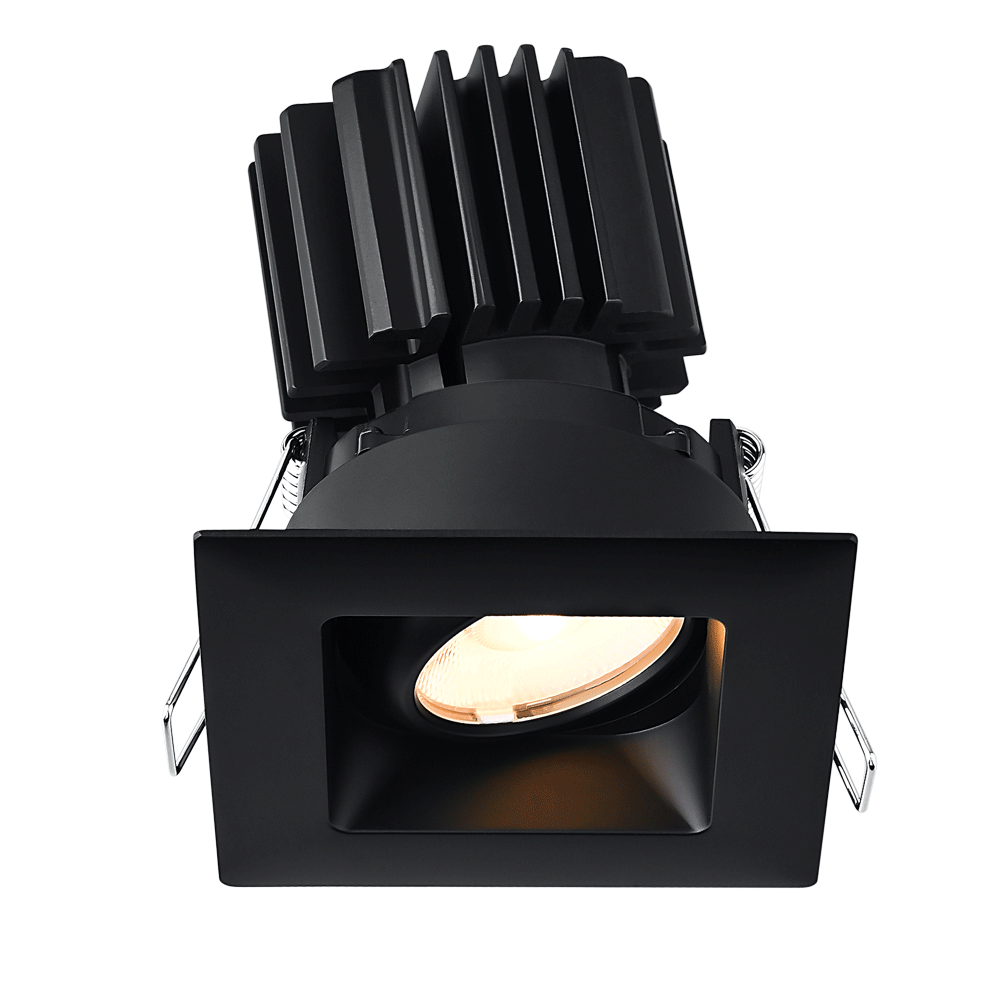

Tangra 3" Gimbal Square Recessed Wide Black Trim Reflector Frosted glass 60° 30K CRI98 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-SRW-BK-RF60-3K98
Trim Type: Wide Black Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Frosted glass
CRI: 98
Beam Angle: 60 Degree

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SRW-BK-RF60-3K98

Powered by a 120–347V universal input, 0–10V dimmable commercial-grade driver, this fixture is designed for specification-driven installations requiring voltage flexibility and advanced lighting control compatibility. The wide voltage range supports multi-regional commercial projects, while the integrated 0–10V dimming interface enables seamless integration with building management systems, daylight harvesting controls, occupancy sensors, and centralized lighting control platforms.

Built for reliability, efficiency, and code-compliant performance, the driver ensures stable output, smooth flicker-free dimming, and dependable long-term operation in retail, office, hospitality, healthcare, and institutional applications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SRW-BK-RF60-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 60 Degree
Trim Type Wide Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Wide Black Trim Reflector Frosted glass 60° 30K CRI98 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
