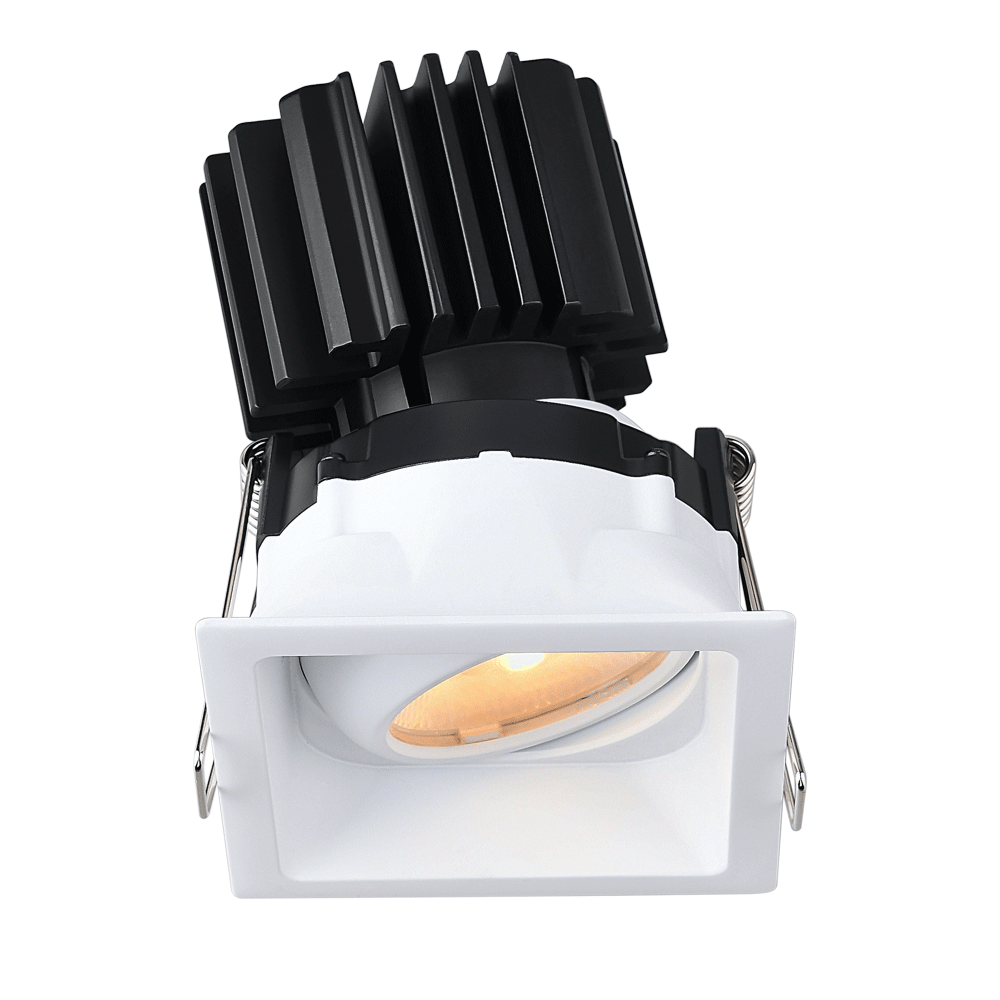

Tangra 3" Gimbal Square Recessed Thin White Trim Reflector Frosted glass 60° 30K CRI95 with 120V Residential Driver

Tangra 3" Gimbal Square Recessed Thin White Trim Reflector Frosted glass 60° 30K CRI95 with 120V Residential Driver

Brand: Lotus LED Lights
Item Number: L3G-SRT-WH-RF60-3K95
Trim Type: Thin WhiteTrim Reflector
Driver: 120V Triac Dimmable Residential
Color Temperature: 3000 Kelvin
Lens/Glass Color: Frosted glass
CRI: 95
Beam Angle: 60 Degree

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Powered by a 120V residential driver, the Tangra 3" Fixed Round Deep Regressed Downlight features a sleek, architectural design with excellent glare control for modern residential interiors. It allows for straightforward installation and reliable performance in standard residential applications. this downlight is ideal for kitchens, living areas, hallways, and bedrooms.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3G-SRT-WH-RF60-3K95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 60 Degree
Trim Type Thin WhiteTrim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Thin White Trim Reflector Frosted glass 60° 30K CRI95 with 120V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
