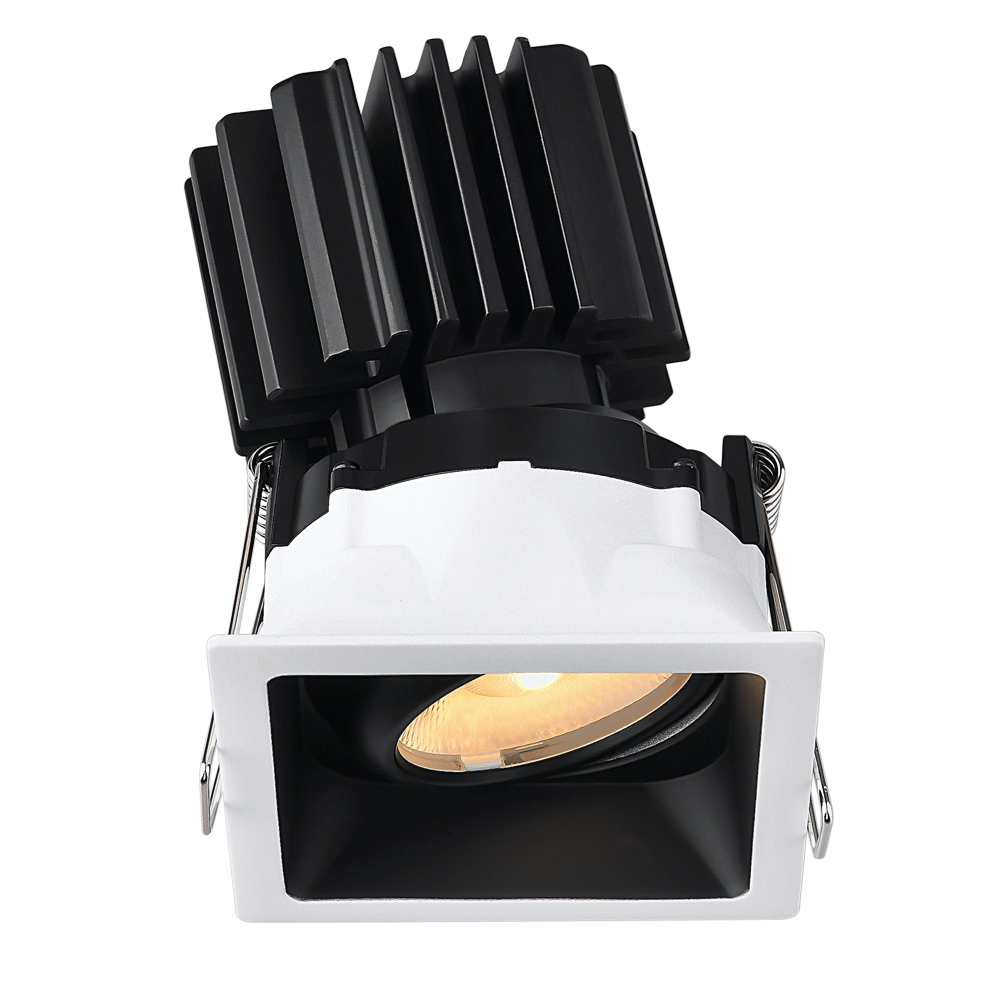

Tangra 3" Gimbal Square Recessed Thin White-Black Duo Trim Reflector Frosted glass 50° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3G-SRT-WB-RF50-4C90
Trim Type: Thin White-Black Duo Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 90

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SRT-WB-RF50-4C90

The Tangra 3" Gimbal Square Recessed Thin Trim Downlight with 120–347V 0–10V Dimmable Residential Driver combines a crisp, slim-trim ceiling detail with smooth, adaptable lighting control for modern homes. Its square aperture adds a contemporary architectural touch, while the adjustable gimbal allows light to be directed for task areas, accent features, or layered ambient lighting. Ideal for living spaces, kitchens, and bedrooms, the Tangra delivers consistent performance, quiet operation, and reliable 0–10V dimming across a wide voltage range—supporting comfortable, flexible lighting for everyday residential living.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SRT-WB-RF50-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 50 Degree
Trim Type Thin White-Black Duo Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Thin White-Black Duo Trim Reflector Frosted glass 50° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
