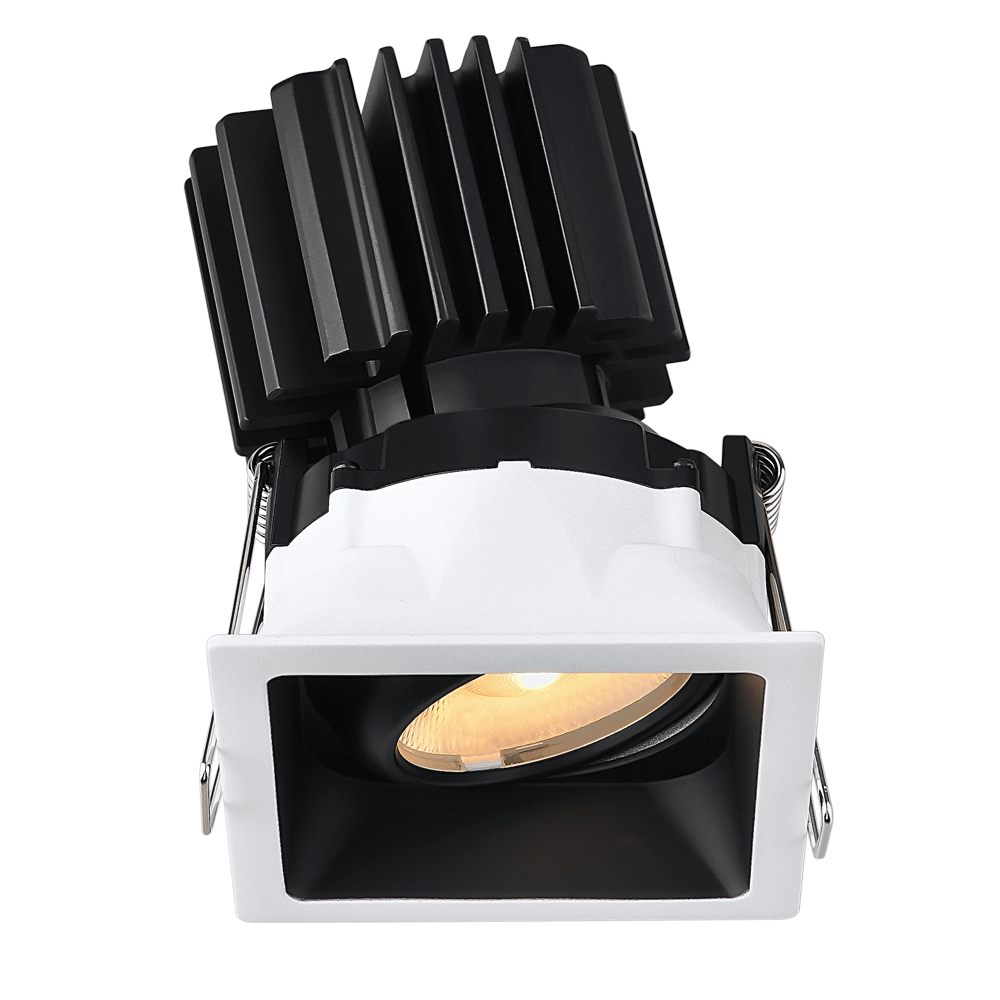

Tangra 3" Gimbal Square Recessed Thin White-Black Duo Trim Reflector Clear glass 20° 5CCT CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-SRT-WB-RC20-5C98
Trim Type: Thin White-Black Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear glass
CRI: 98

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SRT-WB-RC20-5C98

The Tangra 3" Gimbal Square Recessed Thin Trim Downlight with 120V Commercial Driver delivers a clean, defined ceiling appearance with precise directional control for commercial applications. The slim square trim provides a refined architectural detail, while the adjustable gimbal enables accurate aiming for accent, task, and feature lighting. Designed for offices, hospitality, and retail environments, the Tangra offers consistent light output, quiet operation, and dependable performance through a commercial-grade driver—supporting reliable, long-term use in professional spaces.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SRT-WB-RC20-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 20 Degree
Trim Type Thin White-Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Thin White-Black Duo Trim Reflector Clear glass 20° 5CCT CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
