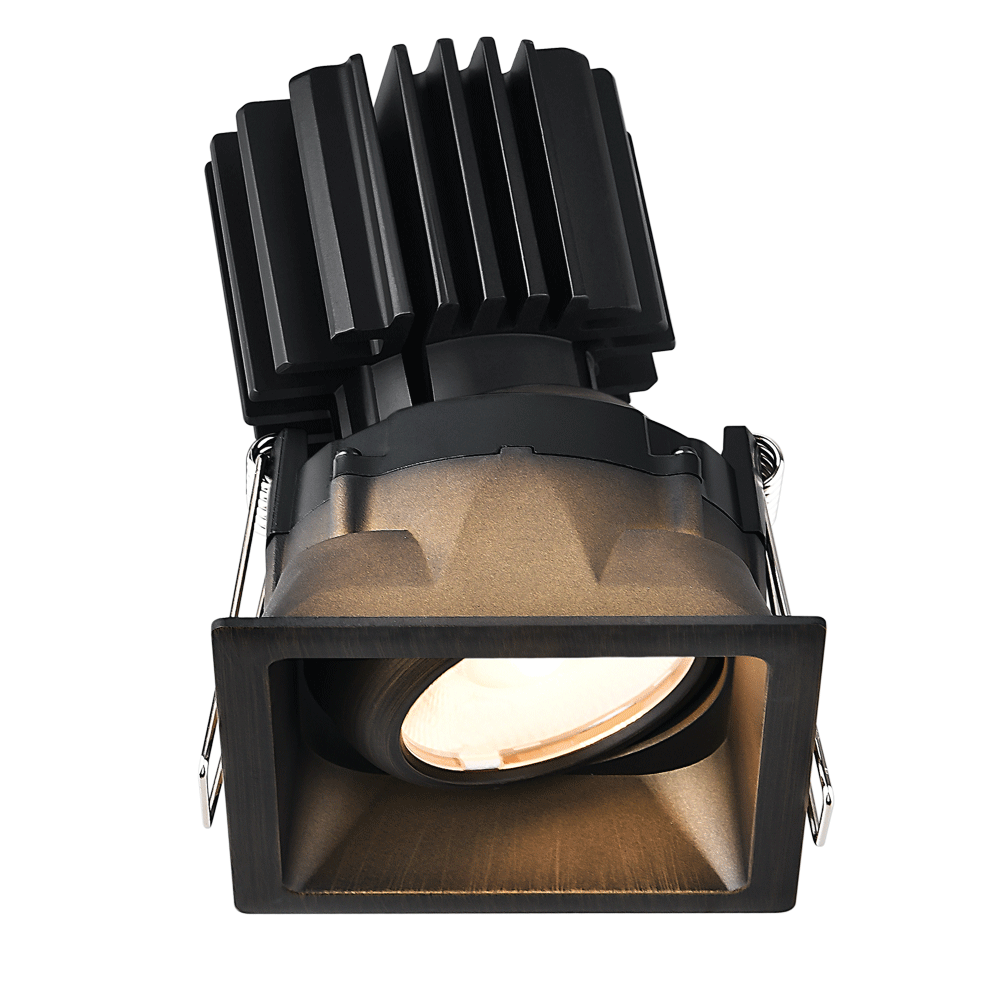

Tangra 3" Gimbal Square Recessed Thin Bronze Trim Reflector Frosted glass 60° 30K CRI98 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item Number: L3G-SRT-BR-RF60-3K98
Trim Type: Thin Bronze Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Frosted glass
CRI: 98
Beam Angle: 60 Degree

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

The Tangra 3" Gimbal Square Recessed Thin Trim Downlight with 120–347V 0–10V Dimmable Commercial Driver delivers a refined ceiling detail with precise directional control for professional environments. The slim square trim provides a clean, finished architectural appearance, while the adjustable gimbal enables accurate aiming for accent, task, and focal lighting. Designed for offices, hospitality, retail, and public spaces, the Tangra offers consistent light output, smooth 0–10V dimming, and dependable performance across a wide voltage range—supporting design flexibility and long-term reliability in demanding commercial applications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3G-SRT-BR-RF60-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 60 Degree
Trim Type Thin Bronze Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Thin Bronze Trim Reflector Frosted glass 60° 30K CRI98 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
