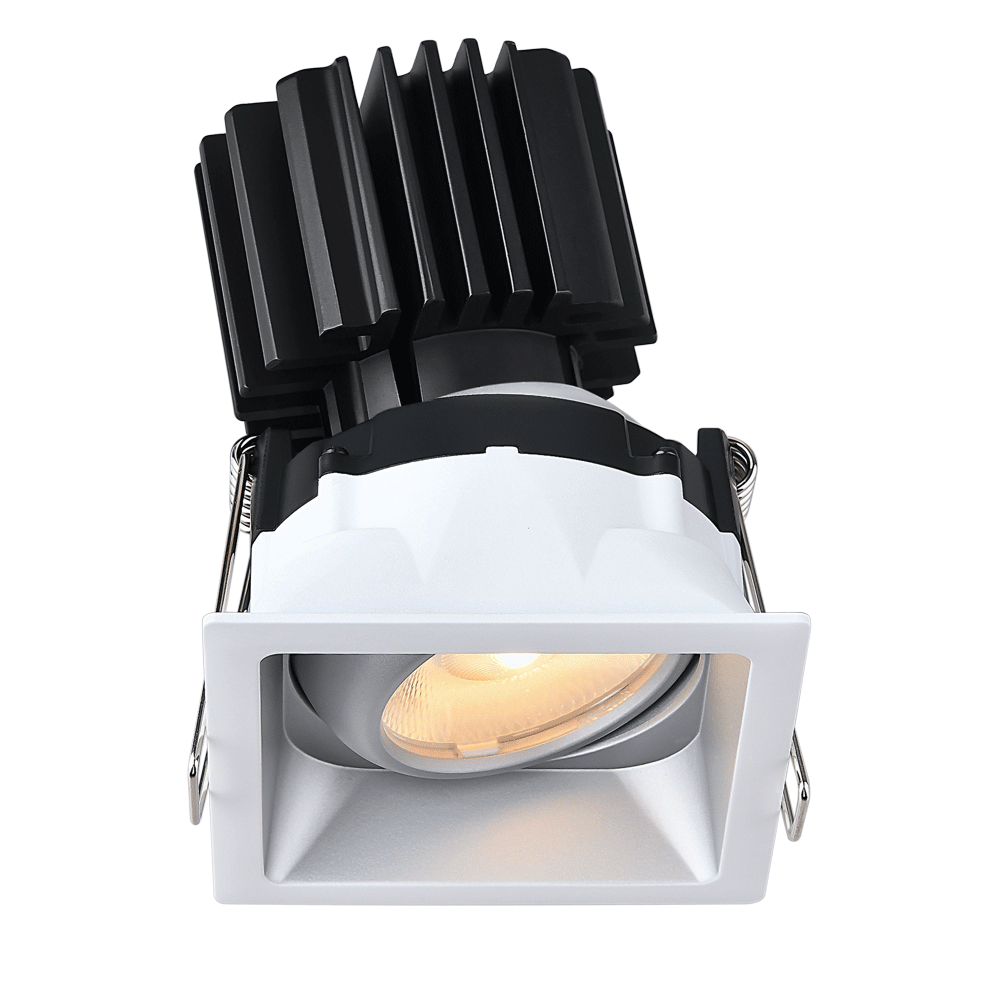

Tangra 3" Gimbal Square Recessed Thin Alzak Trim Lens White 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-SRT-AZ-LW36-4C90
Trim Type: Thin Alzak Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 90

See More Spec

$124.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SRT-AZ-LW36-4C90

The Tangra 3" Gimbal Square Recessed Thin Trim Downlight with 120–347V 0–10V Dimmable Commercial Driver delivers a refined ceiling detail with precise directional control for professional environments. The slim square trim provides a clean, finished architectural appearance, while the adjustable gimbal enables accurate aiming for accent, task, and focal lighting. Designed for offices, hospitality, retail, and public spaces, the Tangra offers consistent light output, smooth 0–10V dimming, and dependable performance across a wide voltage range—supporting design flexibility and long-term reliability in demanding commercial applications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SRT-AZ-LW36-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 36 Degree
Trim Type Thin Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Recessed Thin Alzak Trim Lens White 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
