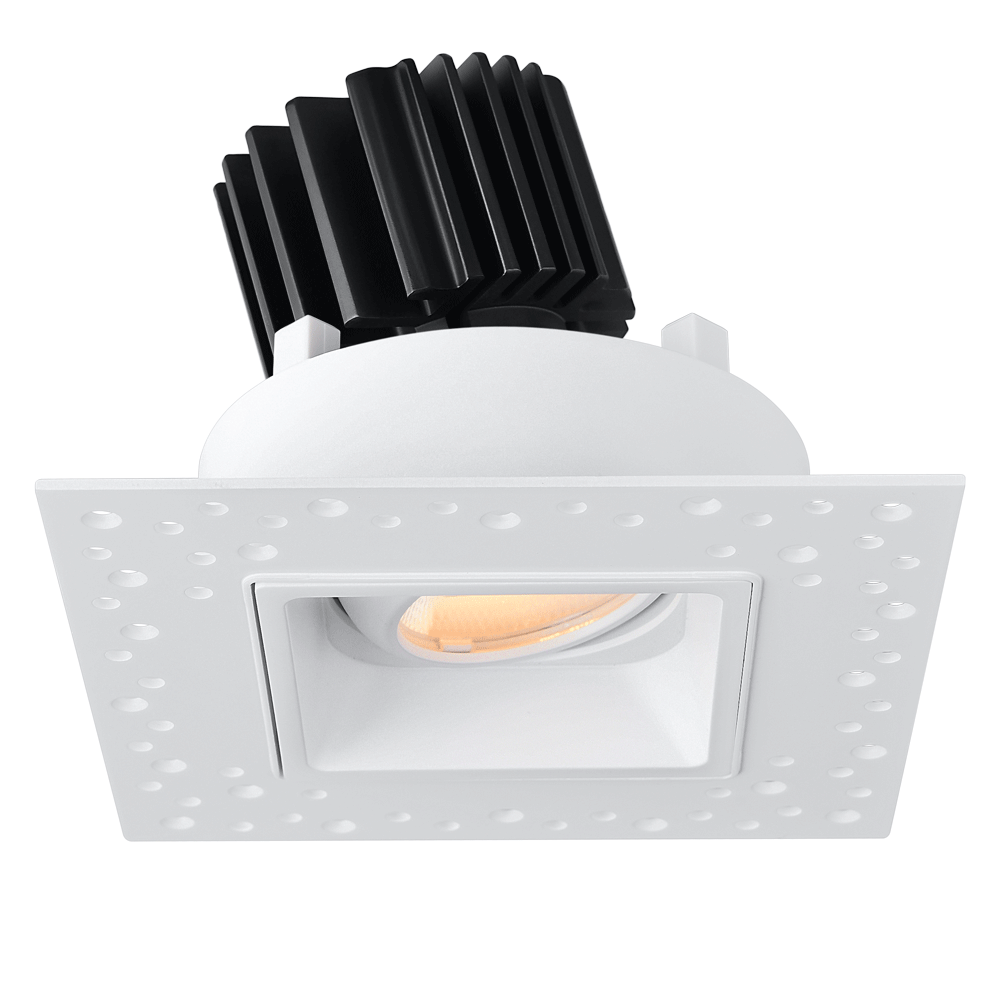

Tangra 3" Gimbal Square Invisible White Trim Reflector Semi-frosted glass 20° 5CCT CRI95 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3G-SIT-WH-RS20-5C95
Trim Type: Invisible White Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens Color: Semi-frosted glass
CRI: 95

See More Spec

$138.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SIT-WH-RS20-5C95

The Tangra 3" Gimbal Square Recessed Invisible Downlight with 120–347V 0–10V Dimmable Residential Driver delivers a clean, trimless ceiling appearance with smooth, adaptable lighting control for today’s homes. Its square aperture adds a contemporary architectural touch, while the adjustable gimbal allows light to be precisely directed for task areas, architectural details, or ambient layers. Ideal for living spaces, kitchens, and bedrooms, the Tangra offers consistent performance, quiet operation, and reliable 0–10V dimming across a wide voltage range—supporting comfortable, flexible lighting for everyday residential living.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SIT-WH-RS20-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens Color Semi-frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 20 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing - Trimless

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP275
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Invisible White Trim Reflector Semi-frosted glass 20° 5CCT CRI95 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
