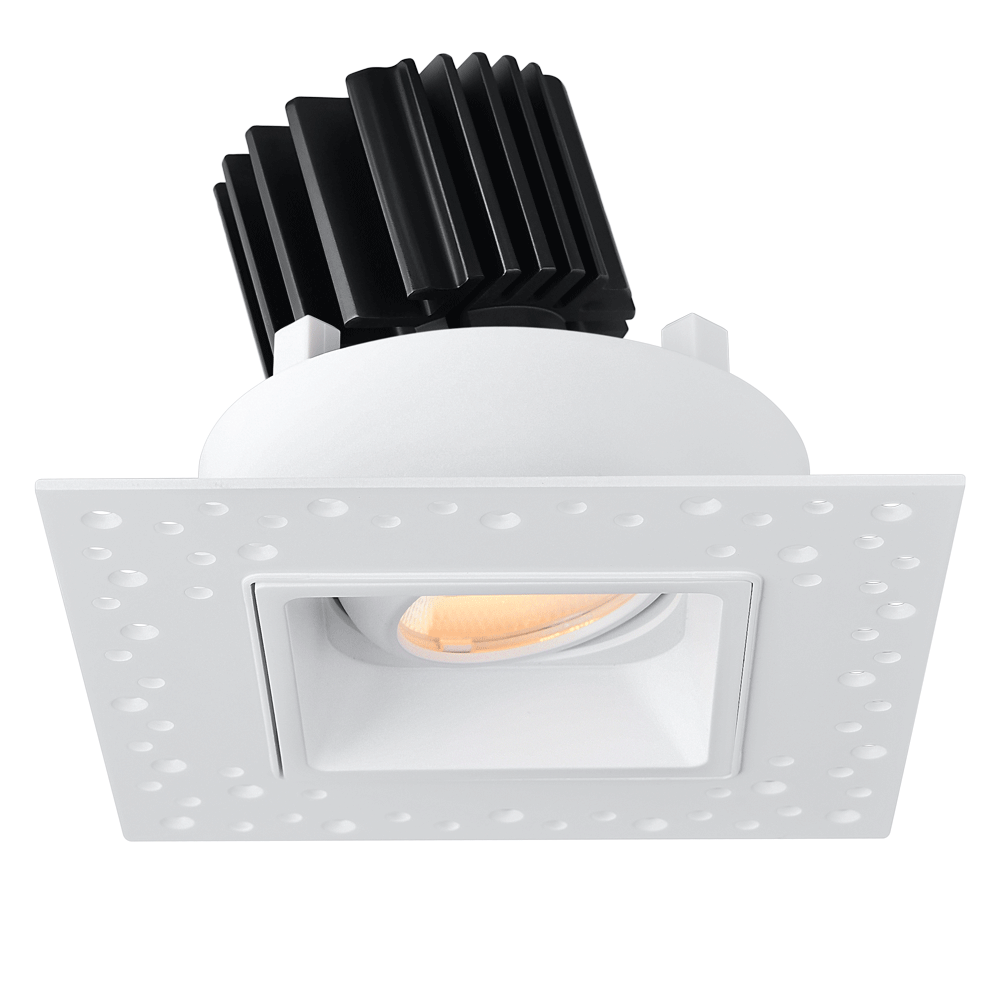

Tangra 3" Gimbal Square Invisible White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-SIT-WH-RC36-4C90
Trim Type: Invisible White Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens Color: Clear glass
CRI: 90

See More Spec

$138.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-SIT-WH-RC36-4C90

The Tangra 3" Gimbal Square Recessed Invisible Downlight with 120V Commercial Driver delivers a refined, trimless ceiling solution with precise directional control for professional environments. Featuring a square aperture for a modern architectural look, its adjustable gimbal allows accurate aiming for accent, task, and focal lighting while maintaining a clean ceiling plane. Ideal for offices, hospitality, and retail applications, the Tangra provides consistent light output, quiet operation, and dependable performance through a commercial-grade driver—supporting both design intent and long-term reliability.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-SIT-WH-RC36-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens Color Clear glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 36 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing - Trimless

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP246
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Square Invisible White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
