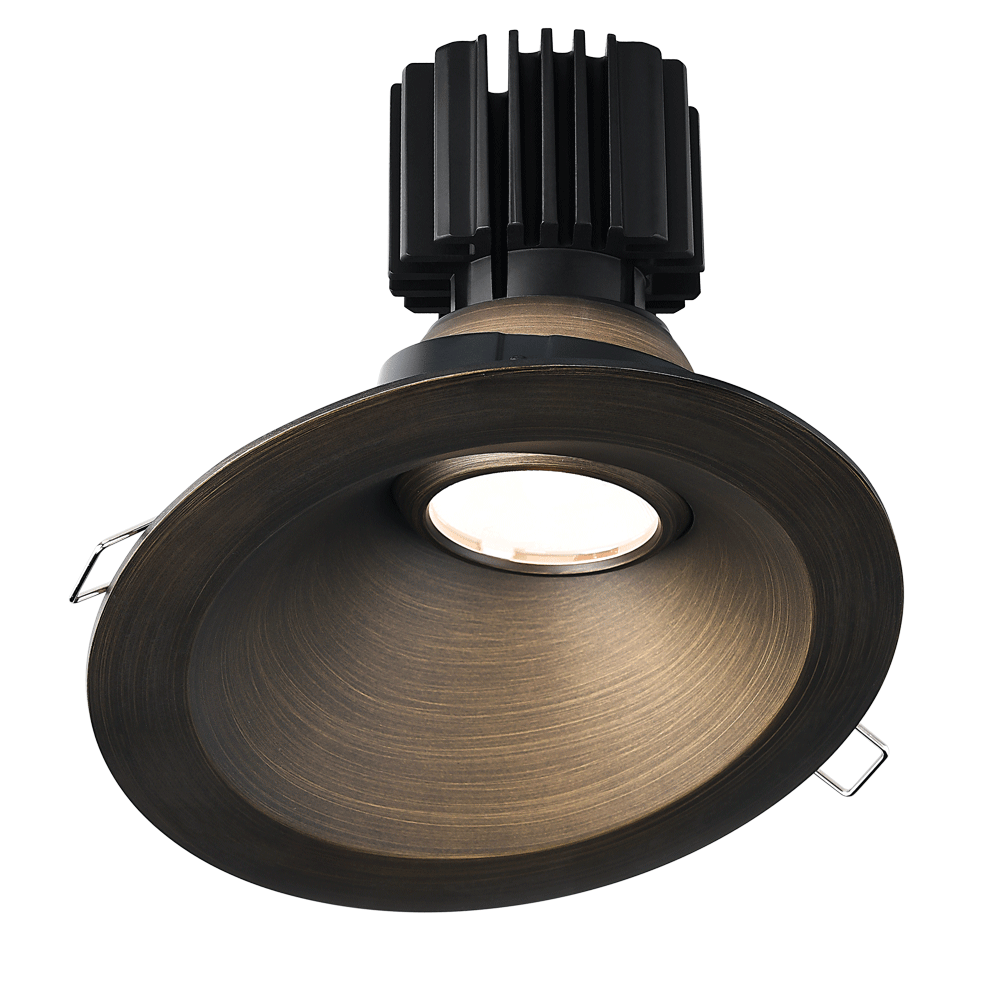

Tangra 4" Gimbal Round Sloped Wide Bronze Trim Lens Black 50° DTW 30K to 18K CRI95 with 120V Commercial Driver

  • Brand: Lotus LED Lights
  • Item number: L3G-RSW-BR-LB50-1895
  • Trim Type: Wide Bronze Trim
  • Driver: 120V Triac Dimmable Commercial
  • Color Temperature: 3000 Kelvin to 1800 Kelvin
  • Bulb Color: CCT Switchable
  • Lens/Glass Color: Lens Black
  • CRI: 95
See More Spec
  • $131.60


Shipping: 4 to 5 business days.

  BUY BULK & SAVE!

Model: L3G-RSW-BR-LB50-1895

The Tangra 4" Gimbal Round Sloped Wide Downlight is engineered for 120V commercial applications, delivering precision lighting, long-term reliability, and consistent output in high-demand environments. Built to meet the standards of architects, lighting designers, and contractors, it offers a balance of performance, flexibility, and clean architectural integration.

The fully adjustable gimbal enables precise directional aiming, making it ideal for accent lighting, wall washing, and sloped ceiling installations where accuracy and beam control are critical. Its wide beam distribution provides smooth, uniform illumination across larger surfaces, minimizing glare and eliminating harsh hot spots.

At its core, the fixture features an integrated 120V commercial-grade driver, designed for stable power delivery, flicker-free operation, and dependable performance across extended use cycles. Engineered for direct line-voltage systems, it simplifies installation while maintaining the durability and efficiency required in retail, hospitality, office, and other commercial settings.

The low-profile round trim ensures seamless ceiling integration, delivering a refined, professional finish that aligns with modern commercial interiors without visual distraction.

Key Features:

Purpose-built for 120V commercial driver applications
Integrated driver for stable, flicker-free performance
Adjustable gimbal for precise light positioning
Wide beam spread for consistent, even illumination
Ideal for high-use commercial environments
Clean, low-profile design for architectural integration

Bottom line: this is a driver-forward, performance-focused fixture—built to deliver reliable, specification-grade lighting where consistency isn’t optional.

Specification Document

Product Identity
  • Brand Lotus LED Lights
  • Item number L3G-RSW-BR-LB50-1895
  • Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
Electrical
  • Voltage 120 Volt
  • Driver 120V Triac Dimmable Commercial
  • Power 11W / 15W user selectable with Lotus Tangra drivers
  • Fixture input 20-40V DC Max 350 mA Constant Current
  • Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
  • J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
  • Temperature -40°F (-40°C) to +113°F (+45°C)
Size & Weight / Finish
  • Downlight Size 4 Inch
  • Lens/Glass Color Lens Black
Light Output & Performance
  • Color Temperature 3000 Kelvin to 1800 Kelvin
  • Bulb Color CCT Switchable
  • Lumen up to 1600 lm at 3000K CRI95
  • CRI 95
  • Beam Angle 50 Degree
  • Trim Type Wide Bronze Trim
  • Projected Life 70% Light Output at 50000 Hours
  • Applications 30° Angled Trim for Sloped Ceilings 5° to 55° & Wall Washing
Certification
  • Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
  • Wet Location Yes
  • Safety Rating Air Tight
  • Compliance FCC
Wireless Connection
Type
  • Shape Round
Included
  • Driver 120V Triac Dimmable Commercial
Suitable

Warranty

Manufacturer Warranty Information

Tangra 4" Gimbal Round Sloped Wide Bronze Trim Lens Black 50° DTW 30K to 18K CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
