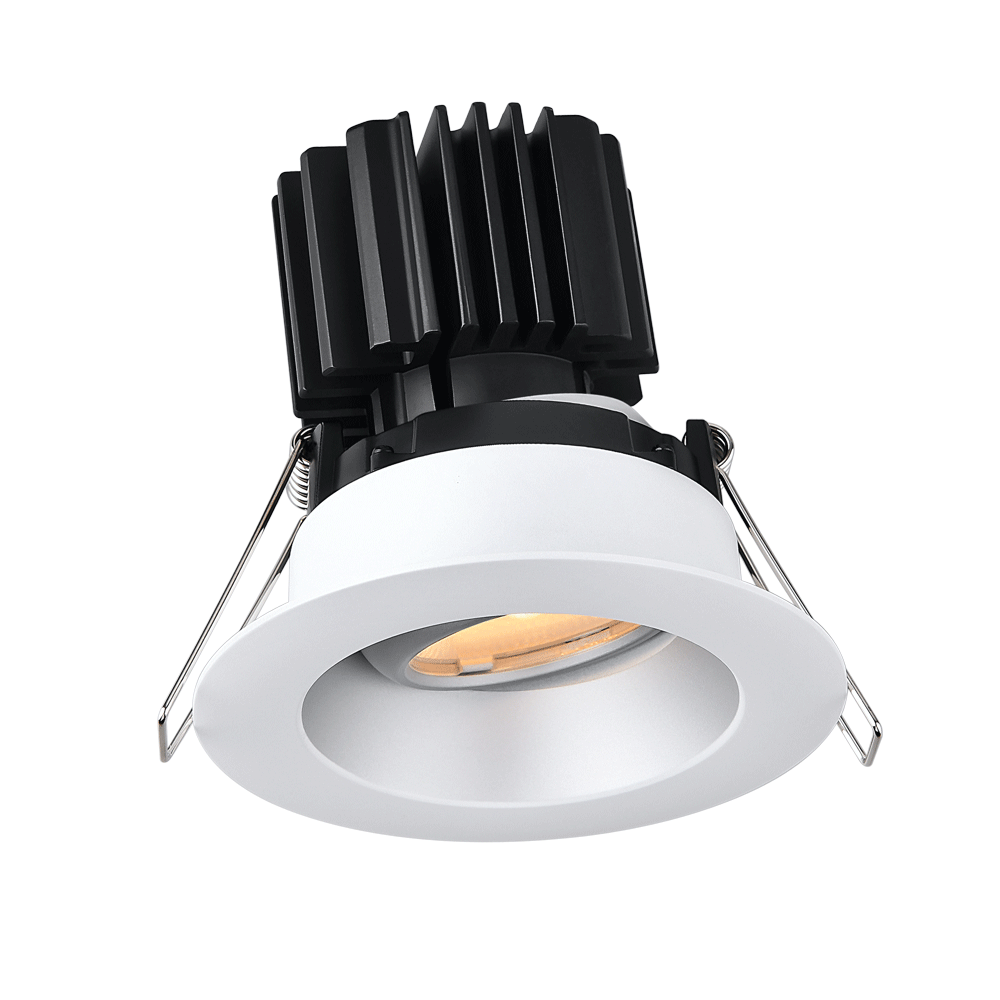

Tangra 3" Gimbal Round Recessed Wide Alzak Trim Reflector Frosted glass 60° 5CCT CRI95 with 120V Commercial Driver

Brand: Lotus LED Lights
Item Number: L3G-RRW-AZ-RF60-5C95
Trim Type: Wide Alzak Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 95

See More Spec

$117.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

The Tangra 3" Gimbal Round Recessed Downlight delivers precise, adjustable illumination in a compact architectural form factor. Featuring a smooth wide trim and fully adjustable gimbal mechanism, this fixture allows for directional aiming to highlight focal points, artwork, or architectural details with ease.
Designed for commercial applications, Tangra is powered by a reliable 120V commercial-grade driver, ensuring consistent performance and long-term durability. Its recessed installation provides a clean, modern ceiling appearance while maintaining flexibility in light direction.
Ideal for retail, hospitality, office, and high-end residential spaces, the Tangra gimbal downlight combines performance, versatility, and refined aesthetics in one efficient lighting solution.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3G-RRW-AZ-RF60-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 60 Degree
Trim Type Wide Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Recessed Wide Alzak Trim Reflector Frosted glass 60° 5CCT CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
