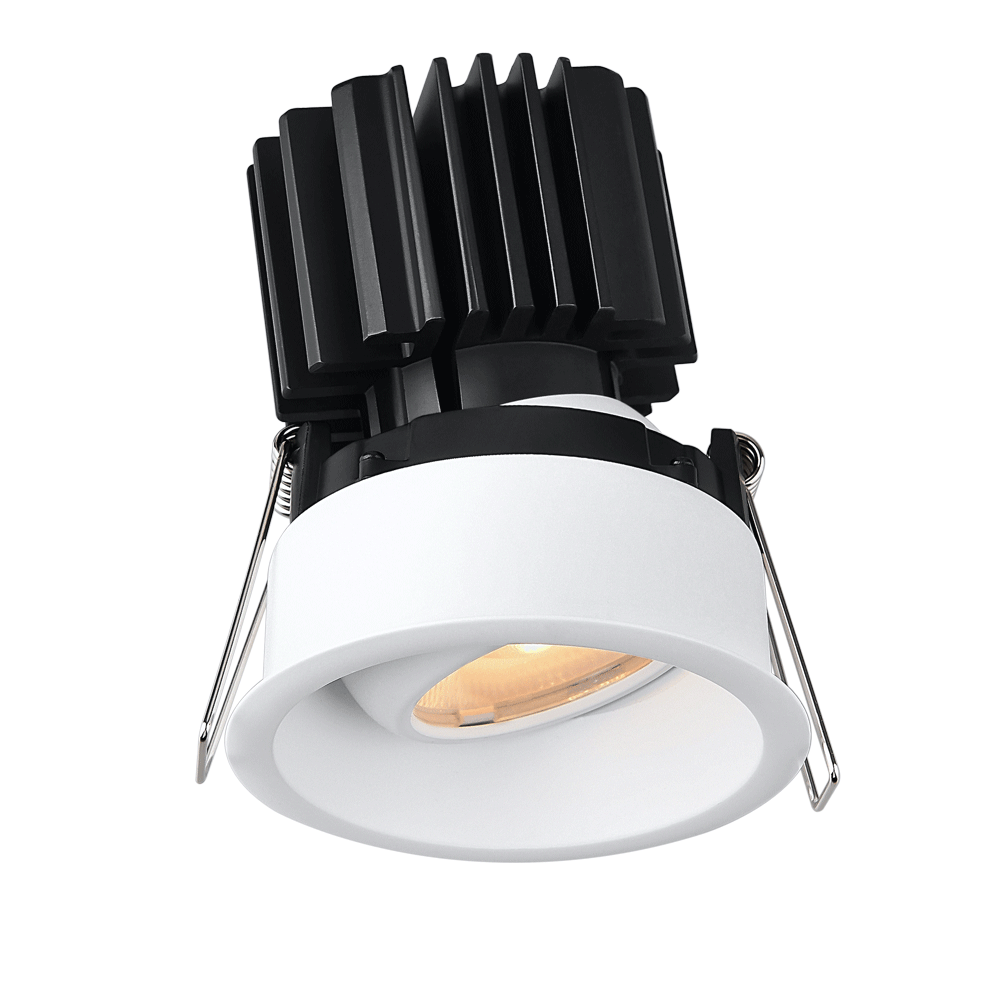

Tangra 3" Gimbal Round Recessed Thin White Trim Reflector Frosted glass 60° 4CCT+DTW 35K to 27K with 120V Commercial Driver

Brand: Lotus LED Lights
Item Number: L3G-RRT-WH-RF60-4C90
Trim Type: Thin White Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 90

See More Spec

$117.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Powered by an integrated 120V commercial-grade driver, Tangra delivers consistent output, long-term reliability, and compatibility with professional lighting control systems. The adjustable gimbal assembly allows accurate beam placement, making it well-suited for merchandise displays, artwork illumination, signage, and architectural feature highlighting.
Ideal for use in retail, hospitality, corporate, gallery, and other commercial interiors, the Tangra recessed gimbal combines precise optical control, architectural aesthetics, and specification-ready construction for professional lighting installations.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3G-RRT-WH-RF60-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Lumen 3% reverse phase cut / 4% forward phase cut
Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
CRI 90
Beam Angle 60 Degree
Trim Type Thin White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washin

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Recessed Thin White Trim Reflector Frosted glass 60° 4CCT+DTW 35K to 27K with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
