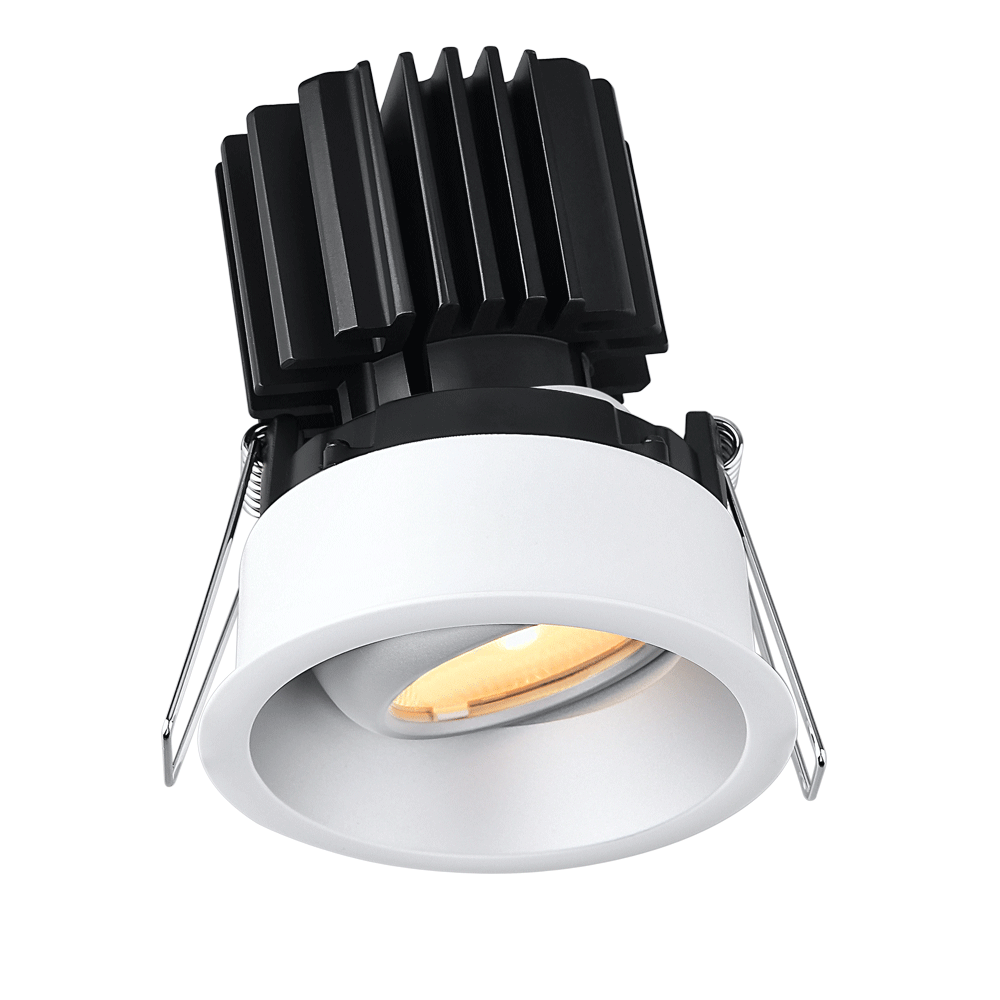

Tangra 3" Gimbal Round Recessed Thin Alzak Trim Reflector Semi-frosted glass 36° 30K with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-RRT-AZ-RS36-3K98
Trim Type: Thin Alzak Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Semi-frosted glass
CRI: 98
Beam Angle: 36 Degree

See More Spec

$117.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RRT-AZ-RS36-3K98

Powered by an integrated 120V commercial-grade driver, Tangra delivers consistent output, long-term reliability, and compatibility with professional lighting control systems. The adjustable gimbal assembly allows accurate beam placement, making it well-suited for merchandise displays, artwork illumination, signage, and architectural feature highlighting.
Ideal for use in retail, hospitality, corporate, gallery, and other commercial interiors, the Tangra recessed gimbal combines precise optical control, architectural aesthetics, and specification-ready construction for professional lighting installations.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RRT-AZ-RS36-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 36 Degree
Trim Type Thin Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Recessed Thin Alzak Trim Reflector Semi-frosted glass 36° 30K with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
