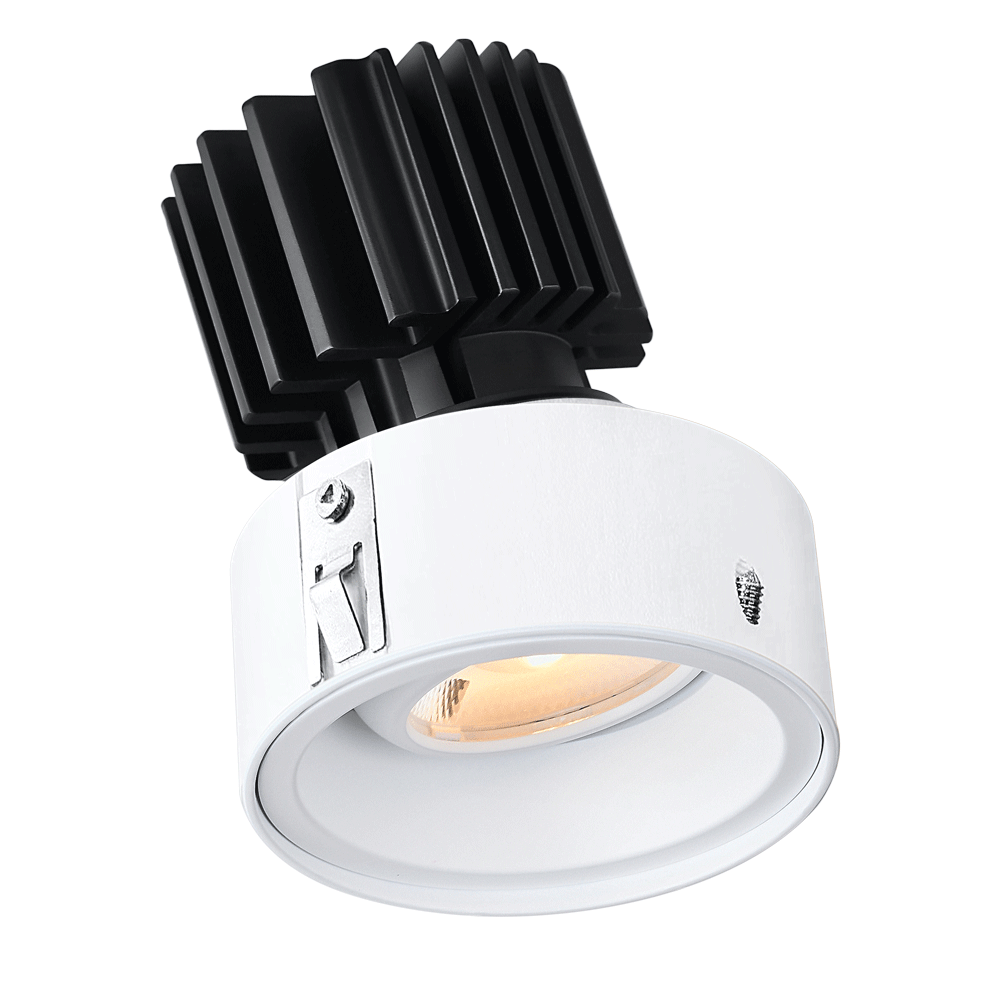

Tangra 3" Gimbal Round Recessed Invisible Flangeless White Trim Reflector Frosted glass 50° 5CCT CRI98with 120-347V 0-10V Dimmable Commercable Residential Driver

Brand: Lotus LED Lights
Item number: L3G-RIF-WH-RF50-5C98
Trim Type: Invisible Flangeless White Trim Reflector
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 98

See More Spec

$138.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RIF-WH-RF50-5C98

Powered by a 120-347V commercial-grade driver, this fixture is designed for serious performance. Whether you’re lighting retail spaces, offices, galleries, hospitality environments, or high-end residential projects, it delivers reliable output without flicker or fuss.

And yes—it’s 0-10V dimmable, so you stay in control of the vibe. Bright and focused for productivity. Soft and ambient for atmosphere. Your space, your rules.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RIF-WH-RF50-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 50 Degree
Trim Type Invisible Flangeless White Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped up to 20° - Millwork & Wood Ceiling

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP403
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Recessed Invisible Flangeless White Trim Reflector Frosted glass 50° 5CCT CRI98with 120-347V 0-10V Dimmable Commercable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
