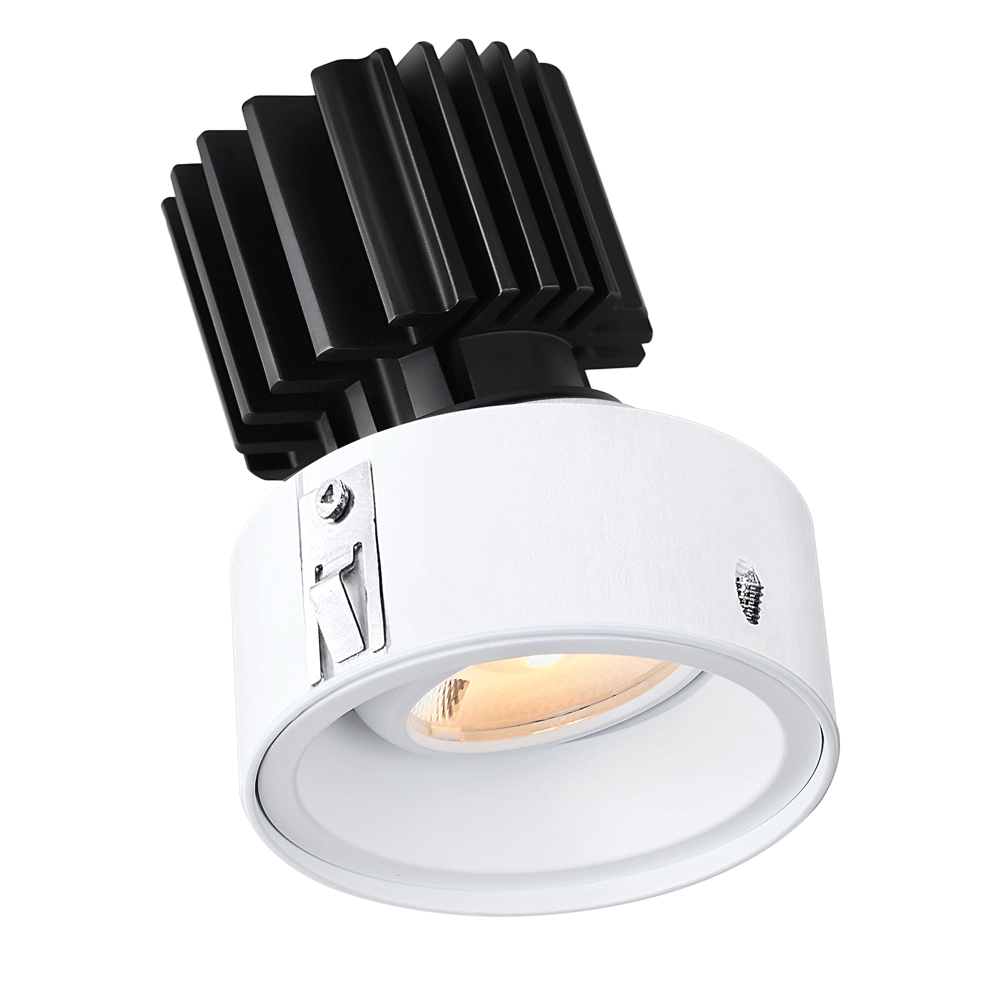

Tangra 3" Gimbal Round Recessed Invisible Flangeless White Trim Reflector Clear glass 20° 30K CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-RIF-WH-RC20-3K98
Trim Type: Invisible Flangeless White Trim Reflector
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Clear Glass
CRI: 98
Beam Angle: 20 Degree

See More Spec

$138.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RIF-WH-RC20-3K98

Powered by a 120V commercial-grade constant-current driver, the fixture delivers stable output, consistent lumen performance, and reliable voltage regulation across standard line-voltage systems. The driver is engineered for long operational life, thermal stability, and dependable day-to-day performance in high-traffic commercial settings. Designed to meet specification standards, it ensures consistent light quality and system compatibility within 120V infrastructure.

By combining trimless architectural integration, precision aiming capability, and robust 120V commercial driver performance, the Tangra 3" Gimbal Round Recessed Invisible Flangeless Trim provides a professional-grade solution tailored for modern commercial lighting applications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RIF-WH-RC20-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear Glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 20 Degree
Trim Type Invisible Flangeless White Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped up to 20° - Millwork & Wood Ceiling

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP219
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Recessed Invisible Flangeless White Trim Reflector Clear glass 20° 30K CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
