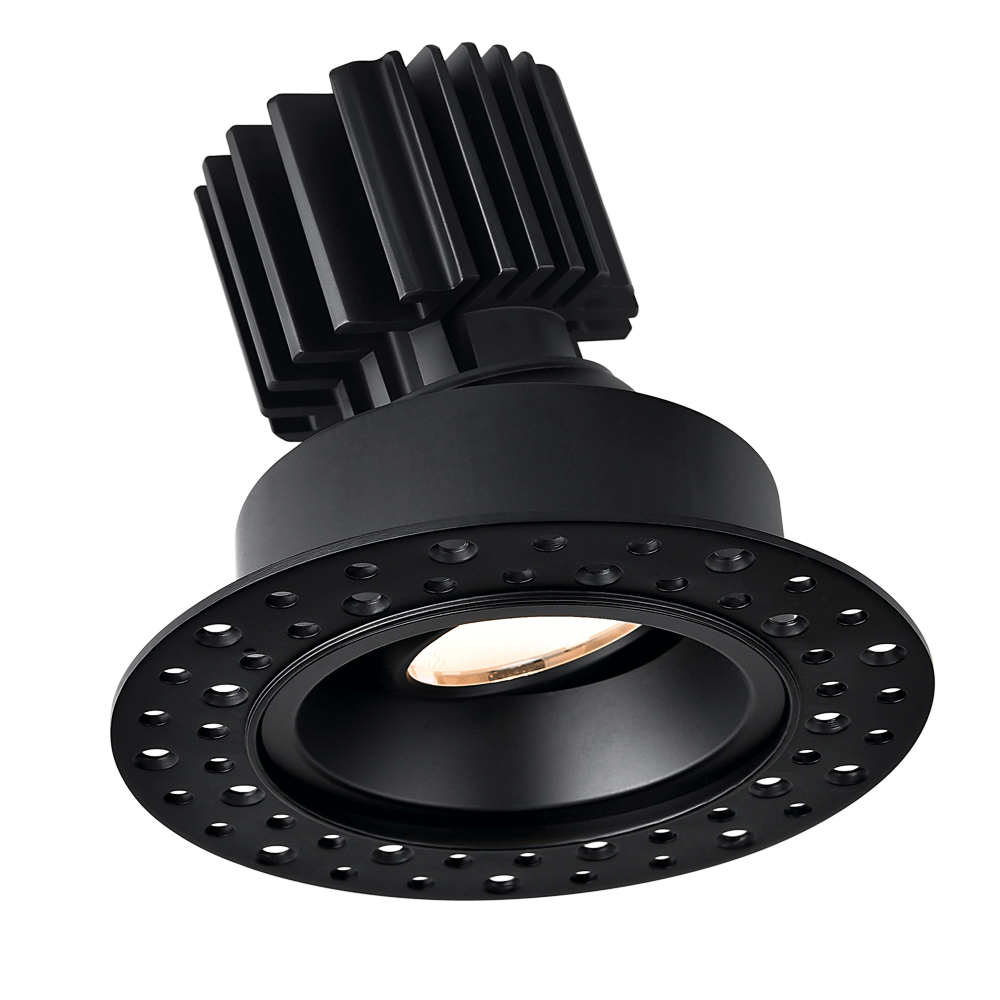

Tangra 3" Gimbal Round Recessed Invisible Black Trim Reflector Frosted glass 50° 5CCT CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-RIT-BK-RF50-5C95
Trim Type: Invisible Black Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 95

See More Spec

$131.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RIT-BK-RF50-5C95

The Tangra 3" Gimbal Round Recessed Invisible Downlight with 120–347V 0–10V Dimmable Commercial Driver provides a seamless, trimless ceiling solution with precise, controllable illumination for demanding commercial applications. Designed for architectural integration, the adjustable gimbal enables accurate aiming for accent, task, and feature lighting while maintaining a clean, uninterrupted ceiling plane. Suitable for offices, hospitality, retail, and public spaces, the Tangra delivers consistent light output, smooth 0–10V dimming, and dependable performance across a wide voltage range—supporting long-term reliability and design flexibility in professional environments.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RIT-BK-RF50-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
Waranty 5 Years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 50 Degree
Trim Type Invisible Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing - Trimless

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Recessed Invisible Black Trim Reflector Frosted glass 50° 5CCT CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
