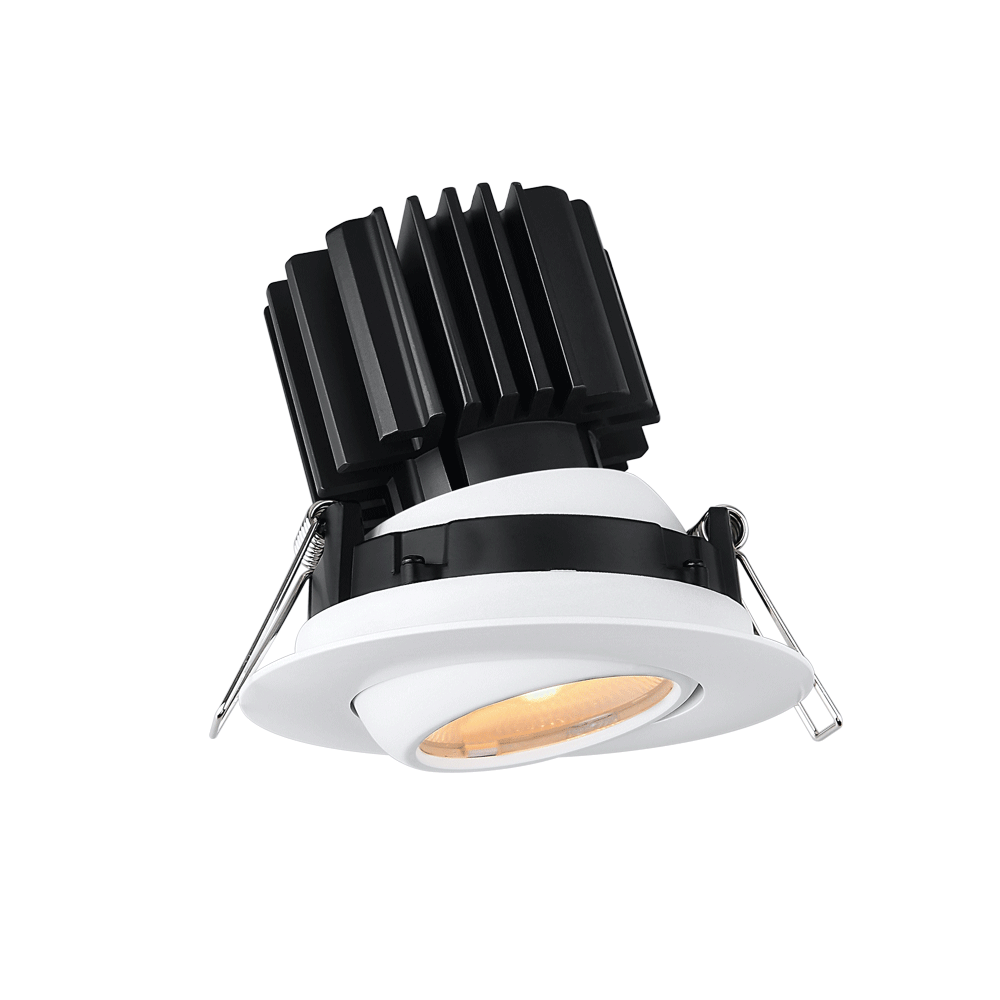

Tangra 3" Gimbal Round Flat Wide White Trim Reflector Clear glass 36° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-RFW-WH-RC36-1895
Trim Type: Flat Wide White Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin to 1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear glass
CRI: 95

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RFW-WH-RC36-1895

Powered by a heavy-duty 120–347V, 0–10V dimmable commercial-grade driver, the Tangra gimbal is engineered for compatibility with a wide range of commercial power systems and lighting control infrastructures. The driver delivers smooth, deep, flicker-free dimming, consistent lumen maintenance, and reliable performance in demanding, continuous-operation environments. Combined with the adjustable gimbal mechanism, the fixture enables precise beam aiming to meet the stringent lighting and design requirements of retail, hospitality, office, gallery, and institutional spaces where durability, control integration, and long-term performance are critical.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RFW-WH-RC36-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 3000 Kelvin to 1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 36 Degree
Trim Type Flat Wide White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Flat Wide White Trim Reflector Clear glass 36° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
