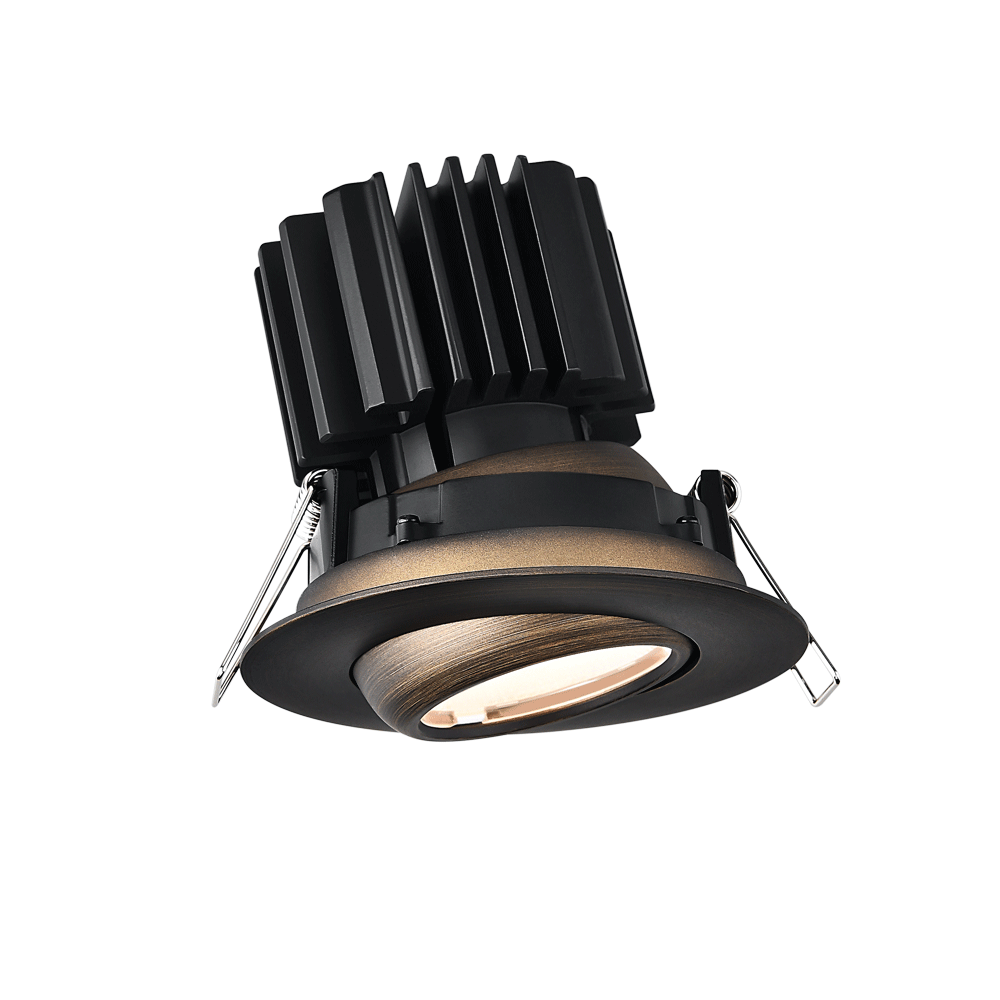

Tangra 3" Gimbal Round Flat Wide Bronze Trim Reflector Frosted glass 60° 5CCT CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item Number: L3G-RFW-BR-RF60-5C98
Trim Type: Flat Wide Bronze Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 98

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Powered by a high-reliability 120V commercial-grade driver, the Tangra gimbal delivers stable performance, consistent lumen output, and long service life in continuous-use environments. The adjustable gimbal mechanism allows accurate beam aiming to support accent lighting, highlighting, and task-oriented applications. Ideal for use in retail, hospitality, office, and gallery installations where performance, durability, and visual comfort are required.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3G-RFW-BR-RF60-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 60 Degree
Trim Type Flat Wide Bronze Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Flat Wide Bronze Trim Reflector Frosted glass 60° 5CCT CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
