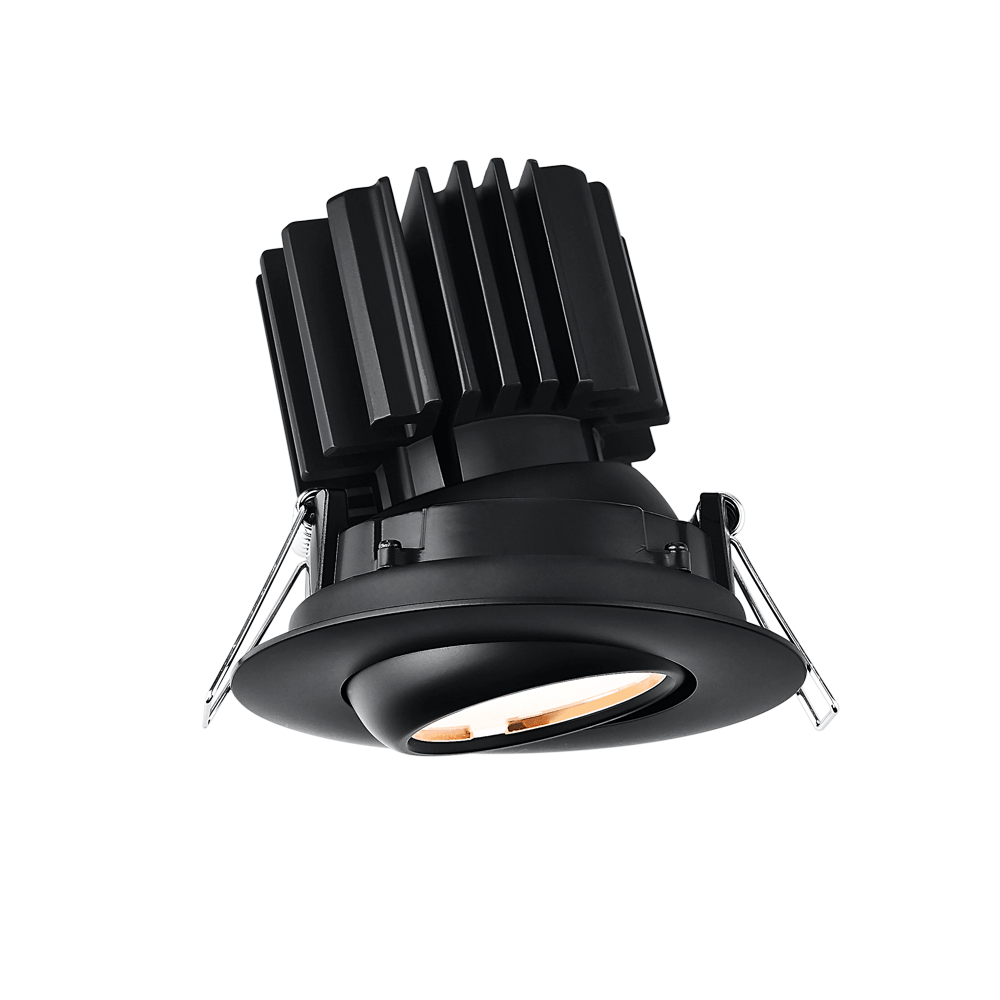

Tangra 3" Gimbal Round Flat Wide Black Trim Reflector Semi-frosted glass 20° 30K CRI98 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3G-RFW-BK-RS20-3K98
Trim Type: Flat Wide Black Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3000 Kelvin
Lens/Glass Color: Semi-frosted glass
CRI: 98
Beam Angle: 20 Degree

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RFW-BK-RS20-3K98

Featuring an advanced 120–347V, 0–10V dimmable residential driver, the Tangra gimbal offers wide-range voltage compatibility and smooth, responsive dimming for today’s varied residential and multi-family electrical systems. The driver ensures stable performance and consistent light output, while the adjustable gimbal allows precise aiming to enhance architectural details and focal points. Ideal for high-end homes, multi-family residences, and mixed-use spaces where lighting comfort, control, and design flexibility are a priority.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RFW-BK-RS20-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 20 Degree
Trim Type Flat Wide Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Flat Wide Black Trim Reflector Semi-frosted glass 20° 30K CRI98 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
