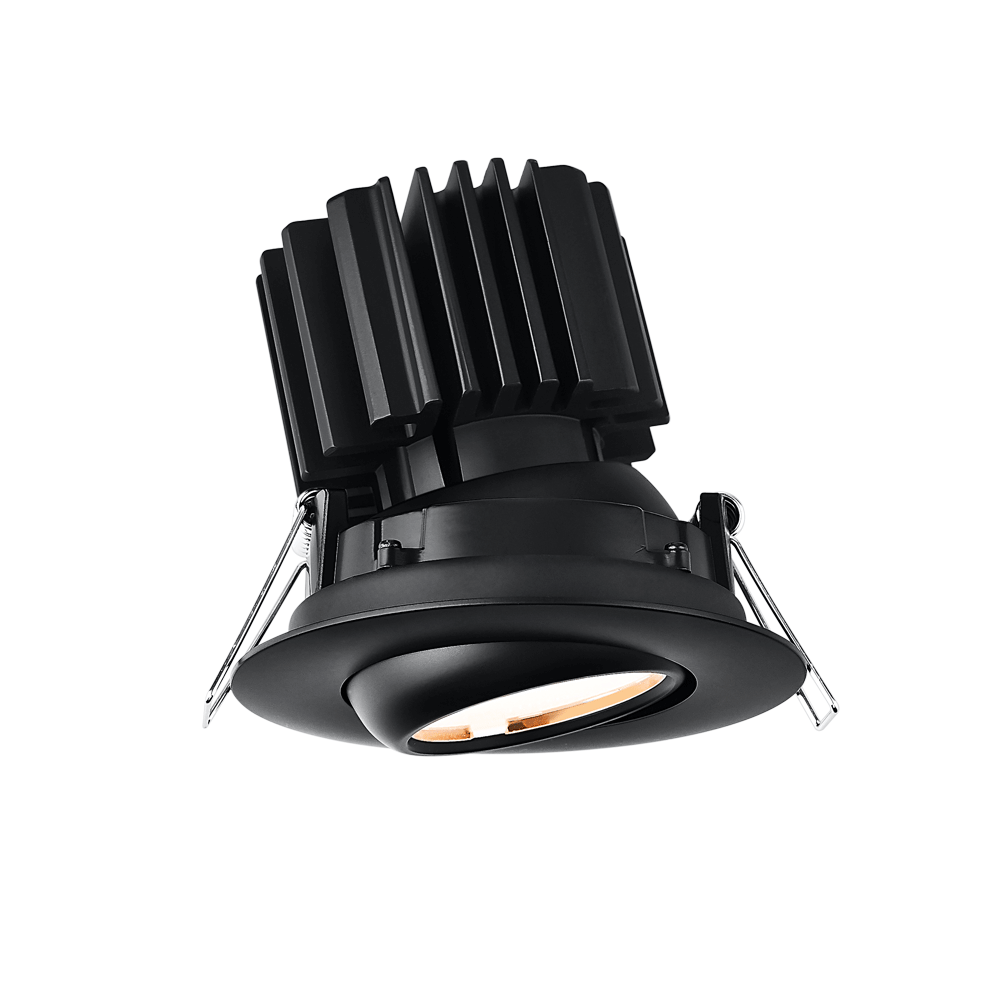

Tangra 3" Gimbal Round Flat Wide Black Trim Reflector Semi-frosted glass 20° 30K CRI95 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3G-RFW-BK-RS20-3K95
Trim Type: Flat Wide Black Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Semi-frosted glass
CRI: 95
Beam Angle: 20 Degree

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3G-RFW-BK-RS20-3K95

Powered by a high-reliability 120V commercial-grade driver, the Tangra gimbal delivers stable performance, consistent lumen output, and long service life in continuous-use environments. The adjustable gimbal mechanism allows accurate beam aiming to support accent lighting, highlighting, and task-oriented applications. Ideal for use in retail, hospitality, office, and gallery installations where performance, durability, and visual comfort are required.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3G-RFW-BK-RS20-3K95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 20 Degree
Trim Type Flat Wide Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Task Lighting/ Sloped Ceiling up to 20°/ Wall Washing

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Gimbal Round Flat Wide Black Trim Reflector Semi-frosted glass 20° 30K CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
