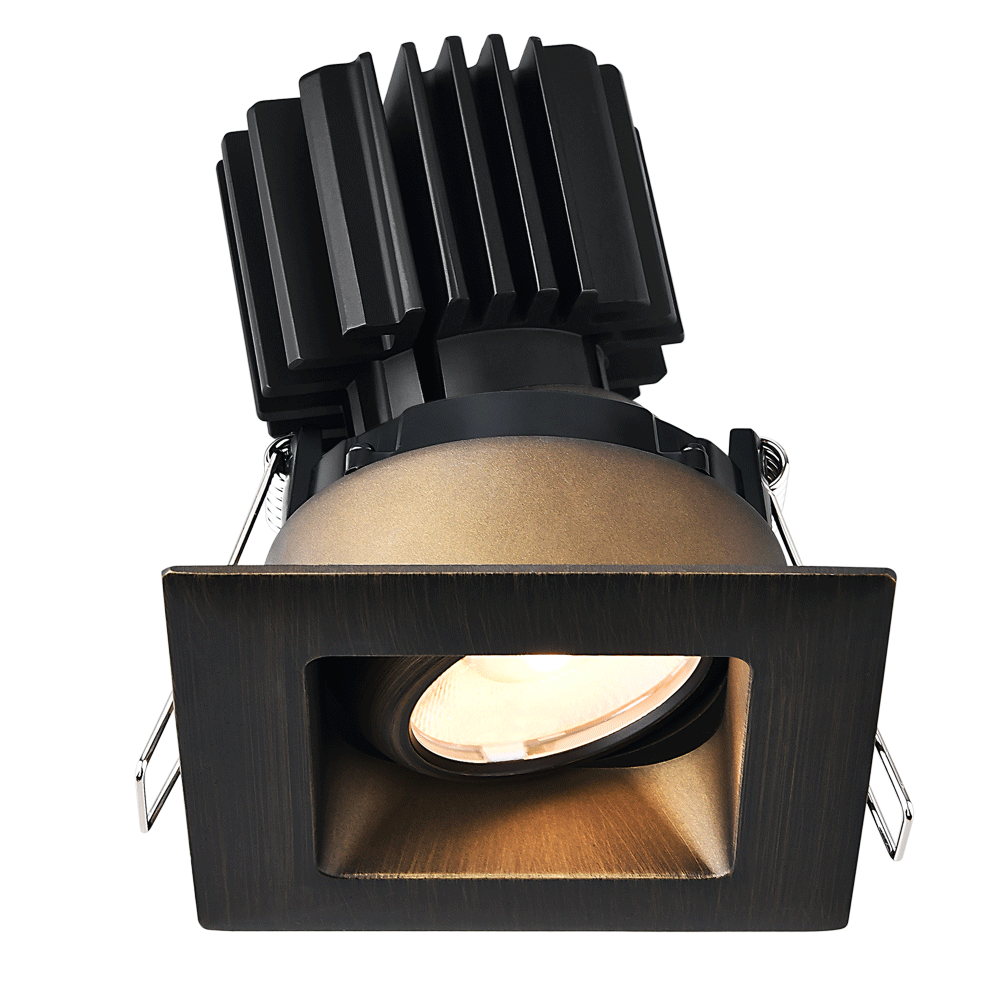

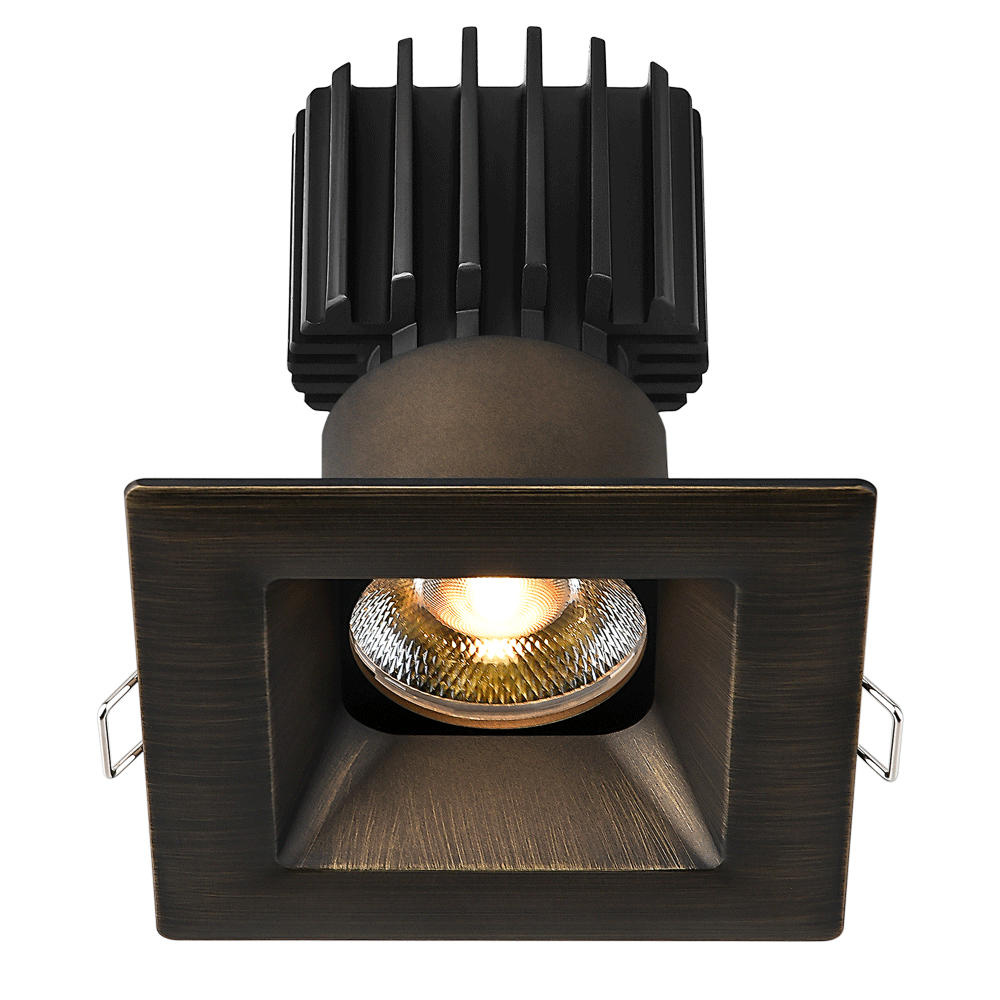

Tangra 3" Fixed Square Recessed Wide Bronze Trim Reflector Frosted glass 60° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item Number: L3F-SRW-BR-RF60-4C90
Trim Type: Wide Bronze Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 90

See More Spec

$114.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Equipped with a 120–347V 0–10V dimmable residential driver, the Tangra provides added flexibility for a wide range of home lighting applications. The dimming capability allows homeowners to easily adjust light levels to suit different moods and activities, from bright task lighting to softer, more relaxed ambient light. Its recessed design helps reduce glare and visual clutter, making it ideal for living rooms, kitchens, bedrooms, hallways, and open-concept spaces.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3F-SRW-BR-RF60-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 60 Degree
Trim Type Wide Bronze Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare

Certification

Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Wide Bronze Trim Reflector Frosted glass 60° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
