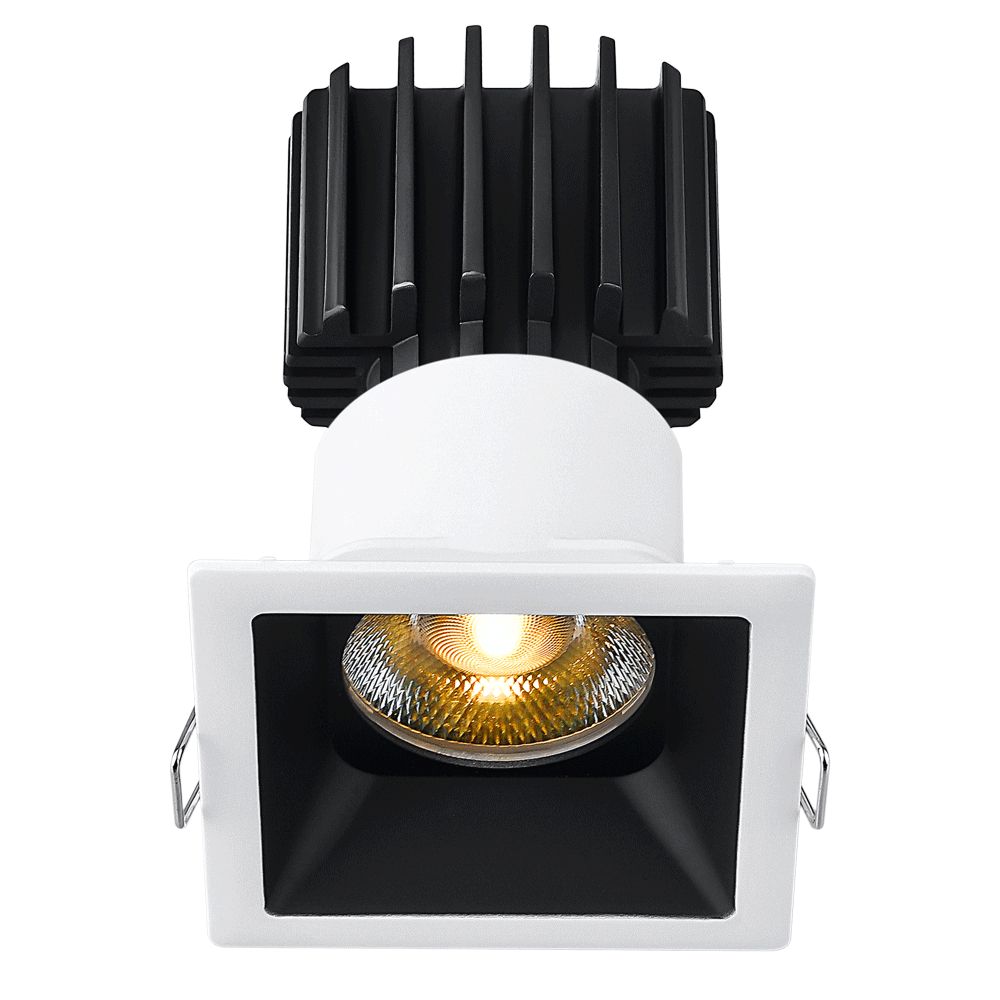

Tangra 3" Fixed Square Recessed Thin White-Black Duo Trim Reflector Frosted glass 60° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item Number: L3F-SRT-WB-RF60-4C90
Trim Type: Thin White-Black Duo Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 90

See More Spec

$114.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Equipped with a 120–347V 0–10V dimmable residential driver, the Tangra is engineered for voltage versatility and advanced lighting control in modern residential and multi-family applications. The universal 120–347V input accommodates a wide range of electrical infrastructures, while integrated 0–10V dimming provides precise, smooth, and flicker-free light level adjustment to support layered lighting designs and energy management requirements.

Designed for stable driver performance and consistent lumen output, the system ensures reliable operation and long service life. The fixed configuration delivers controlled, uniform illumination, making it well-suited for kitchens, living areas, corridors, condominiums, and upscale residential developments.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3F-SRT-WB-RF60-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 60 Degree
Trim Type Thin White-Black Duo Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Thin White-Black Duo Trim Reflector Frosted glass 60° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
