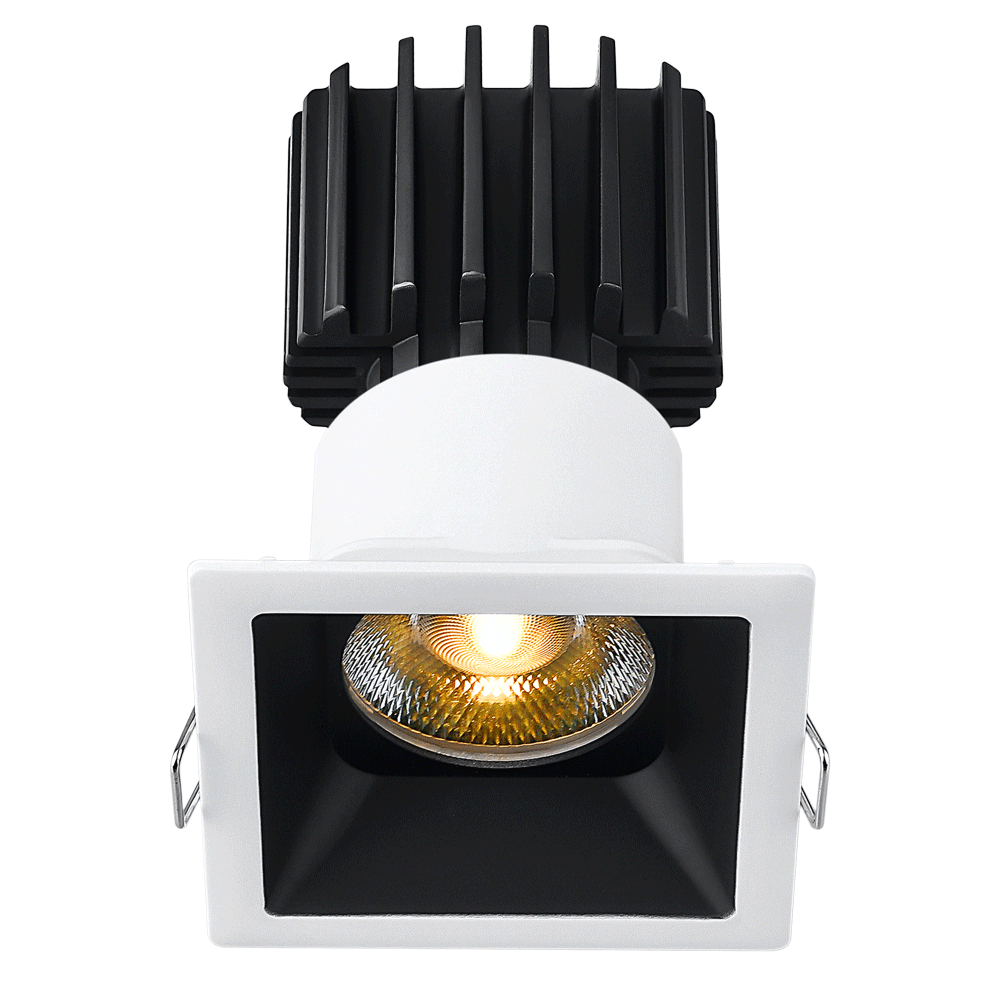

Tangra 3" Fixed Square Recessed Thin White-Black Duo Trim Reflector Clear glass 20° 5CCT CRI95 with 120V Residential Driver

Tangra 3" Fixed Square Recessed Thin White-Black Duo Trim Reflector Clear glass 20° 5CCT CRI95 with 120V Residential Driver

Brand: Lotus LED Lights
Item number: L3F-SRT-WB-RC20-5C95
Trim Type: Thin White-Black Duo Trim
Driver: 120V Triac Dimmable Residential
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear glass
CRI: 95

See More Spec

$114.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SRT-WB-RC20-5C95

Equipped with a dedicated 120V residential driver, the Tangra ensures reliable operation and smooth, flicker-free illumination. The fixed configuration provides precise, consistent light output—perfect for accent lighting, kitchens, hallways, living spaces, and other residential applications where both style and functionality matter.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SRT-WB-RC20-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 20 Degree
Trim Type Thin White-Black Duo Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Thin White-Black Duo Trim Reflector Clear glass 20° 5CCT CRI95 with 120V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
