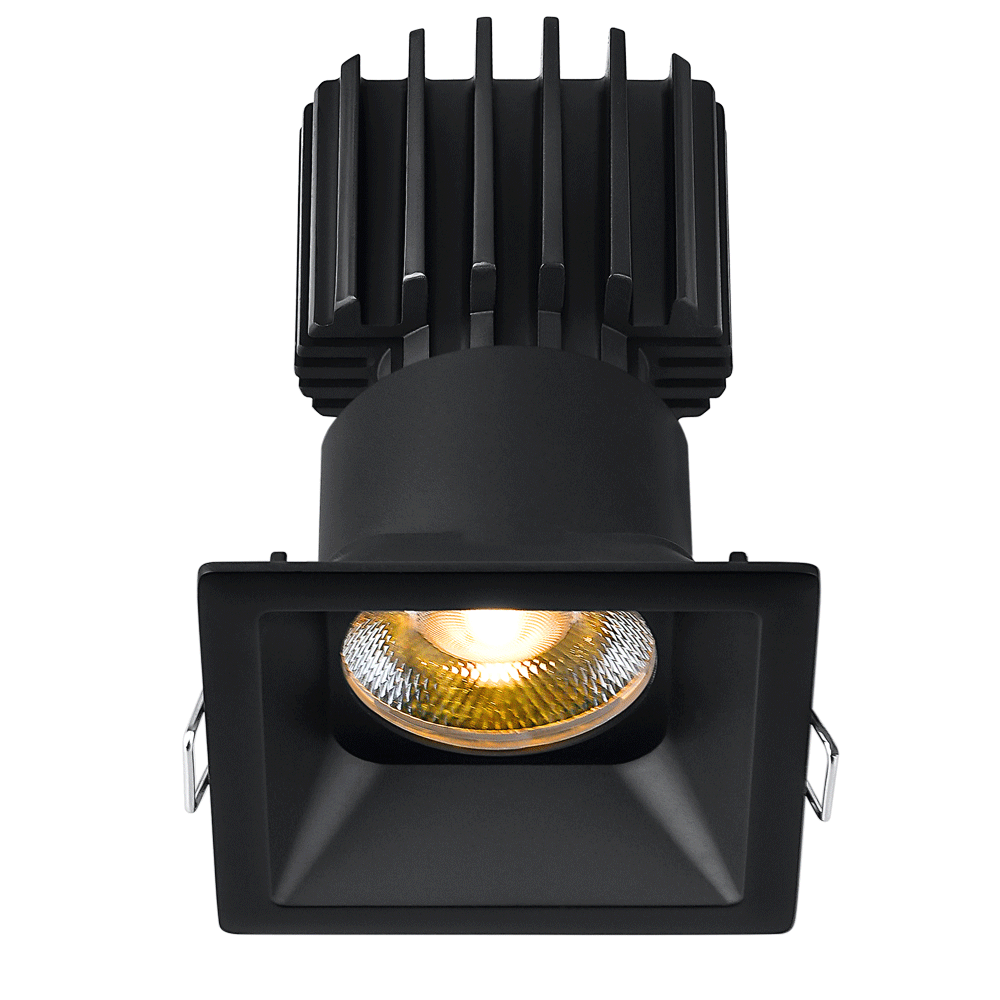

Tangra 3" Fixed Square Recessed Thin Black Trim Reflector Frosted glass 60° 30K CRI98 with 120V Residential Driver

Tangra 3" Fixed Square Recessed Thin Black Trim Reflector Frosted glass 60° 30K CRI98 with 120V Residential Driver

Brand: Lotus LED Lights
Item Number: L3F-SRT-BK-RF60-3K98
Trim Type: Thin Black Trim
Driver: 120V Triac Dimmable Residential
Lens/Glass Color: Frosted glass
CRI: 98
Beam Angle: 60 Degree
Voltage: 120 Volt

See More Spec

$114.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Powered by a 120V residential driver, the Tangra 3" Fixed Round Deep Regressed Downlight features a sleek, architectural design with excellent glare control for modern residential interiors. It allows for straightforward installation and reliable performance in standard residential applications. this downlight is ideal for kitchens, living areas, hallways, and bedrooms.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3F-SRT-BK-RF60-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 60 Degree
Trim Type Thin Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look
Color Temperarure 3000 Kelvin

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Thin Black Trim Reflector Frosted glass 60° 30K CRI98 with 120V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
