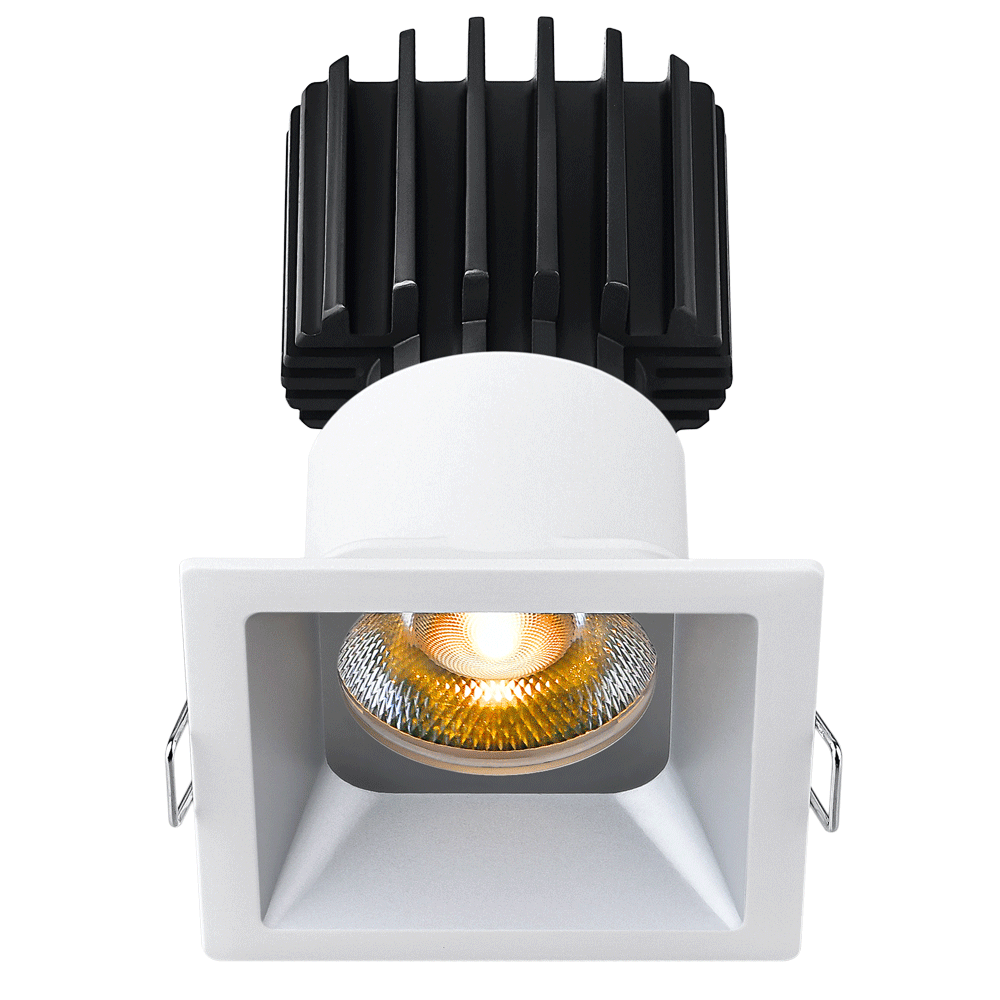

Tangra 3" Fixed Square Recessed Thin Alzak Trim Reflector Clear glass 36° 30K CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-SRT-AZ-RC36-3K98
Trim Type: Thin Alzak Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Clear glass
CRI: 98
Beam Angle: 36 Degree

See More Spec

$114.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SRT-AZ-RC36-3K98

Powered by a 120V commercial-grade driver, this fixture provides stable electrical performance, consistent lumen output, and long-term reliability in high-use applications. The fixed optic ensures controlled, uniform light distribution, supporting balanced ambient or accent lighting across retail, office, hospitality, and institutional spaces.

With its compact 3" aperture and minimal visual footprint, the Tangra offers a streamlined lighting solution suitable for both new construction and retrofit installations. Designed to meet the demands of commercial specifications, it delivers dependable illumination without compromising architectural integrity.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SRT-AZ-RC36-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 36 Degree
Trim Type Thin Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Thin Alzak Trim Reflector Clear glass 36° 30K CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
