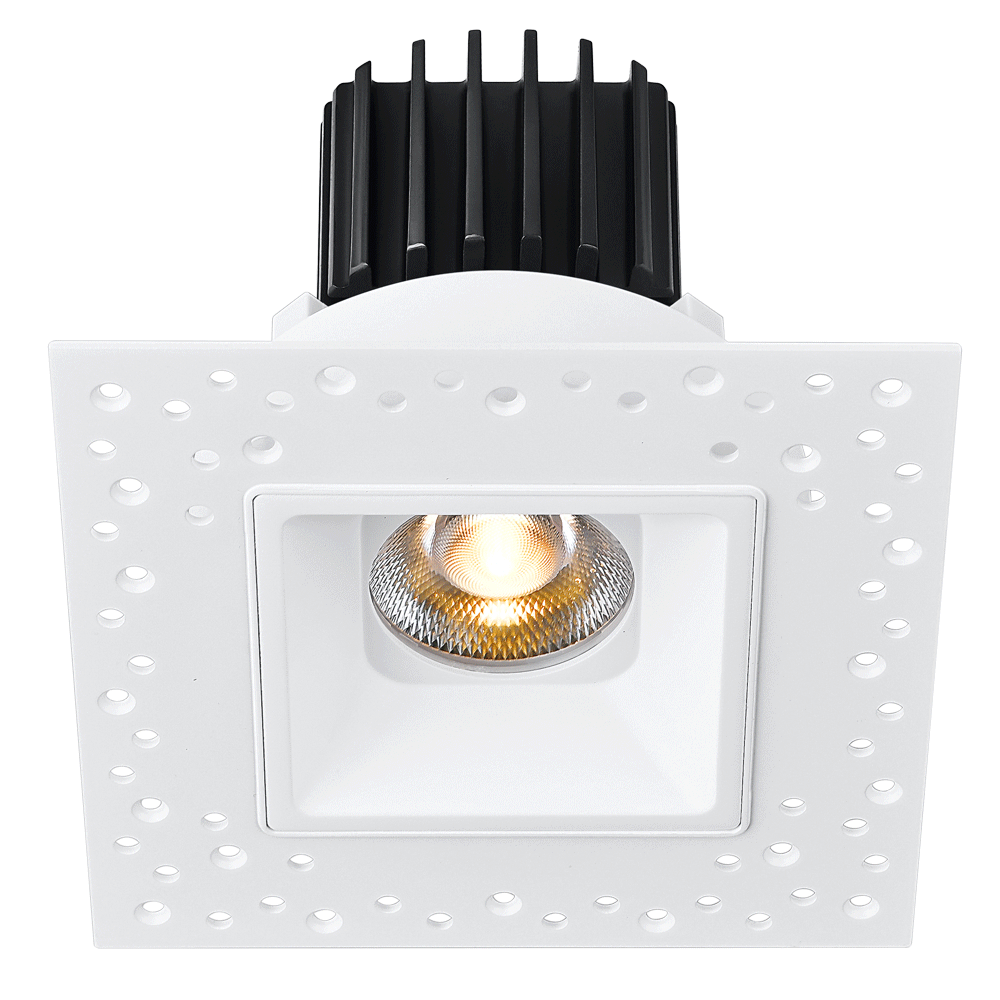

Tangra 3" Fixed Square Recessed Invisible White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3F-SRI-WH-RC36-4C90
Trim Type: Invisible White Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear Glass
CRI: 90

See More Spec

$128.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SRI-WH-RC36-4C90

Designed for comfortable everyday living, this fixed recessed light delivers soft, glare-controlled illumination and includes a 120–347V 0–10V dimmable residential driver for flexible installation and easy light adjustment. Whether brightening active areas or creating a relaxed atmosphere, Tangra allows homeowners to fine-tune light levels to match different moments throughout the day. Its compact, low-profile design makes it an ideal choice for living rooms, kitchens, bedrooms, hallways, and other areas where clean aesthetics, comfort, and dimming control are essential.

Specification Document

Product's Page

Product Identity

Brand Lotus LED Lights
Item number L3F-SRI-WH-RC36-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear Glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 90
Beam Angle 36 Degree
Trim Type Invisible White Trim
Applications Ambient / General Lighting Reduced Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Invisible White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
