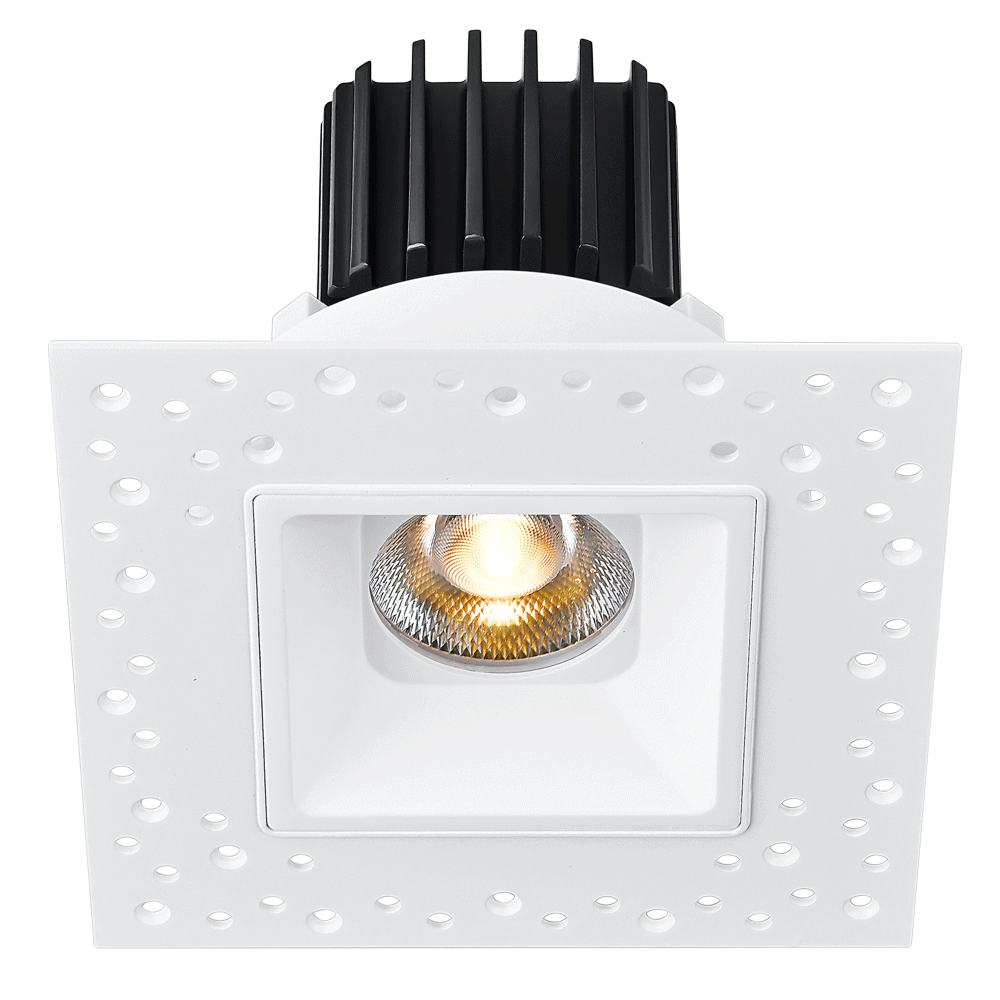

Tangra 3" Fixed Square Recessed Invisible White Trim Lens White 50° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-SRI-WH-LW50-1895
Trim Type: Invisible White Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin to 1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 95

See More Spec

$128.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SRI-WH-LW50-1895

This fixed recessed fixture delivers uniform, glare-controlled illumination and is powered by a 120–347V 0–10V dimmable commercial-grade driver designed to accommodate a wide range of supply voltages and standardized commercial control systems. Engineered for dependable operation in demanding, continuous-use environments, the driver provides smooth, stable dimming and consistent light output across varied installations. Tangra’s compact form factor and minimal ceiling presence make it ideal for offices, retail environments, hospitality spaces, corridors, and other commercial interiors where system compatibility, lighting control, and long-term reliability are critical.

Specification Document

Product's Page

Product Identity

Brand Lotus LED Lights
Item number L3F-SRI-WH-LW50-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 3000 Kelvin to 1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 50 Degree
Trim Type Invisible White Trim
Applications Ambient / General Lighting Reduced Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Recessed Invisible White Trim Lens White 50° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
