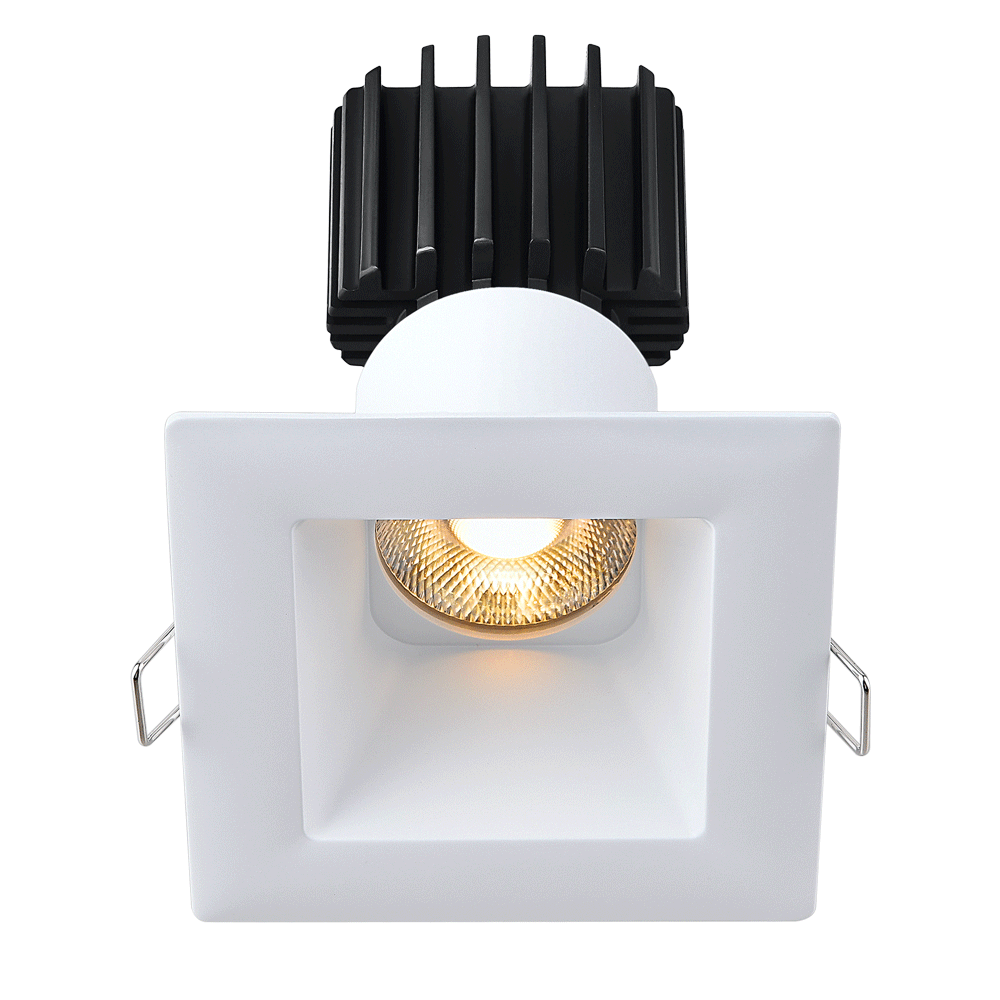

Tangra 3" Fixed Square Deep Regressed Wide White Trim Reflector Semi-frosted glass 20° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-SDW-WH-RS20-1895
Trim Type: Wide White Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000-1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Semi-frosted glass
CRI: 95

See More Spec

$117.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SDW-WH-RS20-1895

Powered by a robust 120–347V universal voltage commercial driver, this fixture integrates seamlessly into a wide range of commercial electrical infrastructures. The built-in 0–10V dimming capability ensures smooth, flicker-free dimming performance with precise light level control, supporting modern lighting control systems and energy management strategies.
Engineered for durability and long-term reliability, the commercial-grade driver delivers consistent output, thermal stability, and dependable performance in offices, retail spaces, hospitality settings, and institutional environments.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SDW-WH-RS20-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 3000-1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 20 Degree
Trim Type Wide White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Deep Regressed Wide White Trim Reflector Semi-frosted glass 20° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
