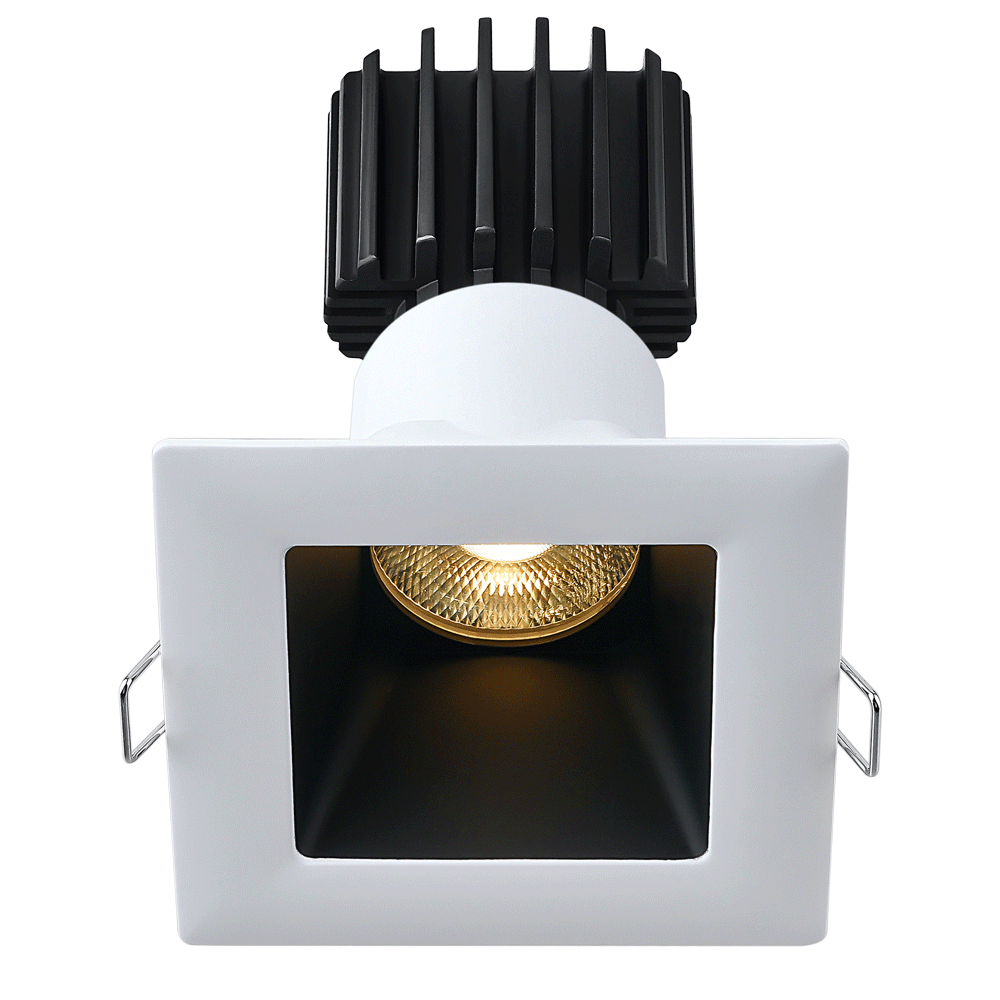

Tangra 3" Fixed Square Deep Regressed Wide White-Black Duo Trim Lens Black 24° 30K CRI98 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3F-SDW-WB-LB24-3K98
Trim Type: Wide White-Black Duo Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3000 Kelvin
Lens/Glass Color: Lens Black
CRI: 98
Beam Angle: 24 Degree

See More Spec

$117.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SDW-WB-LB24-3K98

Powered by a robust 120–347V universal voltage residential driver, this fixture is engineered for broad electrical compatibility across residential and mixed-use applications. The integrated 0–10V dimming system delivers smooth, stable, and flicker-free performance, ensuring precise light level control and seamless integration with standard dimming and lighting control platforms.
Designed specifically for residential environments, the driver provides quiet operation, reliable output consistency, and long-term performance, while maintaining the efficiency and flexibility typically associated with commercial-grade systems. Paired with a bold square wide trim, the fixture offers a clean architectural presence ideal for modern living spaces, kitchens, corridors, and boutique-style interiors.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SDW-WB-LB24-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens Black

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 24 Degree
Trim Type Wide White-Black Duo Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Deep Regressed Wide White-Black Duo Trim Lens Black 24° 30K CRI98 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
