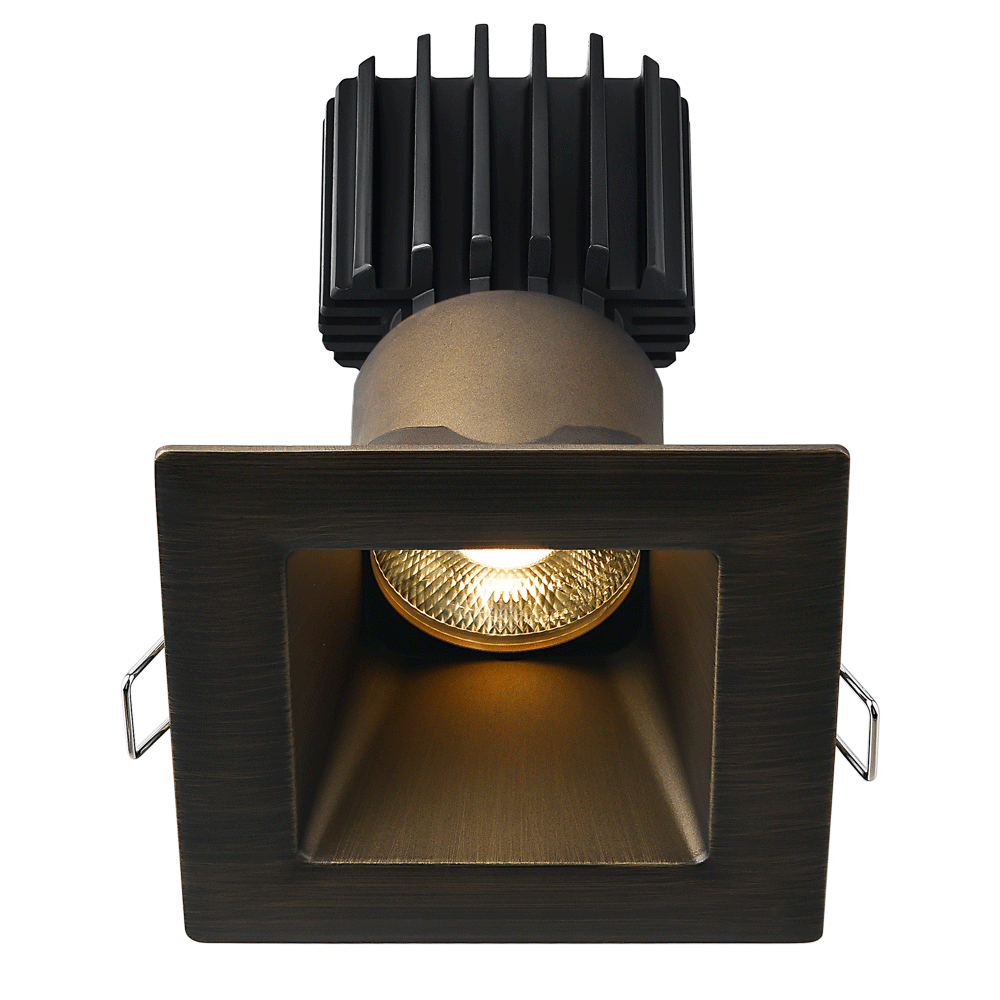

Tangra 3" Fixed Square Deep Regressed Wide Bronze Trim Lens Black 24° DTW 30K to 18K CRI95 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-SDW-BR-LB24-1895
Trim Type: Wide Bronze Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000-1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens Black
CRI: 95

See More Spec

$117.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SDW-BR-LB24-1895

The defined square aperture and wide trim profile create a bold architectural statement while maintaining clean ceiling integration. Engineered with a 120V commercial-grade driver, Tangra provides stable output, long-term reliability, and consistent performance across high-traffic and high-use environments including retail, hospitality, office, and multi-family developments.
Designed for efficient integration into commercial new construction and retrofit projects, Tangra delivers specification-level performance, architectural presence, and dependable operation in a compact 3" platform.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SDW-BR-LB24-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens Black

Light Output & Performance

Color Temperature 3000-1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 24 Degree
Trim Type Wide Bronze Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Deep Regressed Wide Bronze Trim Lens Black 24° DTW 30K to 18K CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
