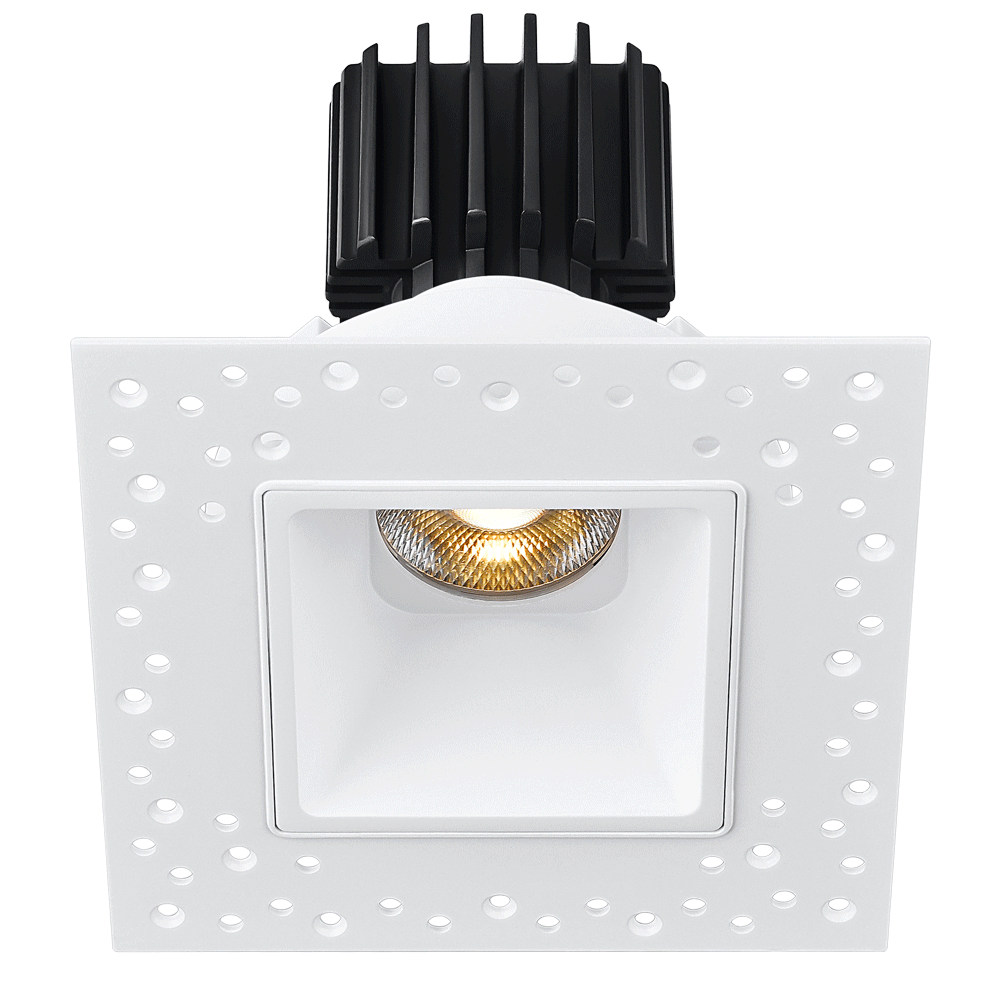

Tangra 3" Fixed Square Deep Regressed Invisible White Trim Lens White 50° DTW 30K to 18K CRI95 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-SDI-WH-LW50-1895
Trim Type: Invisible White Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000-1800 Kelvin
Lens/Glass Color: Lens White
CRI: 95
Beam Angle: 50 Degree

See More Spec

$131.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SDI-WH-LW50-1895

Powered by a commercial-grade 120V constant-voltage driver engineered for high-demand applications, this fixture delivers stable performance, consistent output, and long-term reliability in mission-critical environments. Designed to meet the rigorous standards of retail, hospitality, office, and large-scale residential projects, it ensures dependable operation under continuous use.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SDI-WH-LW50-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 3000-1800 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 50 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Deep Regressed Invisible White Trim Lens White 50° DTW 30K to 18K CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
