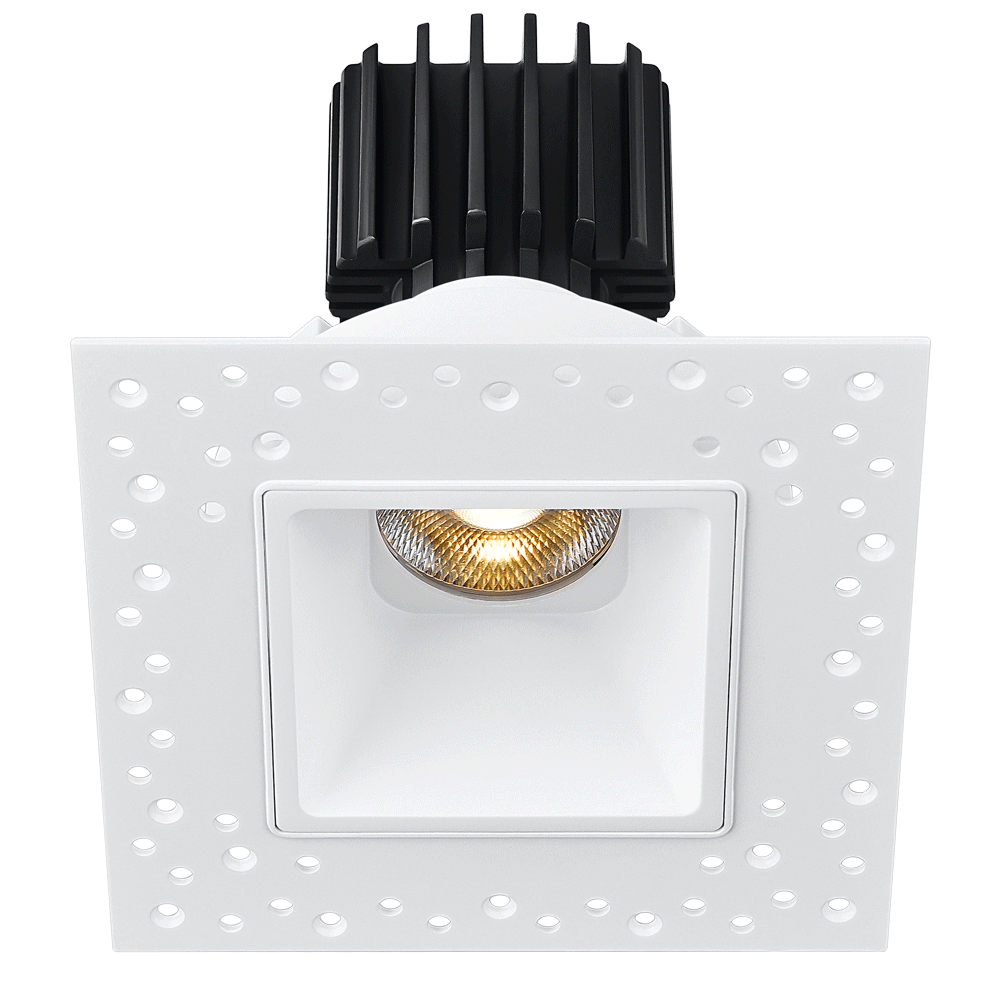

Tangra 3" Fixed Square Deep Regressed Invisible White Trim Lens White 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-SDI-WH-LW24-1895
Trim Type: Invisible White Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000-1800 Kelvin
Lens/Glass Color: Lens White
CRI: 95
Beam Angle: 24 Degree

See More Spec

$131.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-SDI-WH-LW24-1895

Powered by a robust 120–347V 0–10V dimmable commercial driver, Tangra offers wide voltage compatibility and reliable performance in demanding applications. The smooth, flicker-free dimming capability integrates easily with commercial lighting control systems, making it well-suited for new construction and retrofit projects alike.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-SDI-WH-LW24-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 3000-1800 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 24 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Square

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Square Deep Regressed Invisible White Trim Lens White 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
