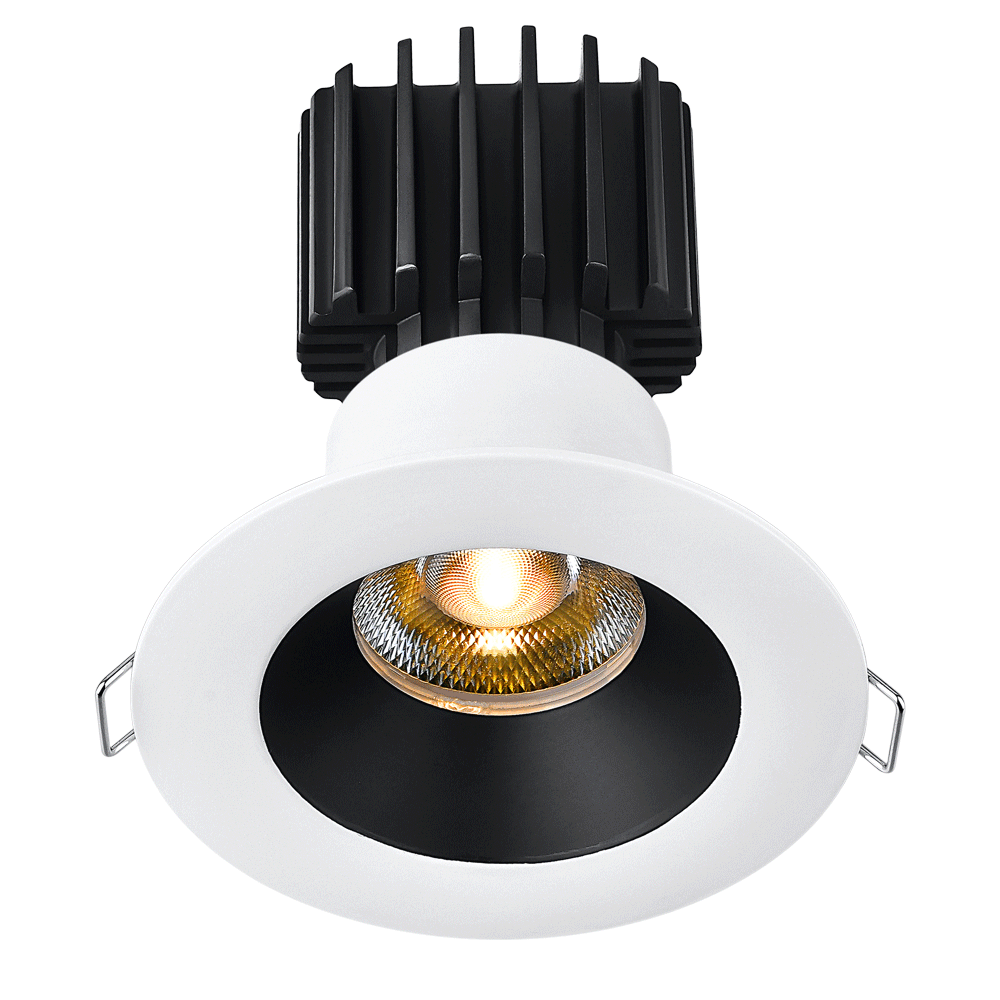

Tangra 3" Fixed Round Recessed Wide White-Black Duo Trim Lens Black 36° 30K CRI95 with 120V Residential Driver

Tangra 3" Fixed Round Recessed Wide White-Black Duo Trim Lens Black 36° 30K CRI95 with 120V Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RRW-WB-LB36-3K95
Trim Type: White-Black Duo Reflector
Driver: 120V Triac Dimmable Residential
Color Temperature: 3000 Kelvin
Lens/Glass Color: Black Lens
CRI: 95
Beam Angle: 36 Degree

See More Spec

$107.80

BUY BULK & SAVE!

Model: L3F-RRW-WB-LB36-3K95

Made in Canada and features a solid cast aluminum body, refined finishes, advanced optics, and ultra-high CRI LEDs
Modular design allows for unmatched customization options, ensuring ultimate performance for any application
c ETL us, Type IC, Air Tight, Open Plenum, Wet Location

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRW-WB-LB36-3K95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Lens/Glass Color Black Lens

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 36 Degree
Trim Type White-Black Duo Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location/ IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Included

Driver 120V Triac Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Wide White-Black Duo Trim Lens Black 36° 30K CRI95 with 120V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
