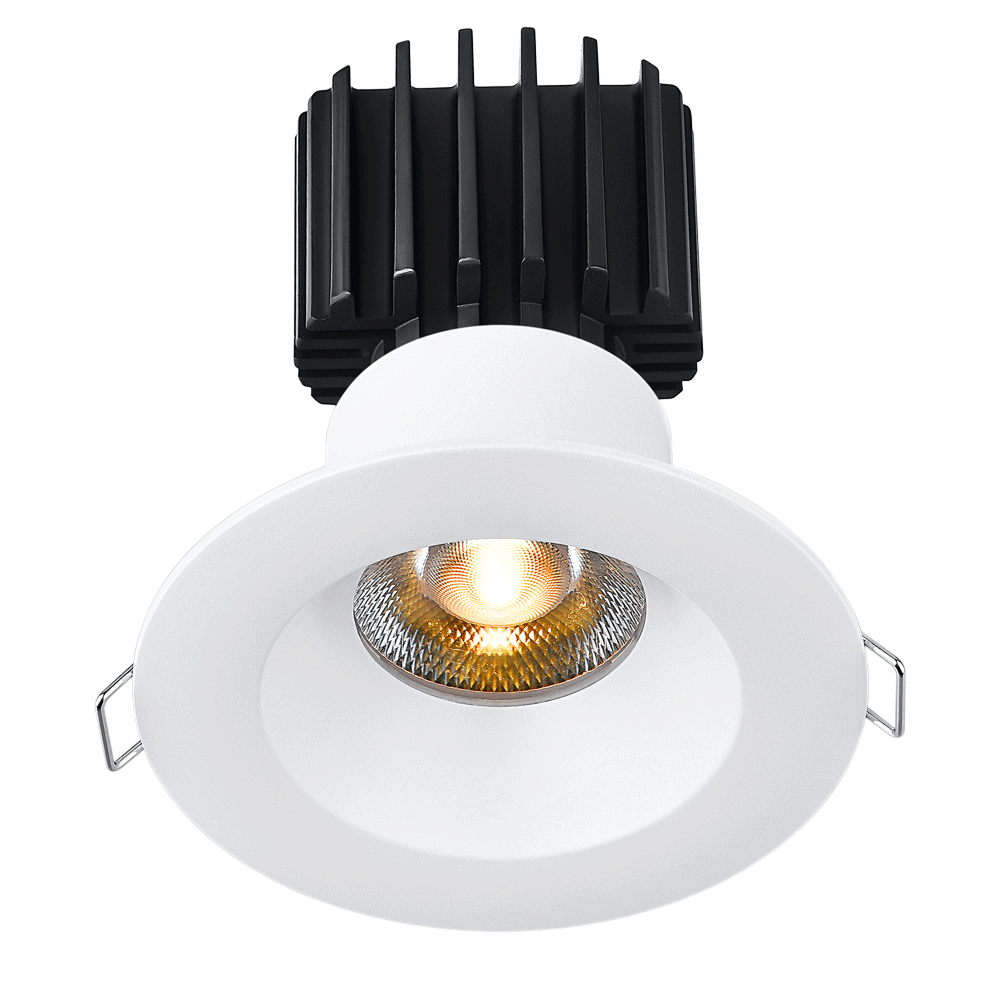

Tangra 3" Fixed Round Recessed Wide Alzak Trim Reflector Clear glass 36° 5CCT CRI95 with 120V Commercial Driver

Tangra 3" Fixed Round Recessed Wide Alzak Trim Reflector Clear glass 36° 5CCT CRI95 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RRW-AZ-RC36-5C95
Trim Type: Alzak Trim Reflector
Driver: 120V Triac Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear glass
CRI: 95

See More Spec

$107.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RRW-AZ-RC36-5C95

Powered by a 120V commercial driver, the Tangra 3" Fixed Round Deep Regressed Downlight features a sleek, architectural design with excellent glare control for modern commercial environments. It offers straightforward installation and reliable performance in a wide range of standard commercial applications. This downlight is ideal for offices, retail spaces, hospitality areas, corridors, and conference rooms.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRW-AZ-RC36-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 36 Degree
Trim Type Alzak Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location/ IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Wide Alzak Trim Reflector Clear glass 36° 5CCT CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
