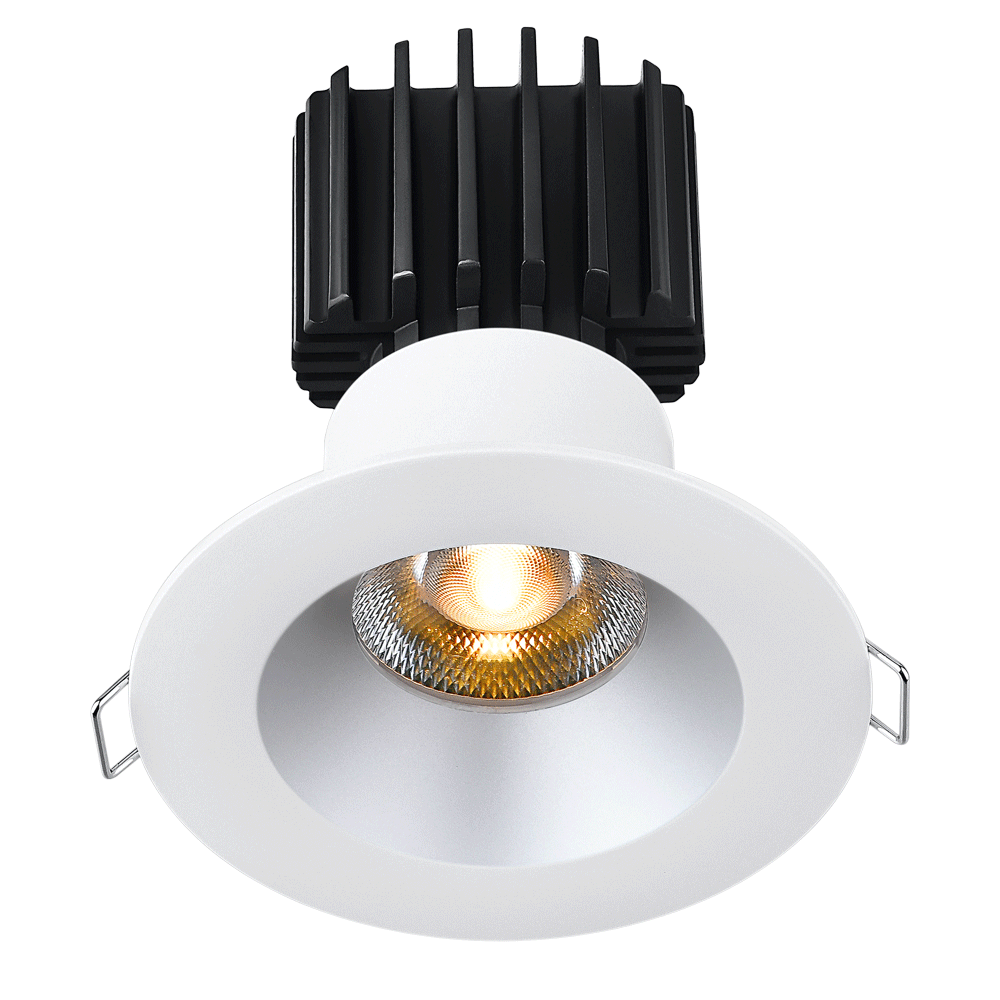

Tangra 3" Fixed Round Recessed Wide Alzak Trim Reflector Clear glass 20° 5CCT CRI98 with 120-347V 0-10V Residential Driver

Tangra 3" Fixed Round Recessed Wide Alzak Trim Reflector Clear glass 20° 5CCT CRI98 with 120-347V 0-10V Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RRW-AZ-RC20-5C98
Trim Type: Alzak Trim Reflector
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear glass
CRI: 98

See More Spec

$107.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RRW-AZ-RC20-5C98

Powered by a 120–347V 0–10V dimmable residential driver, the Tangra 3" Fixed Round Deep Regressed Downlight features a clean, modern design with excellent glare control for comfortable everyday lighting. Designed for easy installation and dependable performance, it delivers smooth, flicker-free dimming to create the right ambiance in any space. This downlight is ideal for living areas, kitchens, hallways, bedrooms, and multi-family residential applications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRW-AZ-RC20-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 20 Degree
Trim Type Alzak Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location/ IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Wide Alzak Trim Reflector Clear glass 20° 5CCT CRI98 with 120-347V 0-10V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
