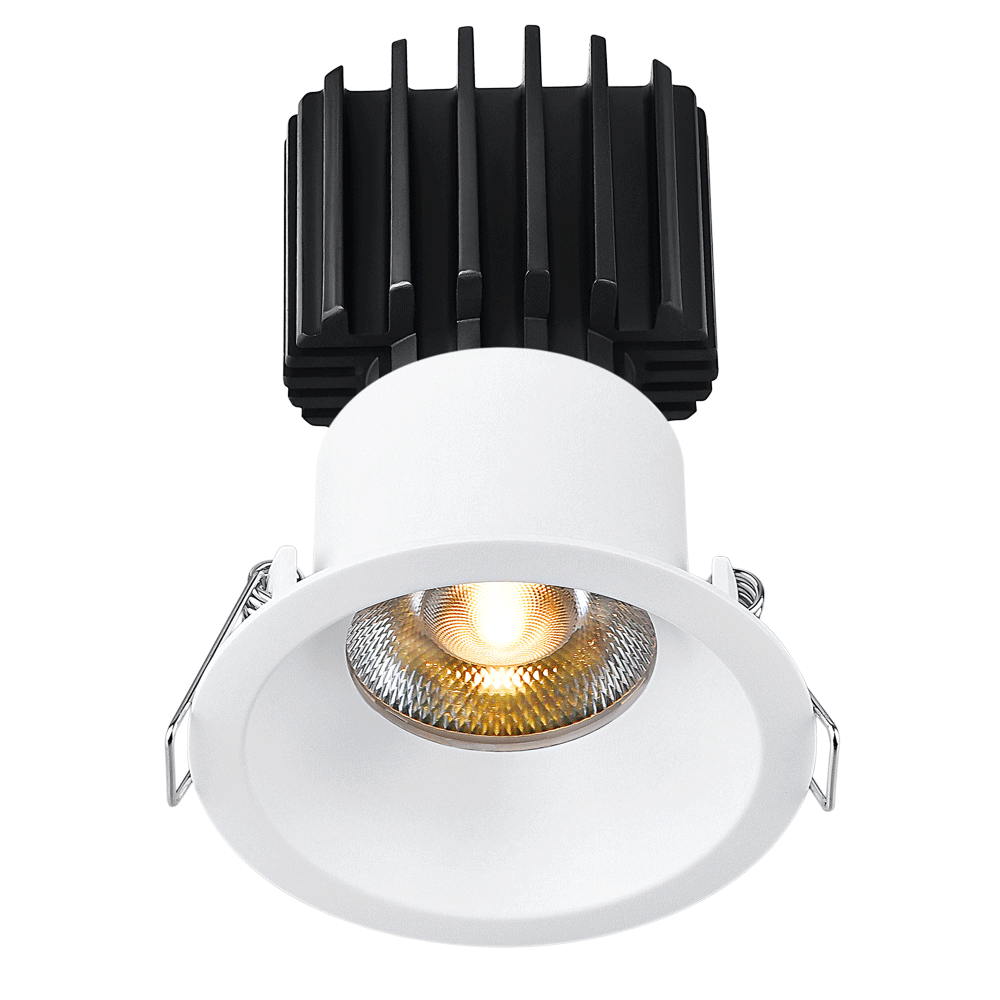

Tangra 3" Fixed Round Recessed Thin White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V-0-10V-Dimmable Residential Driver

Tangra 3" Fixed Round Recessed Thin White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V-0-10V-Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RRT-WH-RC36-4C90
Trim Type: White Trim Reflector
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Clear glass
CRI: 90

See More Spec

$107.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RRT-WH-RC36-4C90

Powered by a versatile 120–347V line-voltage driver, the Tangra 3" Fixed Round Deep Regressed Downlight delivers a clean, refined look with excellent glare control for everyday living spaces. Its deep regressed design provides comfortable, focused illumination while maintaining a subtle, architectural presence in the ceiling. Designed for consistent performance and easy installation, it integrates effortlessly into standard ceiling systems. Ideal for residential interiors such as living areas, kitchens, hallways, bedrooms, and multi-unit residences, this downlight offers dependable lighting that enhances comfort, ambiance, and overall design continuity.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRT-WH-RC36-4C90
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Clear glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
CRI 90
Beam Angle 36 Degree
Trim Type White Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Thin White Trim Reflector Clear glass 36° 4CCT+DTW 35K to 27K CRI90 with 120-347V-0-10V-Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
