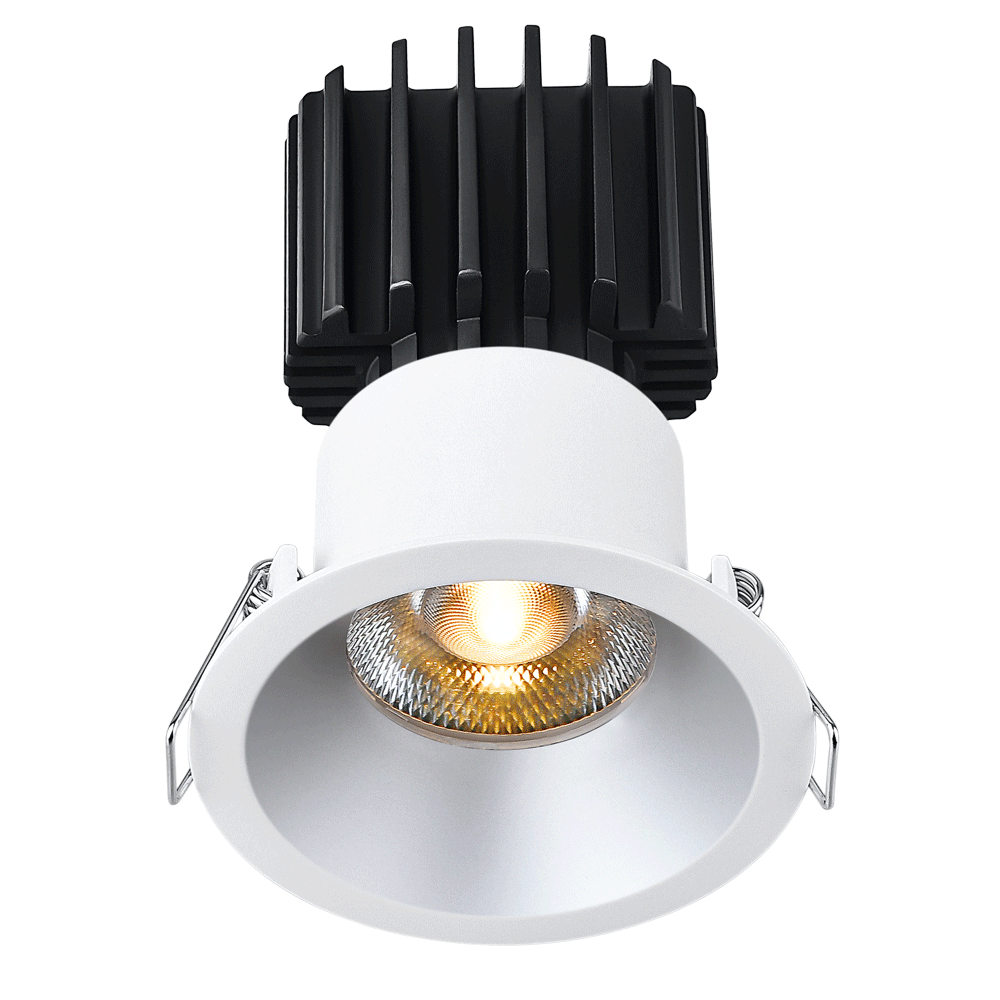

Tangra 3" Fixed Round Recessed Thin Alzak Trim Reflector Frosted glass 60° DTW 30K to 18K CRI95 with 120V Commercial Driver
- Brand: Lotus LED Lights
- Item Number: L3F-RRT-AZ-RF60-1895
- Trim Type: Thin Alzak Trim
- Driver: 120V Triac Dimmable Commercial
- Color Temperature: 3000 Kelvin to 1800 Kelvin
- Lens/Glass Color: Frosted glass
- CRI: 95
- Beam Angle: 60 Degree
Powered by a 120V line-voltage driver, the Tangra 3" Fixed Round Deep Regressed Downlight offers a refined architectural appearance with excellent glare control, making it suitable for a wide range of commercial applications. Engineered for consistent performance and ease of installation, it integrates seamlessly into standard ceiling systems. Ideal for use in offices, retail environments, hospitality spaces, corridors, and multi-unit developments, this downlight delivers reliable illumination while maintaining visual comfort and design continuity.
Specification Document
Download Full Datasheet
- Brand Lotus LED Lights
- Item Number L3F-RRT-AZ-RF60-1895
- Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years
- Voltage 120 Volt
- Driver 120V Triac Dimmable Commercial
- Power 11W / 15W user selectable with Lotus Tangra drivers
- Fixture input 20-40V DC Max 350 mA Constant Current
- Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
- J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
- Temperature -40°F (-40°C) to +113°F (+45°C)
- Downlight Size 3 Inch
- Lens/Glass Color Frosted glass
- Color Temperature 3000 Kelvin to 1800 Kelvin
- CRI 95
- Beam Angle 60 Degree
- Trim Type Thin Alzak Trim
- Projected Life 70% Light Output at 50000 Hours
- Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look
- Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
- Wet Location Yes
- Safety Rating Air Tight
- Compliance FCC
- Shape Round
- Driver 120V Triac Dimmable Commercial
Warranty
Manufacturer Warranty Information
Tangra 3" Fixed Round Recessed Thin Alzak Trim Reflector Frosted glass 60° DTW 30K to 18K CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
