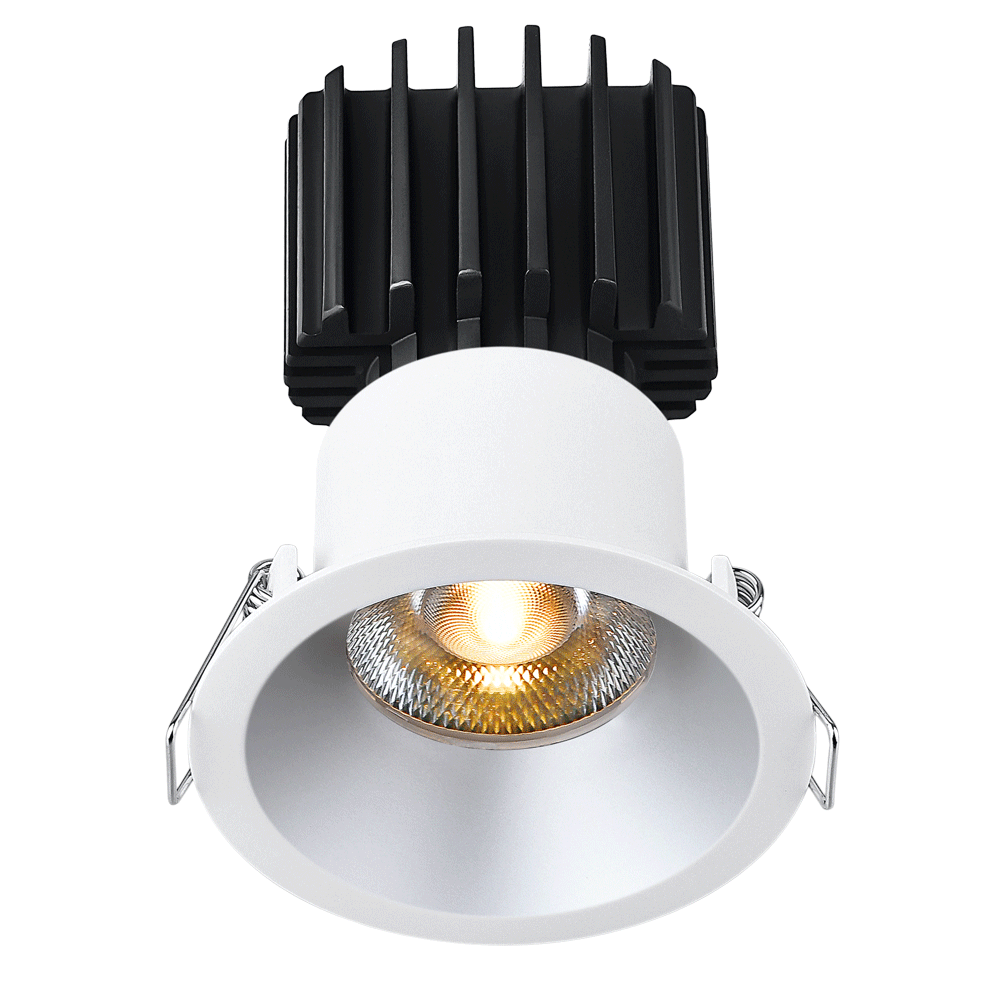

Tangra 3" Fixed Round Recessed Thin Alzak Trim Reflector Frosted glass 60° 5CCT CRI98 with 120V Commercial Driver

Tangra 3" Fixed Round Recessed Thin Alzak Trim Reflector Frosted glass 60° 5CCT CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item Number: L3F-RRT-AZ-RF60-5C98
Trim Type: Thin Alzak Trim
Driver: 120V Triac Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Lens/Glass Color: Frosted glass
CRI: 98
Beam Angle: 60 Degree

See More Spec

$107.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Powered by a 120V line-voltage driver, the Tangra 3" Fixed Round Deep Regressed Downlight offers a refined architectural appearance with excellent glare control, making it suitable for a wide range of commercial applications. Engineered for consistent performance and ease of installation, it integrates seamlessly into standard ceiling systems. Ideal for use in offices, retail environments, hospitality spaces, corridors, and multi-unit developments, this downlight delivers reliable illumination while maintaining visual comfort and design continuity.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3F-RRT-AZ-RF60-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
CRI 98
Beam Angle 60 Degree
Trim Type Thin Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Thin Alzak Trim Reflector Frosted glass 60° 5CCT CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
