Tangra 3" Fixed Round Recessed Thin Alzak Trim Lens White 50° 5CCT CRI95 with 120-347V-0-10V-Dimmable Commercial Driver

Tangra 3" Fixed Round Recessed Thin Alzak Trim Lens White 50° 5CCT CRI95 with 120-347V-0-10V-Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RRT-AZ-LW50-5C95
Trim Type: Thin Alzak Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 95

See More Spec

$107.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RRT-AZ-LW50-5C95

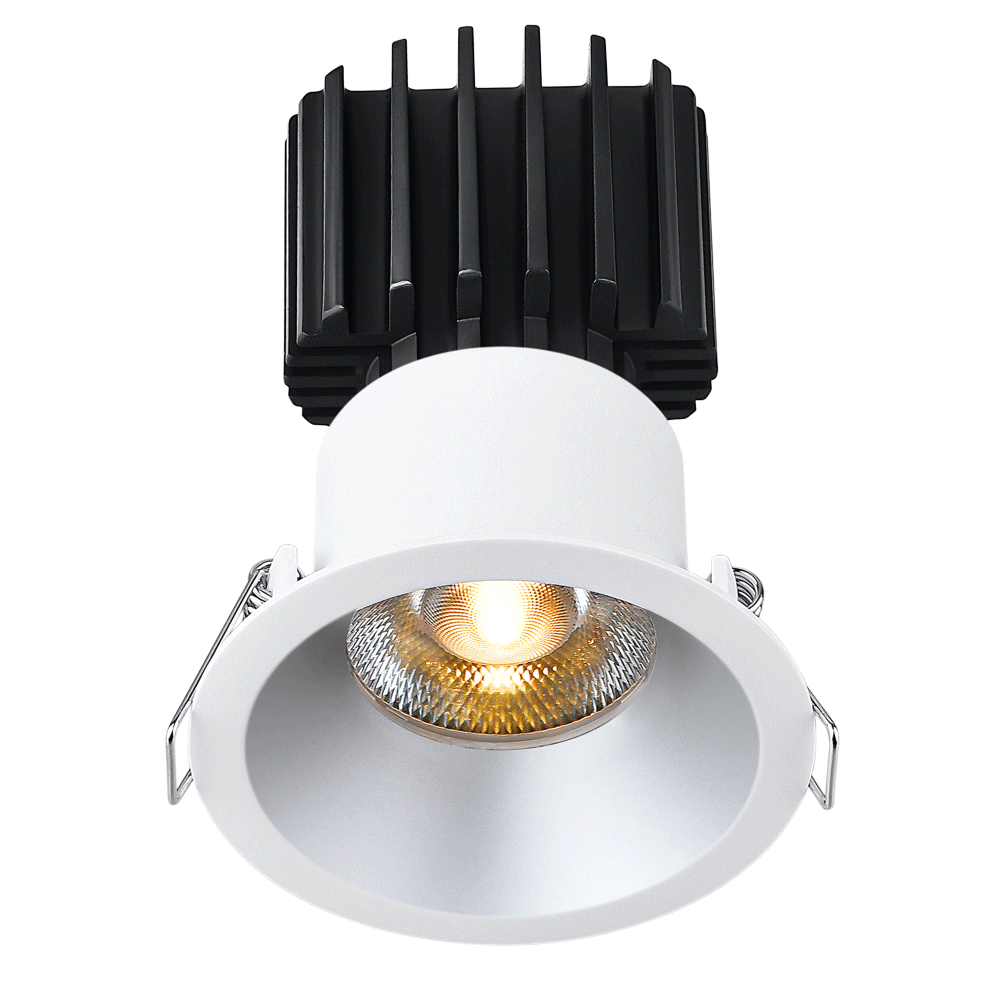

Tangra 3" Fixed Round Recessed LED Downlight is a compact, high-efficiency lighting solution designed for demanding commercial environments. Equipped with a commercial-grade 120–347 V universal input driver and 0–10 V dimming, Tangra ensures smooth, flicker-free dimming and reliable performance across a wide range of electrical systems.

The fixed optic provides clean, consistent illumination with excellent uniformity and glare control, making it ideal for offices, retail spaces, hospitality areas, corridors, and institutional applications. Its low-profile 3" aperture delivers a modern architectural appearance while maintaining high lumen output and energy efficiency. Built with durable materials and long-life LED technology, Tangra minimizes maintenance and supports long-term operational savings.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRT-AZ-LW50-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
CRI 95
Beam Angle 50 Degree
Trim Type Thin Alzak Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Near-Trimless Look

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Thin Alzak Trim Lens White 50° 5CCT CRI95 with 120-347V-0-10V-Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
