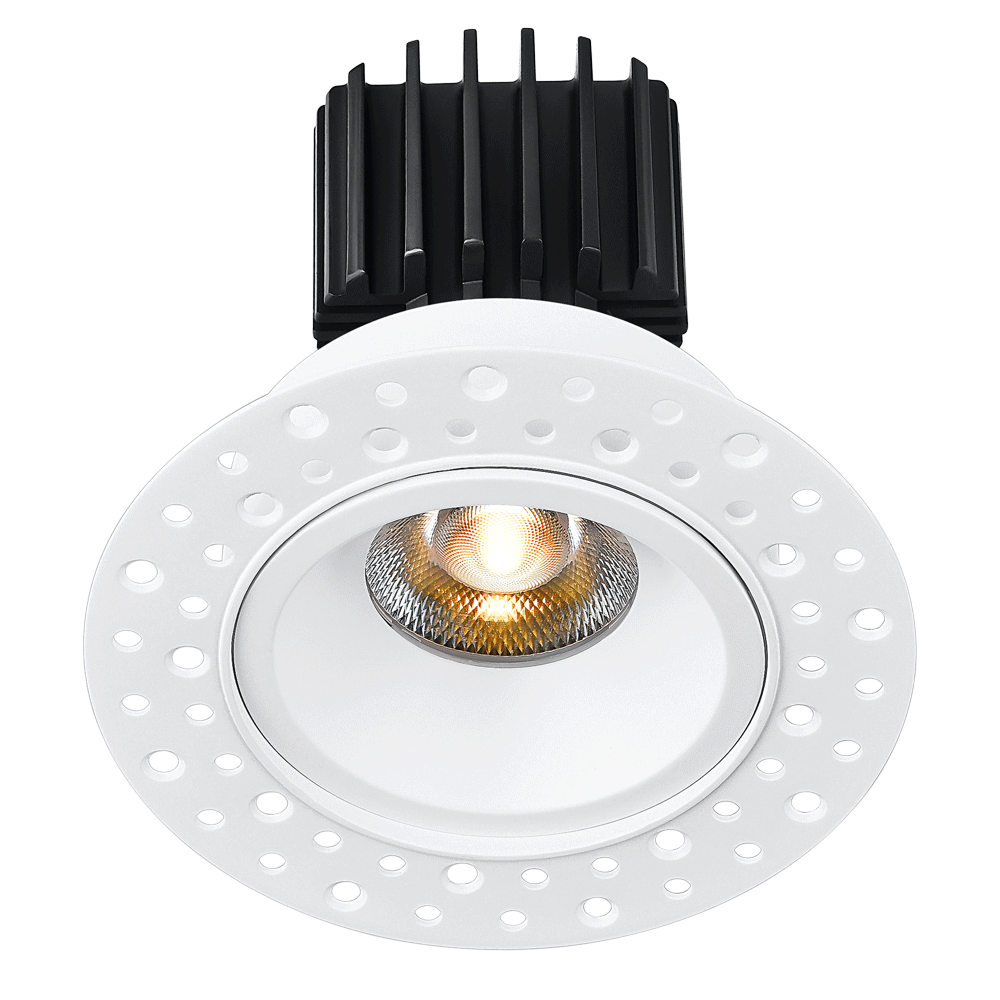

Tangra 3" Fixed Round Recessed Invisible White Trim Reflector Frosted glass 60° 5CCT CRI98 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item Number: L3F-RRI-WH-RF60-5C98
Trim Type: Invisible White Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3500 Kelvin to 2700 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Frosted glass
CRI: 98

See More Spec

$121.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

The Tangra 3" Fixed Round Recessed Downlight is designed to bring comfortable, everyday lighting to residential spaces. With a clean, low-profile round trim, it blends seamlessly into ceilings for a modern, finished look. The 120–347V input and smooth 0–10V residential dimmable driver allow for easy integration and gentle light control, creating the right ambiance for any room. Ideal for homes, condos, and multi-residential applications where reliable, efficient lighting is essential.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item Number L3F-RRI-WH-RF60-5C98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Frosted glass

Light Output & Performance

Color Temperature 3500 Kelvin to 2700 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 60 Degree
Trim Type Invisible White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Reduced Glare - Trimless Installation

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Invisible White Trim Reflector Frosted glass 60° 5CCT CRI98 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
