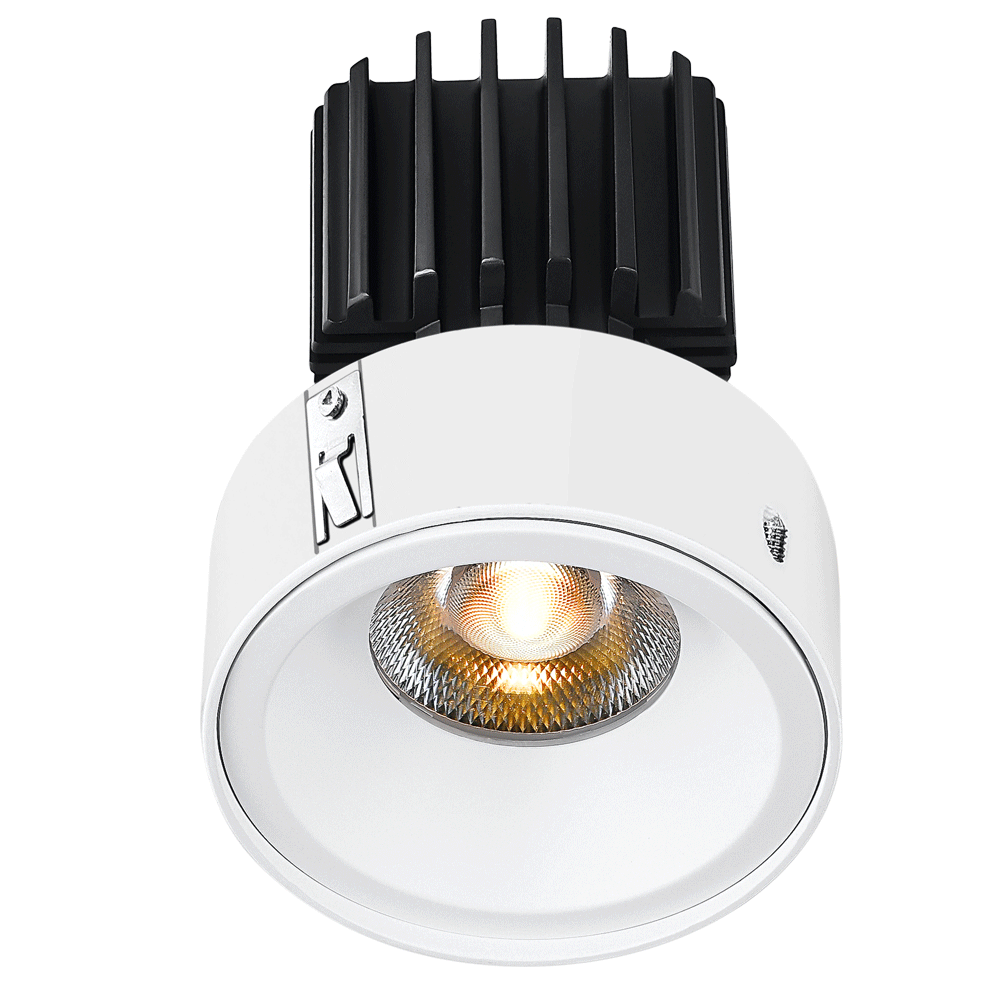

Tangra 3" Fixed Round Recessed Invisible Flangeless White Trim Lens White 50° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RRF-WH-LW50-1895
Trim Type: Invisible Flangeless White Trim
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 3000 Kelvin to 1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 95

See More Spec

$128.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RRF-WH-LW50-1895

The Tangra 3" Fixed Round Recessed delivers clean, focused illumination in a compact, modern design for residential and light commercial spaces. Its fixed, glare-controlled optic provides smooth, consistent light output, ideal for kitchens, hallways, living areas, and accent lighting.
Equipped with an integrated 120–347V 0–10V dimmable driver, the Tangra connects directly to line voltage and offers smooth, flicker-free dimming across a wide voltage range. The all-in-one design eliminates the need for a remote driver, simplifying installation while delivering reliable, energy-efficient performance in both new construction and remodel applications.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRF-WH-LW50-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 3000 Kelvin to 1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 50 Degree
Trim Type Invisible Flangeless White Trim
Projected Life 70% Light Output at 50000 Hours
Applications Millwork & Wood Ceiling - Reduced Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Invisible Flangeless White Trim Lens White 50° DTW 30K to 18K CRI95 with 120-347V 0-10V Dimmable Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
