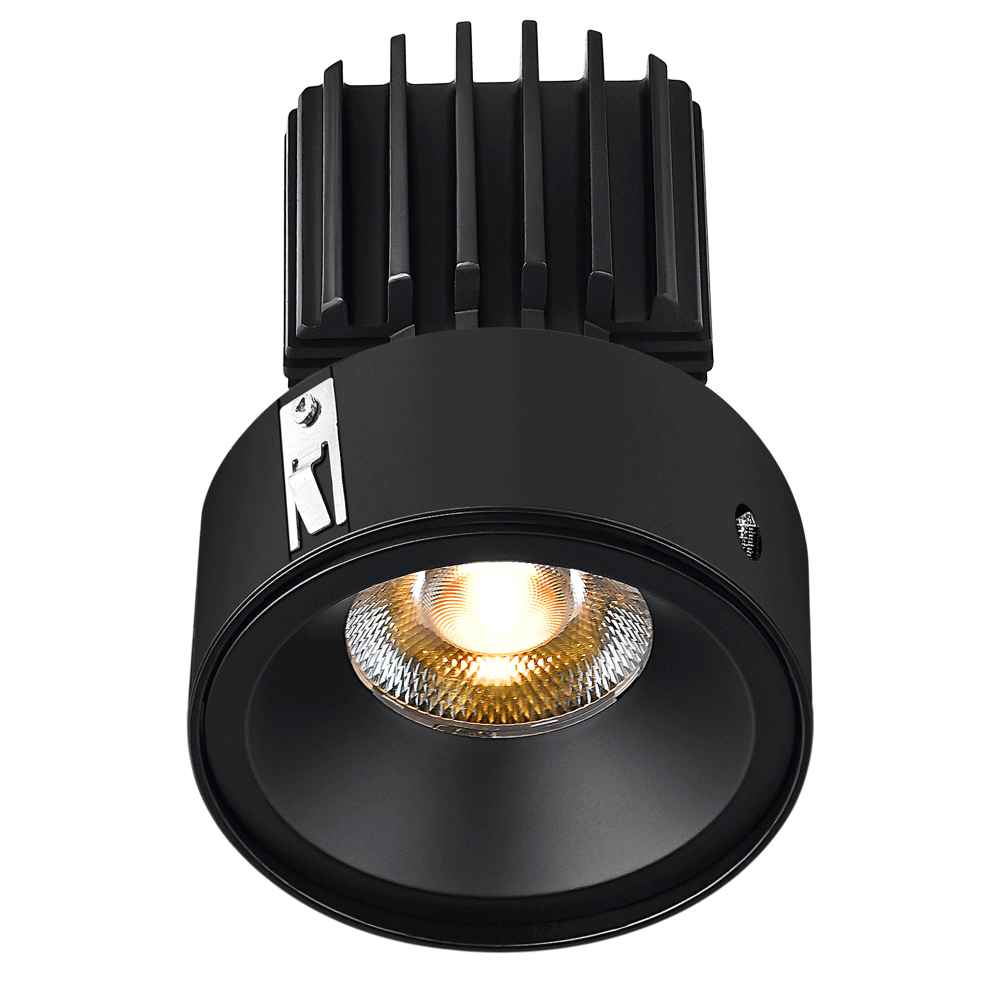

Tangra 3" Fixed Round Recessed Invisible Flangeless Black Trim Lens Black 50° 30K CRI95 with 120-347V 0-10V Dimmable Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RRF-BK-LB50-3K95
Trim Type: Invisible Flangeless Black Trim
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: Lens Black
CRI: 95
Beam Angle: 50 Degree

See More Spec

$128.80

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RRF-BK-LB50-3K95

The Tangra 3" Fixed Round Recessed delivers clean, controlled illumination in a compact architectural design for commercial and mixed-use applications. Its fixed, glare-controlled optic provides consistent light output for offices, corridors, retail, hospitality, and accent lighting.
Equipped with an integrated 120–347V 0–10V dimmable commercial driver, the Tangra supports direct line-voltage connection and seamless compatibility with standard 0–10V control systems. The high-voltage, all-in-one driver design enables smooth, flicker-free dimming while simplifying installation and delivering reliable, energy-efficient performance for new construction and retrofit projects.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RRF-BK-LB50-3K95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens Black

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 50 Degree
Trim Type Invisible Flangeless Black Trim
Projected Life 70% Light Output at 50000 Hours
Applications Millwork & Wood Ceiling - Reduced Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Recessed Invisible Flangeless Black Trim Lens Black 50° 30K CRI95 with 120-347V 0-10V Dimmable Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
