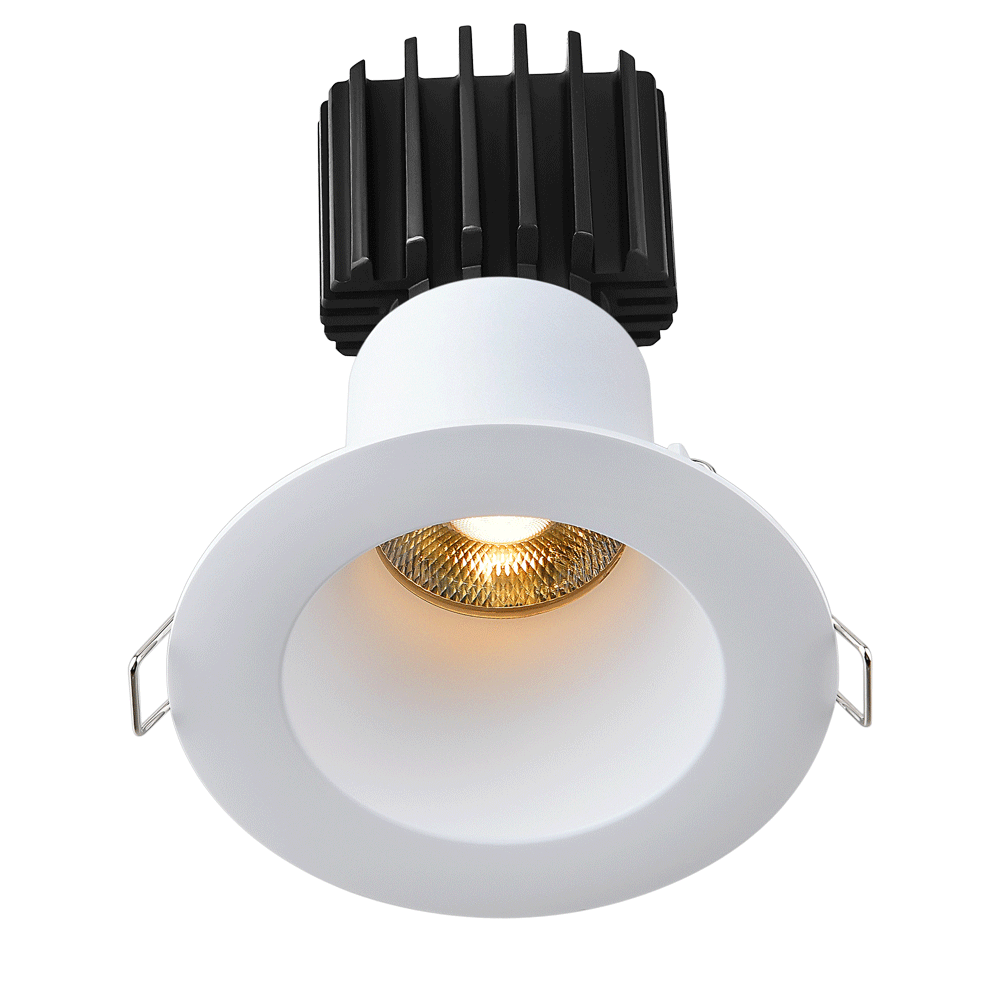

Tangra 3" Fixed Round Deep Regressed Wide White Trim Lens White 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Commercial Driver

Tangra 3" Fixed Round Deep Regressed Wide White Trim Lens White 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RDW-WH-LW24-1895
Trim Type: White Trim Reflector
Driver: 120-347V 0-10V Dimmable Commercial
Color Temperature: 3000 Kelvin to 1800 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Lens White
CRI: 95

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDW-WH-LW24-1895

The Tangra 3” Fixed Round Deep Regressed LED Downlight is designed for demanding commercial environments, delivering superior visual comfort and consistent performance. Featuring deep regressed optics to minimize glare, this fixture is equipped with a wide-range 120–347V commercial-grade driver and smooth 0–10V dimming for flexible lighting control. Ideal for offices, retail spaces, hospitality, and other professional applications requiring reliability, efficiency, and clean architectural aesthetics.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDW-WH-LW24-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Lens White

Light Output & Performance

Color Temperature 3000 Kelvin to 1800 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 24 Degree
Trim Type White Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Included

Driver 120-347V 0-10V Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Wide White Trim Lens White 24° DTW 30K to 18K CRI95 with 120-347V 0-10V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
