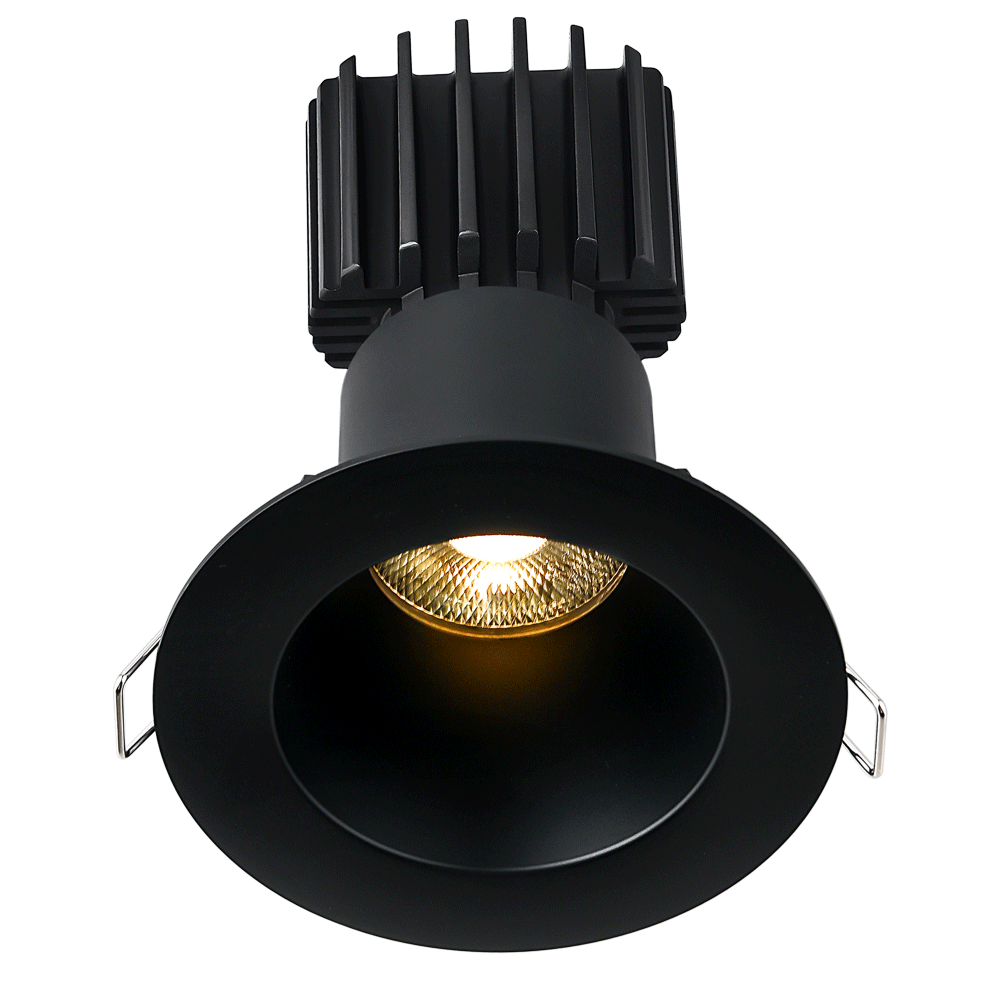

Tangra 3" Fixed Round Deep Regressed Wide Black Trim Reflector Semi-frosted glass 20° 5CCT CRI95 with 120-347V 0-10V Residential Driver

Tangra 3" Fixed Round Deep Regressed Wide Black Trim Reflector Semi-frosted glass 20° 5CCT CRI95 with 120-347V 0-10V Residential Driver

Brand: Lotus LED Lights
Item number: L3F-RDW-BK-RS20-5C95
Trim Type: Black Trim Reflector
Driver: 120-347V 0-10V Dimmable Residential
Color Temperature: 2700/3000/3500/4000/5000 Kelvin
Bulb Color: CCT Switchable
Lens/Glass Color: Semi-frosted glass
CRI: 95

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDW-BK-RS20-5C95

Tangra 3" Fixed Round Deep Regressed LED Downlight is crafted to create a cozy, welcoming atmosphere in today’s homes. Designed with a 120–347 V, 0–10 V residential driver, it offers smooth, quiet dimming that lets homeowners easily set the right mood from bright task lighting to soft evening glow.

The deep regressed design reduces glare and produces gentle, comfortable light that feels natural in kitchens, living rooms, bedrooms, hallways, and bathrooms. With its compact 3" profile and clean round trim, Tangra blends seamlessly into ceilings, adding a refined touch while delivering energy-efficient, long-lasting performance homeowners can rely on.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDW-BK-RS20-5C95
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120-347 Volt
Driver 120-347V 0-10V Dimmable Residential
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Color Temperature 2700/3000/3500/4000/5000 Kelvin
Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 20 Degree
Trim Type Black Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Included

Driver 120-347V 0-10V Dimmable Residential

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Wide Black Trim Reflector Semi-frosted glass 20° 5CCT CRI95 with 120-347V 0-10V Residential Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
