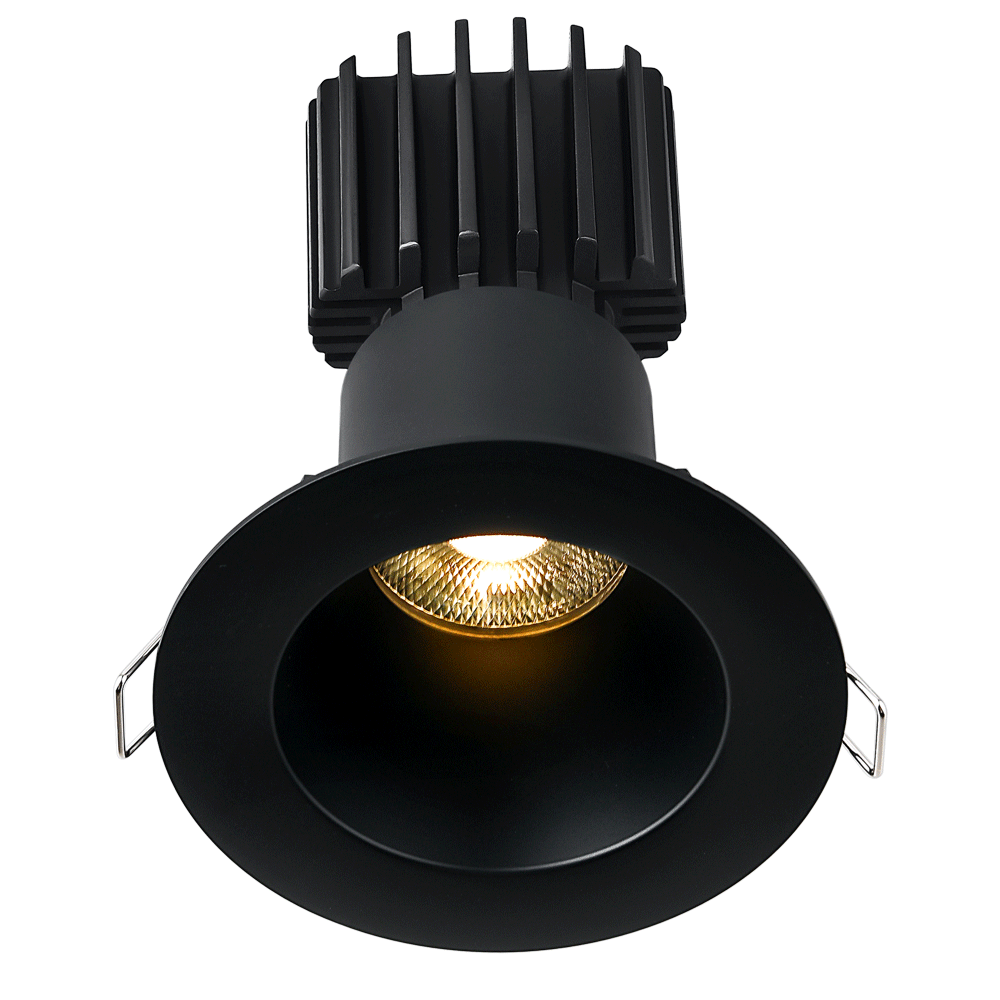

Tangra 3" Fixed Round Deep Regressed Wide Black Trim Lens Black 36° 30K CRI98 with 120V Commercial Driver

Tangra 3" Fixed Round Deep Regressed Wide Black Trim Lens Black 36° 30K CRI98 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RDW-BK-LB36-3K98
Trim Type: Black Trim Reflector
Driver: 120V Triac Dimmable Commercial
Color Temperature: 3000 Kelvin
Lens/Glass Color: White Lens
CRI: 98
Beam Angle: 36 Degree

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDW-BK-LB36-3K98

Tangra 3" Fixed Round Deep Regressed LED Downlight delivers controlled, high-quality illumination for multi-family and light-commercial applications. Featuring a 120 V driver, it provides reliable, quiet performance ideal for residential units, corridors, lobbies, and common areas.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDW-BK-LB36-3K98
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color White Lens

Light Output & Performance

Color Temperature 3000 Kelvin
Lumen up to 1600 lm at 3000K CRI95
CRI 98
Beam Angle 36 Degree
Trim Type Black Trim Reflector
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Wide Black Trim Lens Black 36° 30K CRI98 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
