Tangra 3" Fixed Round Deep Regressed Thin White-Black Duo Trim Reflector Semi-frosted glass 20° DTW 30K to 18K CRI95 with 120V Commercial Driver

Tangra 3" Fixed Round Deep Regressed Thin White-Black Duo Trim Reflector Semi-frosted glass 20° DTW 30K to 18K CRI95 with 120V Commercial Driver

Brand: Lotus LED Lights
Item number: L3F-RDT-WB-RS20-1895
Trim Type: Thin White-Black Duo Trim
Driver: 120V Triac Dimmable Commercial
Bulb Color: CCT Switchable
Lens/Glass Color: Semi-frosted glass
CRI: 95
Beam Angle: 20 Degree

See More Spec

$110.60

Shipping: 4 to 5 business days.

BUY BULK & SAVE!

Model: L3F-RDT-WB-RS20-1895

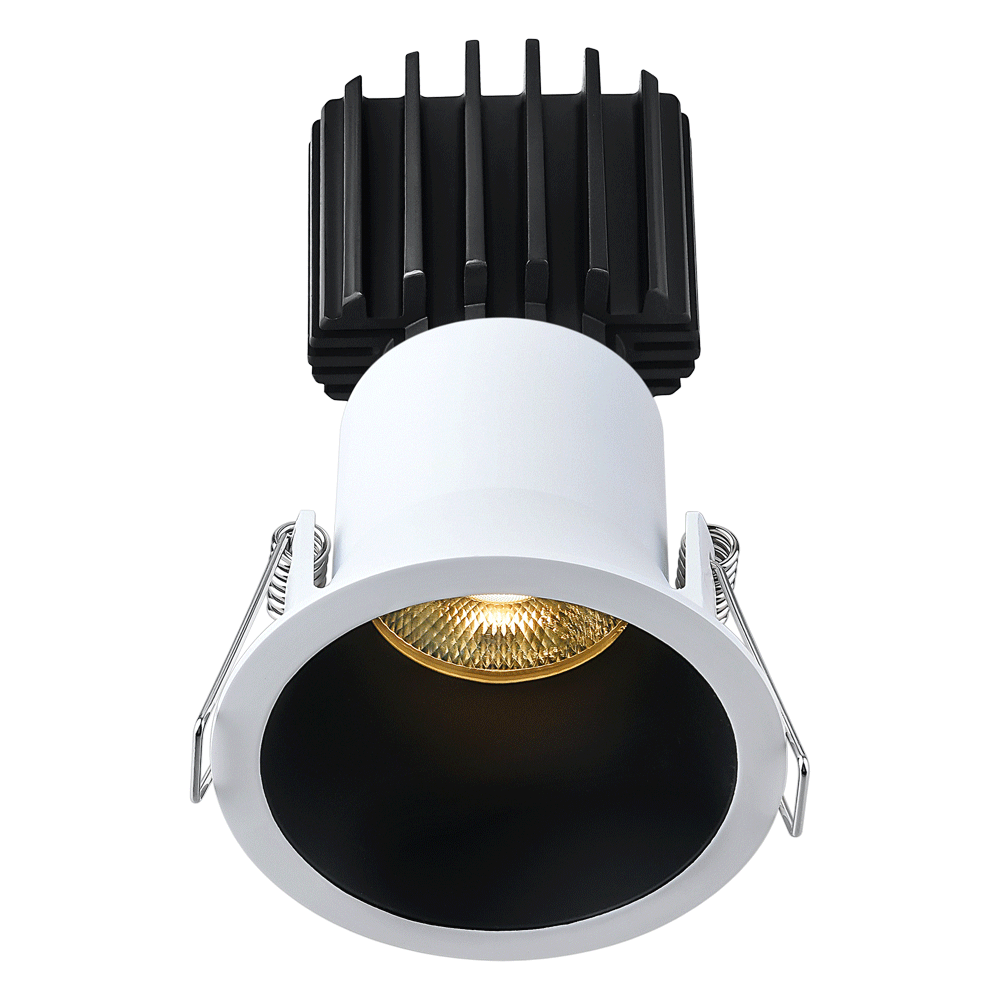

The Tangra 3" Fixed Round Deep Regressed recessed downlight is designed for commercial spaces where visual comfort and a clean ceiling appearance matter. Its deep regressed design helps minimize glare while providing focused, controlled illumination. Equipped with a 120V commercial-grade driver, this fixture delivers reliable performance for offices, retail environments, hospitality spaces, and corridors. The compact round trim and low-profile look allow it to blend seamlessly into a variety of ceiling types, offering a refined lighting solution built for consistent, everyday commercial use.

Specification Document

Product's Page

Spec Sheet

Download Full Datasheet

Product Identity

Brand Lotus LED Lights
Item number L3F-RDT-WB-RS20-1895
Lifetime Warranty Lotus warranties for as long as we manufacture this line + 5 years

Electrical

Voltage 120 Volt
Driver 120V Triac Dimmable Commercial
Power 11W / 15W user selectable with Lotus Tangra drivers
Fixture input 20-40V DC Max 350 mA Constant Current
Min Triac Dimming 3% reverse phase cut / 4% forward phase cut
J-Box Wire Volume Max 5 No 12 AWG or 8 No 14 AWG with FT6 / CMP cable
Temperature -40°F (-40°C) to +113°F (+45°C)

Size & Weight / Finish

Downlight Size 3 Inch
Lens/Glass Color Semi-frosted glass

Light Output & Performance

Bulb Color CCT Switchable
Lumen up to 1600 lm at 3000K CRI95
CRI 95
Beam Angle 20 Degree
Trim Type Thin White-Black Duo Trim
Projected Life 70% Light Output at 50000 Hours
Applications Ambient / General Lighting Minimal Glare - Near-Trimless Look
Color Templerature 3000 Kelvin to 1800 Kelvin

Certification

Certifications c ETL us/ FCC/ Type IC/ Air Tight/ Open Plenum/ Wet Location IP54
Wet Location Yes
Safety Rating Air Tight
Compliance FCC

Wireless Connection

Type

Shape Round

Included

Driver 120V Triac Dimmable Commercial

Suitable

Warranty

Manufacturer Warranty Information

Tangra 3" Fixed Round Deep Regressed Thin White-Black Duo Trim Reflector Semi-frosted glass 20° DTW 30K to 18K CRI95 with 120V Commercial Driver provides a comprehensive 5-Year Manufacturer Warranty on this product. We stand by our engineering; this product is warranted for as long.
